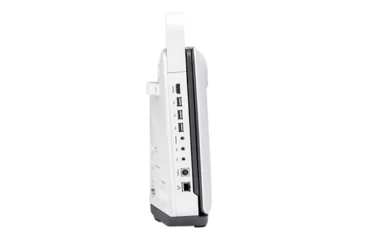

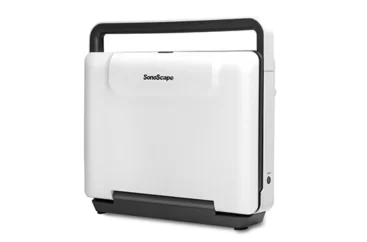

Sonoscape E2 Full Diagnostic Ultrasound

$19,995.00

Sonoscape E2 Full Diagnostic Ultrasound

E2 is categorized as an economy portable Color Doppler ultrasound system. E2 is integrated with a number of advanced imaging technologies such as the full digital broad-band-width beam former, wide-band dynamic range and multi-beam parallel processing. The SonoScape E2 is a fully equipped ultrasound from very basic clinical screenings to the in-depth and full exam profiles with high-end options such as Auto IMT, Spatial Compounding, Auto Image Optimization, Stand-by Mode, Enhanced Needle Visualization, Panoramic imaging and comes with 2 standard probe ports, and a 15.6″ LED monitor.

Easy to take with you, the E2 fulfills your POC, simple OB/GYN, MSK, Vein Care, and Pain Management requirements to fit your routine scanning needs going from patient to patient or traveling abroad to other facilities or seeing patients in their own homes. E2 is an excellent little helper bringing ultrasound imaging assistance where ever it may be needed.

Specialties

Abdominal
Vascular
Cardiac
Ob/Gyn
Urology
Musculo-Skeletal
Small Organ
Pediatric
Cephilac
Pain Management
Veterinary
Surgery

Imaging Technologies

B/ 2B/ 4B/ M/ CFM/ PDI/ DirPDI/ PW
Dynamic Multi-beam Technology
THI,PHI,TGC
μ-Scan
Tissue Specification Imaging(TSI)
Widescan: Convex Extended Imaging
Widescan: Trapezoid Imaging
Spatial Compound Imaging
Triplex, Duplex
B/C Dual Live
Auto (M-tuning)
PW Auto-trace
Auto IMT
Frame Rate: Up to 80fps(Probe Dependent)’
Scan Depth: 40 cm(3C-A probe)

Specifications

Size: 378mm×352mm×114mm (W×H×D)
Weight: Approx. 6.5kg (at most, including battery Approx. 6.1kg (at most, without battery)
Monitor: 15.6’’ widescreen and high-resolution color LCD monitor, LED backlight, anti-flickering and
vertically and horizontally rotatable
Probe port: Two
