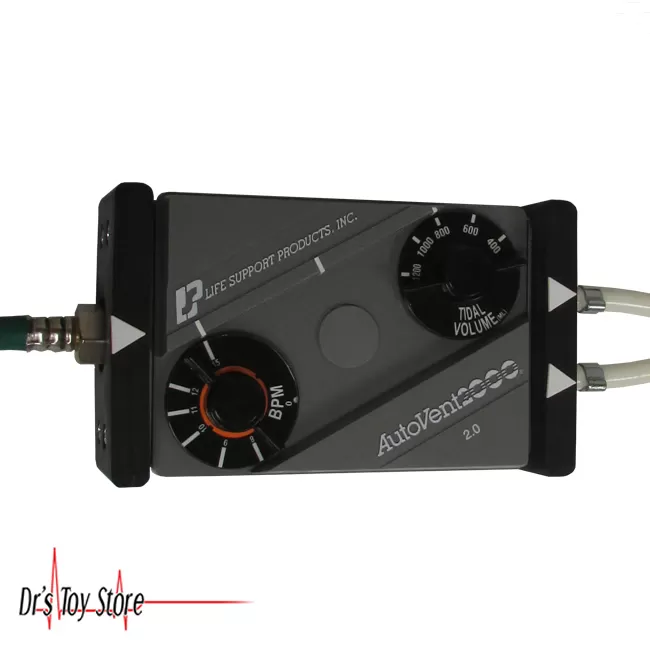

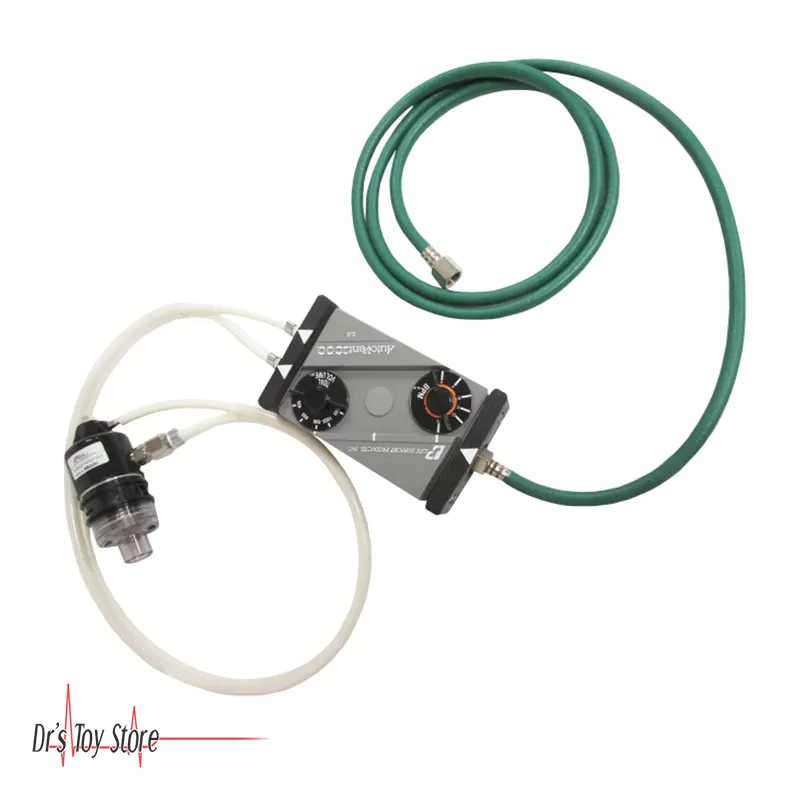

Auto Vent 2000 2.0 Ventilator Respiratory Life Support
The Auto Vent 2000 2.0 Ventilator Respiratory Life Support is a life support system for EMS professionals. It provides independent controls for BPM and tidal volume, and with additional respiratory time settings, it can offer a wider range of patient applications for any emergency.
Auto Vent automatic transport patient ventilator is a small compact medical equipment that comes transport ready, Designed to work in harsh environments and at extreme temperatures ranging from 0-125 Fahrenheit, while it operates on standard 50 psi source gas, it also eliminates air entrainment while maintaining the integrity of the specified oxygen concentration. Also allowing peep attachment.
Control Modules:
- Supply Pressure Range: 40-60 psig
- Operating Temperature: 0° F to 125° F
- Storage Temperature: -40° F to 160° F
- Frequency – AV2000: 8 to 20 BPM
- Frequency – AV3000: 8 to 28 BPM
- Tidal Volume – AV2000: 400 to 1200 ml
- Tidal Volume – AV3000: 200 to 1200 ml
- Flow Rate: 16 to 48 lpm
- Inspiratory Time – AV2000: approx. 1.5 or 2.0 seconds
- Inspiratory Time – AV3000: approx. .75, 1.5, or 2.0 seconds
- Expiratory Time: 1.5 to 6.0 seconds
- I-E Ratio: 1:1 to 1:4 Weight: 24 oz. (680 grams)
- Dimensions: 6″ W x 1-3/4″ D x 3-1/2″ H
- Case Material: polyester
- Input connection: plated brass
- Output Connection: plated brass
- Minute Volume: 0 to 24 lpm
- Gas Consumption Driving Gas: 0.5 lpm maximum
- Driving Gas: 0.5 lpm maximum
