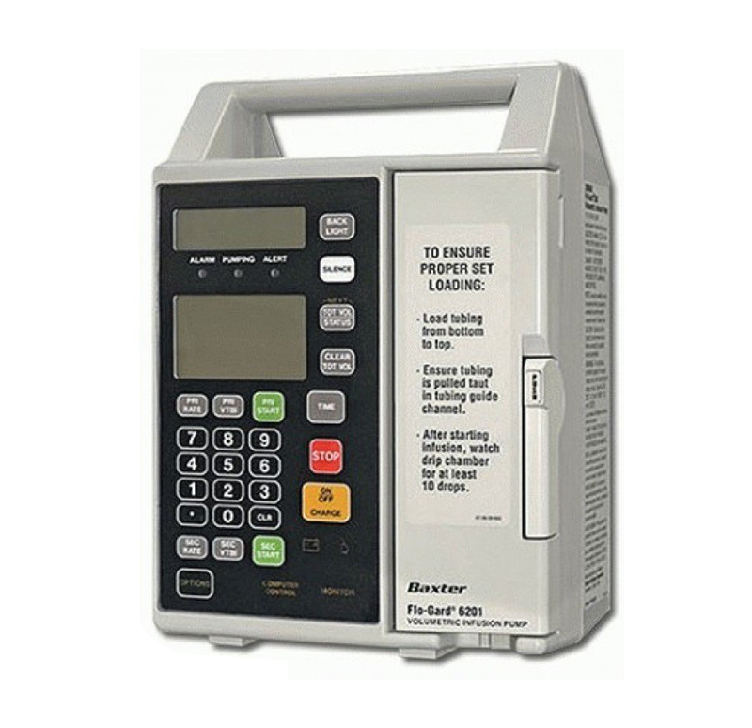

Baxter Flo-Gard 6201 Infusion Pump
The Baxter Flo-Gard 6201 Infusion Pump is the industry standard in standard set infusion pump technology. It can deliver a wide variety of fluids over a broad range of infusion rates.
Baxter Flo-Gard 6201 Infusion Pump Operating Range
- Flow Rate Range:
- Primary program 1.0-99.9 ml/hr in 0.1 ml increments or 1-1999 ml/hr in 1 ml increments. The upper limit can be reduced by authorized service personnel.
- Secondary program: 1.0-99.9 ml/hr in 0.1 ml increments or 1-999 ml/hr in 1 ml increments
- KVO Rate: 5 ml/hr or programmed rate, whichever is less Ramp PDP Parameter Ranges:Total VTBI: 100-9,999 in 1 ml increments. The upper limit can be reduced by authorized service personnel.
- Delay Time: 00:00 – 08:00 hours in minute increments.
- Run Time: 01:00 – 16:00 hours in minute increments.
- Ramp Up: 00:00 to 45% of the Run Time, in minute increments.
- Ramp Down: 00-00 to the Run Time minus Ramp Up, in minute Increments.
- VTBI Range: 1.0-99.9 ml in 0.1 ml increments or 1-9999 ml in 1 ml increments for both primary and secondary. The upper limit can be reduced by authorized service personnel.
Baxter Flo-Gard 6201 Infusion Pump Specifications
- Category: Infusion Pump
- Mounting / Use: Pole-Mounted
- Therapy Type: Large Volume
- Dimensions: 7.9″ x 5.1″ x 11.4″
- Weight: 11.6 lb
- Rate Range: 0.1 – 1999 ml/hr
- Volume Range: 0.1 – 9999 ml
- JCAHO Free Flow Compliant (Yes/No) Yes
- Tubing Type: Standard Baxter Tubing
- Weight: 11.6 lb
- Power: 110-120V, 60 Hz
