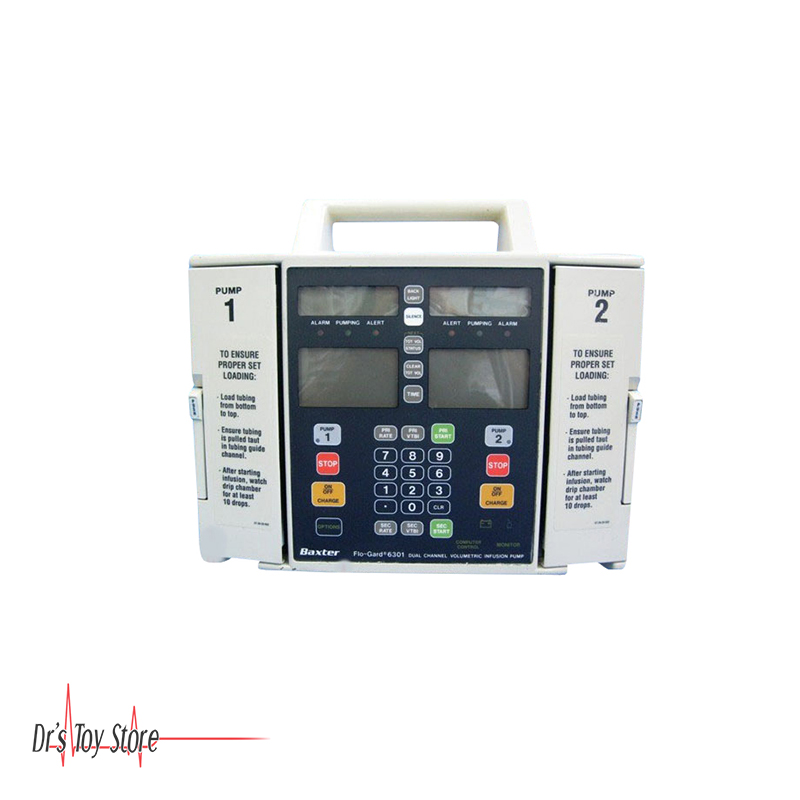

Baxter Flo-Gard 6301 Infusion Pump

Baxter Flo-Gard 6301 Infusion Pump

Baxter Flo-Gard 6301 Infusion Pump Operating Range

• Flow Rate Range:
  • Primary program 1.0-99.9 ml/hr in 0.1 ml increments or 1-1999 ml/hr in 1 ml increments. The upper limit can be reduced by authorized service personnel.
  • Secondary program: 1.0-99.9 ml/hr in 0.1 ml increments or 1-999 ml/hr in 1 ml increments
• KVO Rate: 5 ml/hr or programmed rate, whichever is less Ramp PDP Parameter Ranges:Total VTBI: 100-9,999 in 1 ml increments. The upper limit can be reduced by authorized service personnel.
• Delay Time: 00:00 – 08:00 hours in minute increments.
• Run Time: 01:00 – 16:00 hours in minute increments.
• Ramp Up: 00:00 to 45% of the Run Time, in minute increments.
• Ramp Down: 00-00 to the Run Time minus Ramp Up, in minute Increments.
• VTBI Range: 1.0-99.9 ml in 0.1 ml increments or 1-9999 ml in 1 ml increments for both primary and secondary of each pump. The upper limit can be reduced by authorized service personnel.

Baxter Flo-Gard 6301 Infusion Pump Features

• Dual channel pump (Functions as two 6201’s in a single unit) with independent controls
• Automatic Restart once occlusion clears
• Automatic Piggybacking of secondary medications
• Flow Check Occlusion
• Alarm offers an in-line resistance display of incremental back pressure
• Slide Clamp option offers an additional step to protect against inadvertent gravity-free flow
• Flow Rate Calculation is automatic after volume and time are selected
• Front Panel Lock-out protects against tampering
• User-adjustable occlusion pressures
• Rechargeable batteries

Baxter Flo-Gard 6301 Infusion Pump Specifications

• Dimensions: 13″ W x 5 ” D x 11″ H
• Weight: 18 lb
• Battery:  12 volt, 3.2 ampere-hour sealed lead-acid
• Battery Life:
  • Approx. 6 hrs. with one pump running at a rate from 1 to 1400 ml/hr.
  • Approx. 4 hrs. with both pumps running at rates from 1 to 1400 ml/hr
• Battery Recharge:  8 hrs for more than 80% recharge
• AC Power Requirements:  110/120 V, 60 Hz
• Power Cord:  2.9 m (9.5 ft.) long, with Hospital Grade plug
• Fuse:  0.8A, 250V, SB, 5.2 mm x 20 mm
• Leakage Current:  Less than 50 microamps
