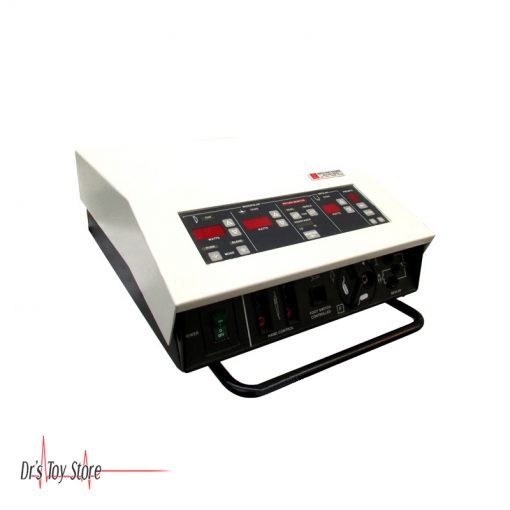

Conmed Sabre 2400 Generator

Conmed Sabre 2400 Generator

The Conmed Sabre 2400 Generator is a powerful electrosurgical medical device to accommodate the needs of all surgical procedures. The Sabre 2400 is a very good choice to meet all highly demanding performance needs of electrosurgery. Includes independent Monopolar output and advanced bipolar performance. It is cost-effective, safe, convenient, and programmable for standardization.

Conmed Sabre 2400 Generator Features

• Full-power electrosurgical generator is suitable for all kind of surgical procedures
• Matches high demanding performance needs in electrosurgery
• Providing independent Monopolar outputs and advanced bipolar performance
• It is cost-effective, convenient, safe, and programmable for standardization
• Powerful electrosurgical generator with footswitch control

Conmed Sabre 2400 Generator provides the surgeon with powerful performance and key user features to meet upcoming electrosurgical needs. It is designed to match the performance needs of even the most demanding surgeons in surgical applications.

Conmed Sabre 2400 Generator Specifications

• Dimensions: 14 1/4″ W x 21 1/2″ D x 6 3/4″ H
• Weight: 32 lbs
• Pure Cut
  • Output Power: Max 300 W
  • P-P Voltage: Max 2,000 V
  • Load: 300 Ohm
  • Crest Factor: 1.8
• Blend Cut
  • Output Power: Max 180 W
  • P-P Voltage: Max 2,200 V
  • Load: 300 Ohm
  • Crest Factor: 2.5
• Coag
  • Output Power: Max 120 W
  • P-P Voltage: Max 9,000 V
  • Load: 500 Ohm
  • Crest Factor: 7.0
• Bipolar
  • Power: Max 50 W
  • P-P Voltage: Max 280 V
  • Load: 50 Ohm
  • Crest Factor: 1.5 – 12.1
• Operative Frequencies
  • CUT: 416.7 kHz
  • COAG: 416.7 kHz
• Pulse Repetition Frequencies
  • BLEND: 20.0 kHz
  • COAG: 25.0 kHz
  • BIPOLAR: 20.0 kHz
• Electrical Info: 104 – 127 V | 50 – 60 Hz | 7.0 A max
• RF Leakage Current: less than 100 mA

Thermal damage free cutting is part of the Conmed Sabre 2400 Generator, with its controlled output voltage in CUT mode. When the electrosurgical electrode glides through dissimilar tissue types in CUT mode, the Conmed Sabre 2400 Generator continuously adjusts the voltage to provide excellent cutting performance. Blend mode is also available for surgeons in order to achieve greater hemostasis during the cutting procedure. The “Auto Spray” option provides outstanding spray coagulation with power settings set to 50 W. The enhanced bipolar mode provides both hand and foot-switching bipolar coagulation with minimal tissue sticking.
