CYNOSURE Smoothshapes XV

CYNOSURE Smoothshapes XV

The Cynosure SmoothShapes XV Laser and LED system is the ultimate cellulite and body shaping solution for your cosmetic practice. The SmoothShapes system utilizes its own Photomology® technology to deliver an effective combination of vacuum and massage through the use of both light and laser energy. By using highly targeted and consistent tissue temperature elevation, the SmoothShapes XV system treats the underlying causes of cellulite, working to break up lipids by penetrating cell membranes.

Cynosure SmoothShapes XV is a non-invasive energy-based system that treats localized areas of cellulite. The aesthetic device combines dynamic laser and light energy with vacuum and massage to address the physical manifestations of cellulite and its underlying causes. It is a pain free procedure that provides a significant and lasting reduction in the appearance of cellulite, with no down time. SmoothShapes™ does not require any changes in daily routine and has virtually no side effects. Eight simple sessions completed within a four week time period, help patients achieve younger looking skin with less “jiggle” on thighs, buttocks, arms, knees, hips, abdomen, waist, back and calves.

Cynosure SmoothShapes XV Laser Features

• Consistent and reliable tissue temperature elevation
• Portable, sleek console design
• SmoothSpeed^TM – Audible and Visual Treatment Guidance
• One-setting treatments – Simple and easy to operate
• Interactive training screen
• PETITE HANDPIECE
  • New body shaping treatment options including neck, chin, knees, arms and calves
  • Treatment options for hard to reach areas and smaller patients
  • Lightweight
  • Approximately 50% increase in power density to produce an identical thermal gradient as the larger laser handpiece ensuring same clinical efficacy
  • Improved suction adjustment

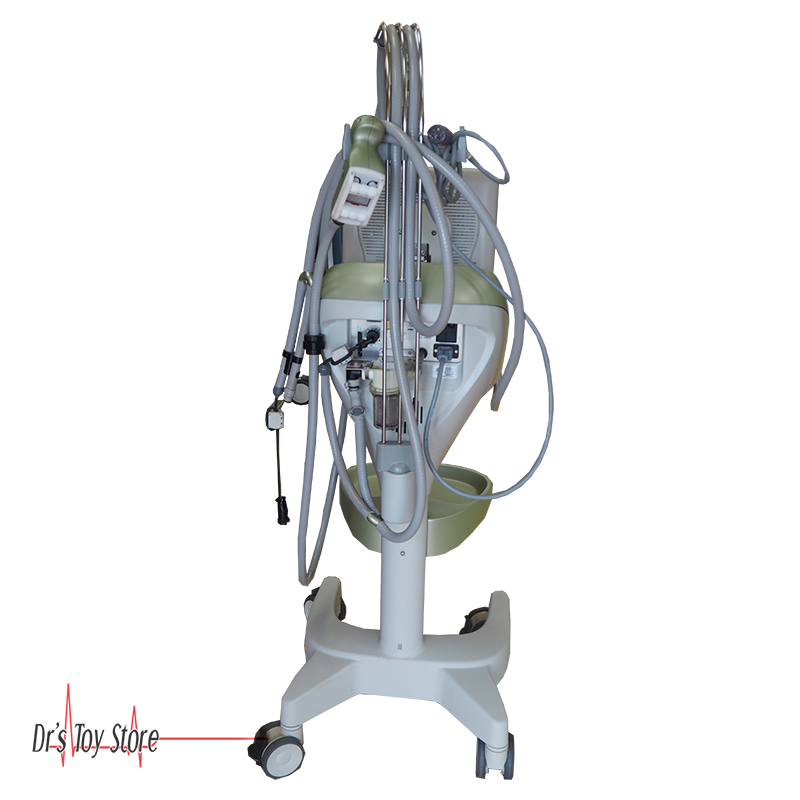

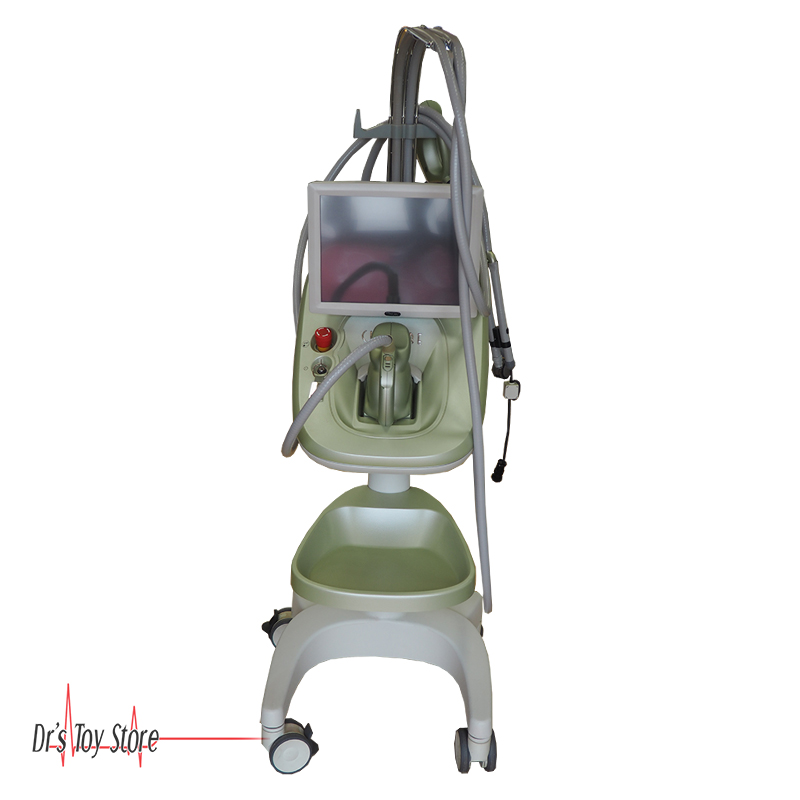

Cynosure SmoothShapes XV Laser Specifications

• Laser Type: Diode
• Integrated Processor Control: PC 104 based processor
• Graphical User Interface: 15″ Color Touch-Screen Monitor
• Dimensions: 21″ W x 23 1/4″ D x 51 3/4″ H (including monitor)
• Space Requirements: Leave 8″ space around the unit to allow adequate ventilation while it is in use
• Gross Weight: 122 lbs
• Console Net Weight: 53 lbs
• Custom Cart Weight: 49 lbs
• Electrical Info
  • 110 V | 50 – 60 Hz | 450 W
  • 220 V | 50 – 60 Hz | 450 W
• Operating Environment
  • Humidity: Non-condensing humidity below 75% RH
  • Temperature: between 50 °F and 85 °F

Cynosure SmoothShapes XV LightOutput Handpiece Specifications

• Wavelength
  • Laser Radiation: 915 nm
  • LED Light: 650 nm
• Maximum Radiant Power
  • 15 W @ 915 nm
  • 1 W @ 650 nm
• Laser Aperture: 70 mm x 40 mm
• Pulse Duration: CW
• Beam Profile: Non-collimated, highly diverging, diffuse beam
• Power Density: 0.57 W / cm²

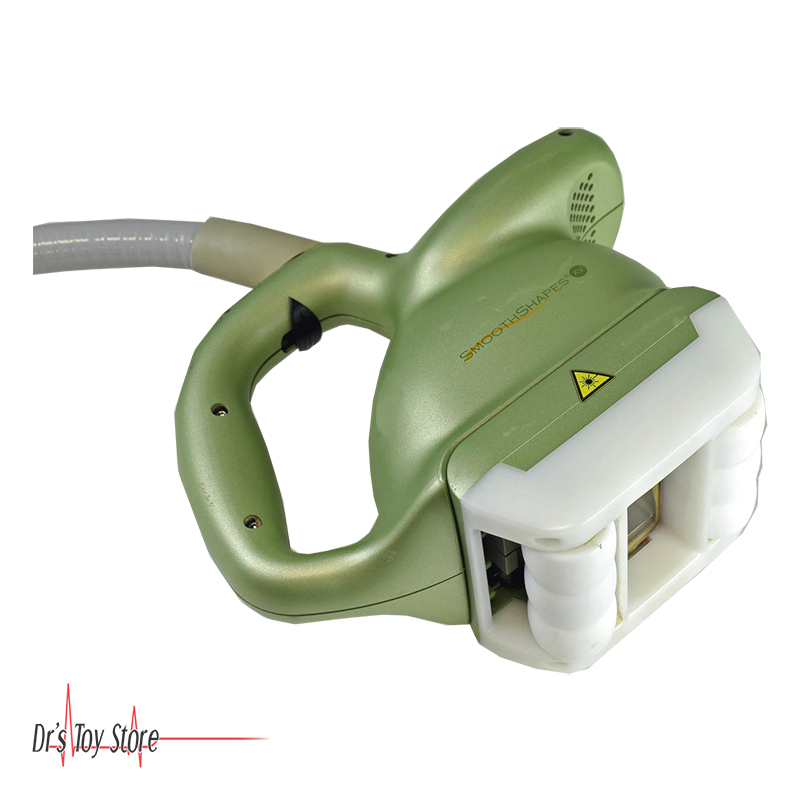

Cynosure SmoothShapes XV Massage Handpiece Specifications

• Vacuum Level
  • Variable from 34 mBar to 237 mBar
  • Variable from 1 in/hg to 7 in/hg
• Flow Rate: 18.5 m³ / Hr (653 ft³ / Hr)
• Roller Diameter: 32 mm
• Roller Centers: 72 mm

Cynosure SmoothShapes XV Petite LightOutput Handpiece Specifications

• Wavelength
  • Laser Radiation: 915 nm
  • LED Light: 650 nm
• Maximum Radiant Power
  • 10 W +/- 20% @ 915 nm
  • 1 W +/- 20% @ 650 nm
• Laser Aperture: 45 mm x 28 mm
• Pulse Duration: CW
• Beam Profile: Non-collimated, highly diverging, diffuse beam
• Power Density: 0.57 W / cm²

Cynosure SmoothShapes XV Petite Massage Handpiece Specifications

• Vacuum Level
  • Variable from 34 mBar to 237 mBar
  • Variable from 1 in/hg to 7 in/hg
• Flow Rate: 18.5 m³ / Hr (653 ft³ / Hr)
• Roller Diameter: 19 mm
• Roller Centers: 55 mm
