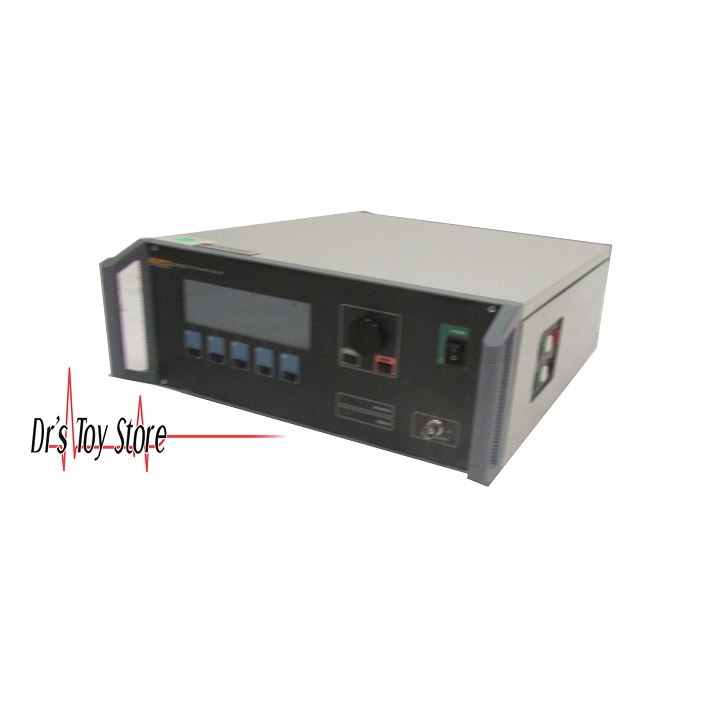

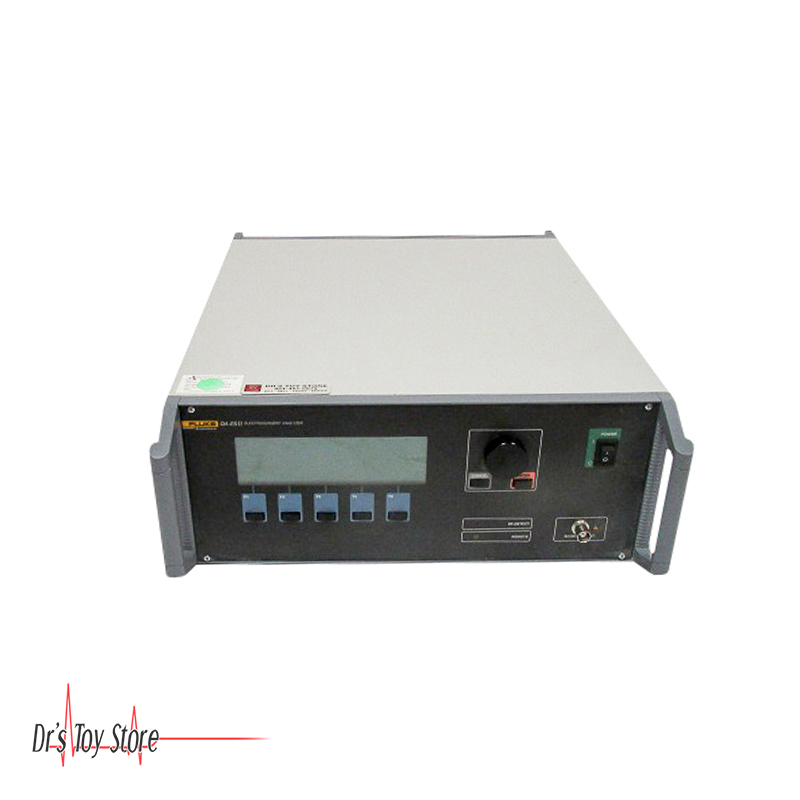

Fluke QA-ES Series II Electrosurgery Analyzer
The Fluke QA-ES Series II analyzes electrosurgical units quickly and accurately. A wide load-resistance range provides 128 user-selectable loads, including very low loads for testing many of today’s ESUs.
Fluke QA-ES Series II Electrosurgery Analyzer Features
- Fluke QA-ES Series II Electrosurgery Analyzer analyzes electrosurgical units quickly and accurately
- A wide load-resistance range provides 128 user-selectable loads, including very low loads for testing many of today’s ESUs
- An accuracy of ± 2 % of reading down to 20 mA guarantees reliable high-frequency leakage results. With a capability to run an automatic-power-distribution test in as little as 1 minute, the Fluke QA-ES Series II Electrosurgery Analyzer works fast so technicians save time
- An Ansur QA-ES software plug-in allows users to create and automatically run tests, capture data, and produce easy-to-read reports with a PC
- Automatic power distribution measurement, including power, current, peak-to-peak voltage (closed load only), and crest factor
- Oscilloscope output
- High-frequency leakage measurements with an accuracy of ± 2 % of reading
- 128 internal user-selectable test loads from 10 Ω to 5,200 Ω
- Foot-switch output for triggering the ESU under test
- Large display
- RS-232 and Centronics Printer interface
Fluke QA-ES Series II Electrosurgery Analyzer Specifications
- Operating Temperature: 59 °F to 95 °F
- Storage Temperature: 32 °F to 122 °F
- Humidity: 80% non-condensing
- Display Type: LCD
- Alphanumeric format: 8 lines, 40 characters
- Graphics mode: 240 x 64 point matrix
- Controls: Function keys F1 through F5, ENTER, CANCEL, and an encoder control

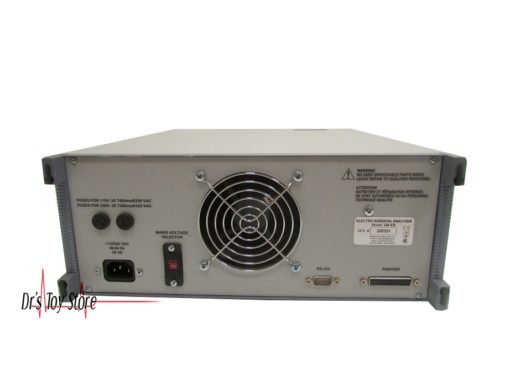

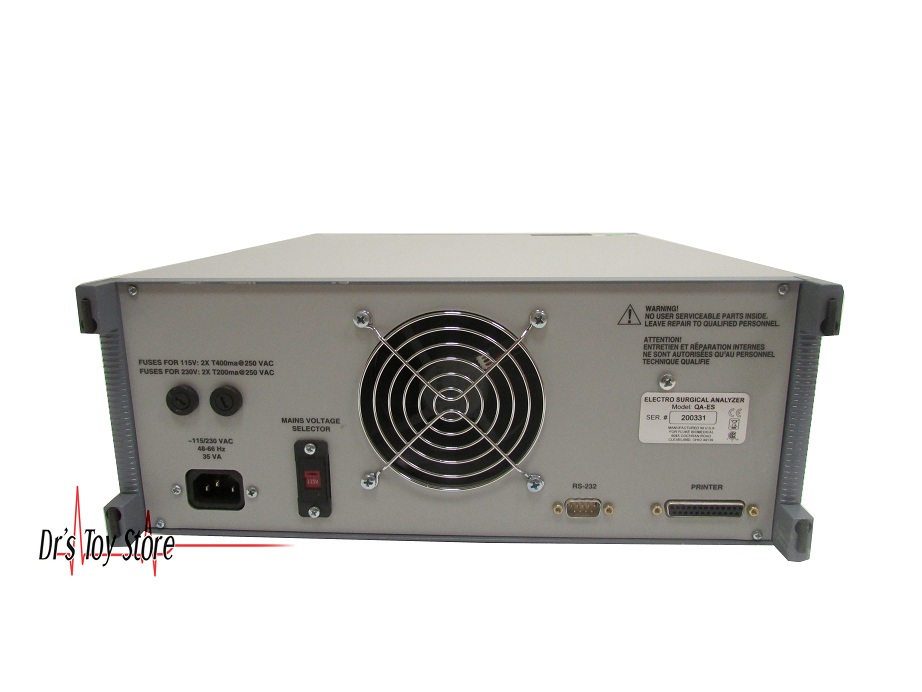

- Interfaces: Parallel printer port; bi-directional RS232 for computer control
- Electrical Info: 115 – 230 VAC | 48 – 66 Hz | 35 W
- Mechanical Specifications Housing: Metal case
- Dimensions: 13 1/2″ W x 15 1/2″ D x 5 1/3″ H
- Weight: 22 lbs
Continuous operation – Continuous measurement of power, current, peak-to-peak voltage (closed load only), and crest factor
Single operation – Single measurement after the set delay time of the ESU output of power, current, peak-to-peak voltage (closed load only), and crest factor
Power distribution – Automatic measurement of power, current, peak to-peak voltage (closed load only), and crest factor through a user-selectable load range
RF leakage current – Provides connections and load configurations to measure HF leakage from both grounded and isolated equipment
RECQM – Test the “return electrode control quality monitoring” using the QA-ES internal loads
