GE Dash 2000 Patient Monitor EKG ECG NIBP SPO2

GE Dash 2000 Patient Monitor – EKG ECG NIBP SPO2

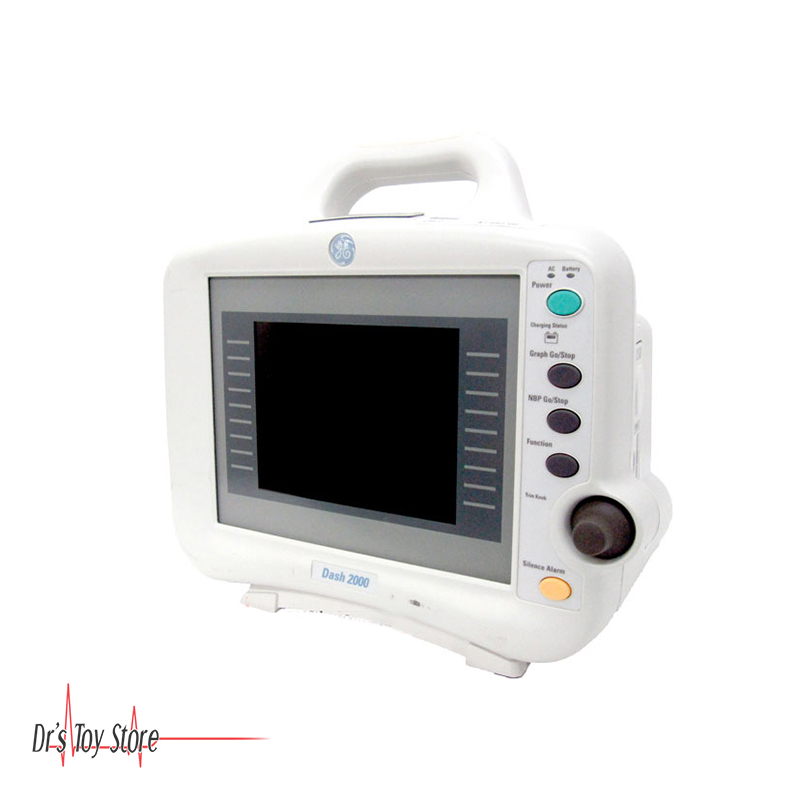

The GE Dash 2000 Patient Monitor comes with a large color screen and was designed for any hospital or clinical setting.

GE Dash 2000 Patient Monitor Features

• 3 Lead ECG monitoring
• Non-invasive blood pressure
• Pulse Oximetry
• Optional temperature
• End Tidal CO2
• Invasive Blood Pressure
• Printer
• Power Supply
• On a fully charged battery it can run from 3 to 4 hours

GE Dash 2000 Patient Monitor Specifications

• DISPLAY
  • Size: 5.8-inch diagonal
  • Type
    • Monochrome: Hi-Bright Liquid Crystal Display (LCD)
    • Color: Liquid Crystal Display (LCD)
  • Resolution: 320 by 240 pixels
  • Number of traces: 3
  • Number of seconds/trace: 3.8 at 25 mm/sec
  • Sweep speed for All waveforms: 25 mm/sec -20% (with erase bar)
  • Waveform display: Individual
  • Information window: Display of non-real-time
  • information without obstructing the display of real-time information
  • Display organization: Prioritized by parameter
• CONTROLS
  • Standard:Trim Knob control plus 5 hard keys: Silence Alarm, NBP Go/Stop, Graph Go/Stop, Function, and Power
• ALARMS
  • Classification: 4 levels – Crisis, Warning, Advisory, and Message
  • Notification: Audible and visual
  • Setting: Default and individual
  • Silencing: 1 minute, current alarm only
  • Volume: Default 70%, 70 dB measured at 1 yard
• RESPIRATION
  • Measurement technique: Impedance variation detection
  • Range: ±14 Vpk /(330 pF + 20 kOhm) per electrode excitation voltage/impedance
  • Respiration rate: 1 – 200 breaths per minute
  • Base impedance: 100 to 1000 Ohms at 52.5 kHz excitation frequency
  • Detection sensitivity: 0.4 to 10 Ohms variation
  • Waveform display bandwidth: 0.1 to 1.8 Hz (-3 dB)
  • Alarms: User-selectable upper and lower respiration rate limits, and user-selectable apnea limit
