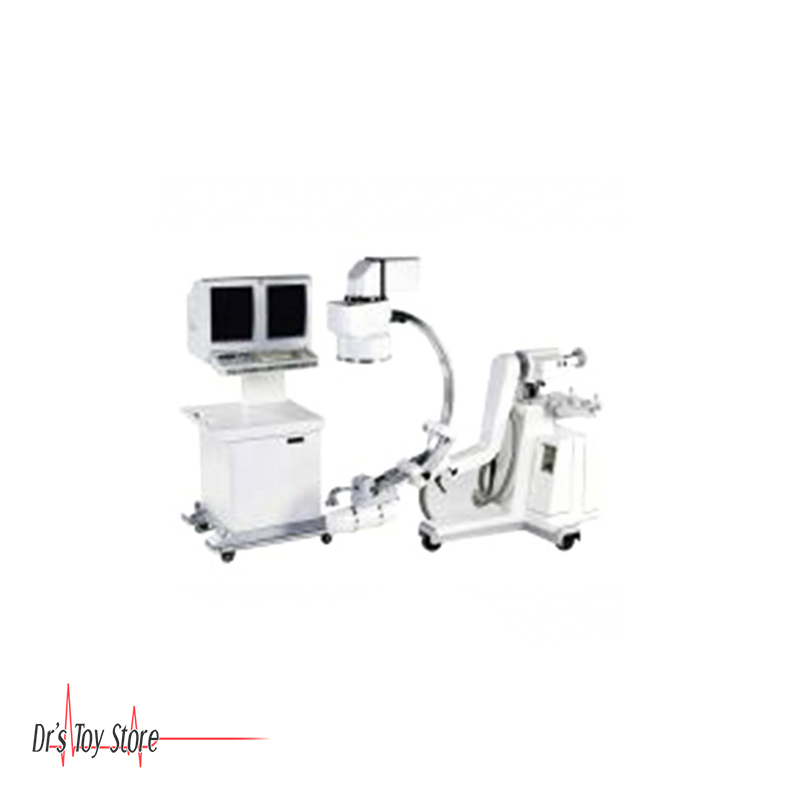

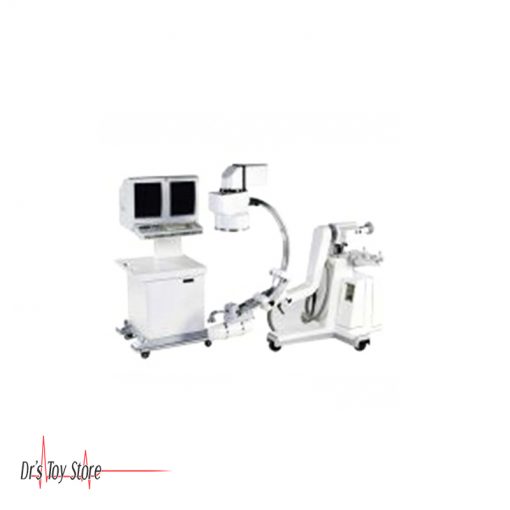

GE OEC 7700 Compact X-Ray Machine

GE OEC 7700 Compact X-Ray Machine

The GE OEC 7700 Compact X-Ray Machine meets your needs with a compact one piece design which allows the user to easily wheel high quality fluoro directly to the patient, fast, easy and ideal for lithotripsy applications.

GE OEC 7700 Compact X-Ray Machine Features

• One-piece or two-piece c-arm system flexibility
• Automatic adjustment and one-button programming
• Roadmapping and Digital Subtraction Angiography
• Dynamically stores images at 30 fps
• Pairs with the 7700 Digital Workstation
• Dual 16-inch monitors on the workstation
• Optional laser aimer
• 2.2 kW, 20 kHz high-frequency generator
• DICOM compatible

The GE OEC 7700 Compact X-Ray was designed to work either as a one-piece mobile fluoroscopic c-arm or in tandem with a 7700 digital workstation. For areas where space is limited and when situations call for moving the unit around, the GE OEC 7700 fits the bill as it was designed to be compact enough to fulfill a variety of functions by being wheeled around by just one person. It operates on a “point and shoot” basis, has multiple imaging modes, and automatic adjustment for fluoroscopic settings – making it quite simple to operate. It has its own monitor and hardcopy printer, so there’s no need to cart around other components with the unit.

GE OEC 7700 Compact X-Ray Machine Specifications

• @ 220 VAC 8mA @ 110 kVp
• X-Ray Tube
  • Stationary Anode
  • Focal Spot Size
    • Radiographic mode: 0.6 mm – 1.5 mm
    • Fluoroscopic mode: 0.6 mm
  • Anode heat capacity: 76,000 HU
  • Anode cooling rate: 19,800 HU/min
• Video Imaging System and Processing
  • Tri-mode 9”/6”/4.5” II
  • 680 x 512 x 10 bit image processing
  • Noise reduction
  • Optional DICOM 3.0 interface
• Dimensions
  • Mainframe: 64-1/2″ L x 31″ W x 67″ H
  • C-arm SID: 38″
  • Free space in arc: 30″
  • Depth in arc: 26″
  • Orbital rotation: 120° with 30° overscan
  • Wig/wag: 10°
  • Horizontal travel: 8″
  • Vertical travel: 17″
  • Workstation (Optional): 27-2/3″ W x 22″ D x 65-2/3″ H
• GENERATOR
  • High-frequency, 20 kHz
  • Power rating: 2.2 kw @ 100 kvp
  • Kv range: 36
  • Ma range: 20 fixed
  • mAs RANGE: 80
  • Aec EXPOSURE TIME: 0.1 s – 4 s
  • Kv range: 36
  • Ma range: 0.2-8
  • Pulsed fluoroscopy: Yes
  • Snapshot function: Yes
  • DICOM COMPATIBLE (Focal spot size, mm) Yes
