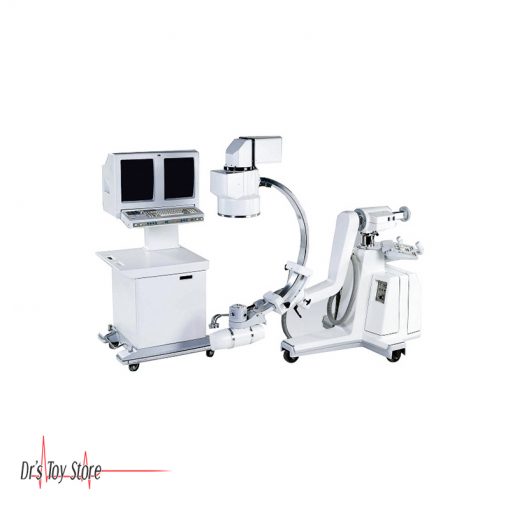

GE OEC 9400 C-Arm X-Ray

GE OEC 9400 C-Arm X-Ray

The GE OEC 9400 C-Arm is a solid workhorse of a C-Arm, offering features that can be used for orthopedic surgery, general surgery, and in pain management. The OEC 9400 was a very popular model when it first came out and remains a very good option for an office working on a budget.
The GE OEC 9400 C-Arm is a multi-application mobile X-ray imaging system that provides solutions for the most demanding needs in Pain Management, General, Orthopedic and Vascular Surgeries. The GE OEC 9400 is a reliable and complete unit, offering clear images, enhanced penetration power and resolution.

GE OEC 9400 C-Arm Features

• 9/6/4” Image Intensifier
• Dual Hi Resolution Monitors
• Rotating Anode X-Ray Tube
• Analog System
• GSP – General Surgical Package
• LIH – Last Image Hold
• Gamma Correction
• Fluoro Boost
• Sharpen Function

GE OEC 9400 C-Arm X-RAY SYSTEM Specifications

• Generator
  • 2.5 kHz High frequency
  • 6.0 kW Full-wave
  • Up to 120 kVp
  • Up to 100 mA for radiographic film exposures
  • Fluoro boost mode up to 20 mA (optional)
  • Pulsed fluoro mode
  • Pulsed fluorography mode up to 60 mA (optional)
  • 100V 60Hz 15A
  • 240V 50Hz 12A
• X-Ray Tube
  • Rotating anode X-ray tube
  • Focal spots: 0.3 mm and 0.1 mm
  • Anode heat capacity: 300,000 HU
  • Anode cooling rate: 70,000 HU/min
  • Housing heat capacity: 1,250,000 HU
• Collimator
  • Dual leaf collimation
  • Minimum beam size  5 X 5 cm²
  • Leaves are continuously variable
  • Remotely controlled from the C-Arm control panel
• Fluoroscopy Mode
  • Focal spot: 0.3 mm
  • kVp range: 40 – 120 kVp
  • mA range: 0.2 – 5.0 mA normal mode
  • mA range: Up to 20 mA boost mode (optional)
  • Auto, manual and pulsed modes
  • Continuous or One-Shot operation
  • ABS varies mA, kVp and camera gain
  • User specific ABS tables
• Radiographic Mode
  • Focal spot: 0.3 mm or 1.0 mm
  • Focal spot automatically selected
  • 0.3 mm – mAs range: 1 – 100 mAs
  • 1.0 mm – mAs range: 100 – 300 mAs
  • kVp range: 50 – 120 kVp

GE OEC 9400 C-Arm Video Imaging SYSTEM Specifications

• 6 in Image Intensifier
  • Single-mode 6 in image intensifier
  • DQE: 65% (typical)
• Video Camera
  • Vidicon Image Tube
  • 525 lines/frame
  • 360 ̊ motorized rotation
  • On-screen orientation indicator (real-time feedback without fluoro)
  • Left-right image reversal
  • Top-bottom image reversal
  • 256 shades of gray
• Video Monitors
  • Dual 17 in Ultrabrite anti-glare monitors
  • Ambient room light sensor
  • Remote brightness/contrast controls

General Specs

• Height: 66 in – 83 in
• Width: 34 in
• Length: 74.5 in
• Weight: 740 lbs
