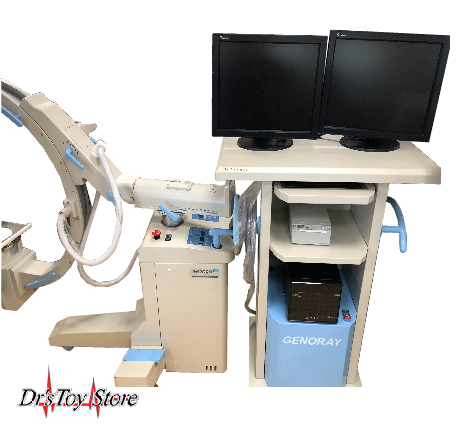

GenoRay Zen-2090 Pro C-Arm

Generator

• Type: High Frequency Inverter, 2.2kW
• kV range: 40-110kV
• mA range: 0.2-6.0mA (Continuous)
• 0.2-6.0mA (Pulsed)
• 1.0-20.0mA (Snap Shot)
• Auto Brightness Control (ABC)

X-Ray tube

• Focal spot size: 0.5/1.5mm
• Anode heat capacity: 50,000HU, Stationary anode
• Max kVp: 110

CCD Camera

• Triple Field Size: 9″/6″/4.5″
• Resolution: 1,004(H)*1,004(V)
• Frame Rate: ~15 fps

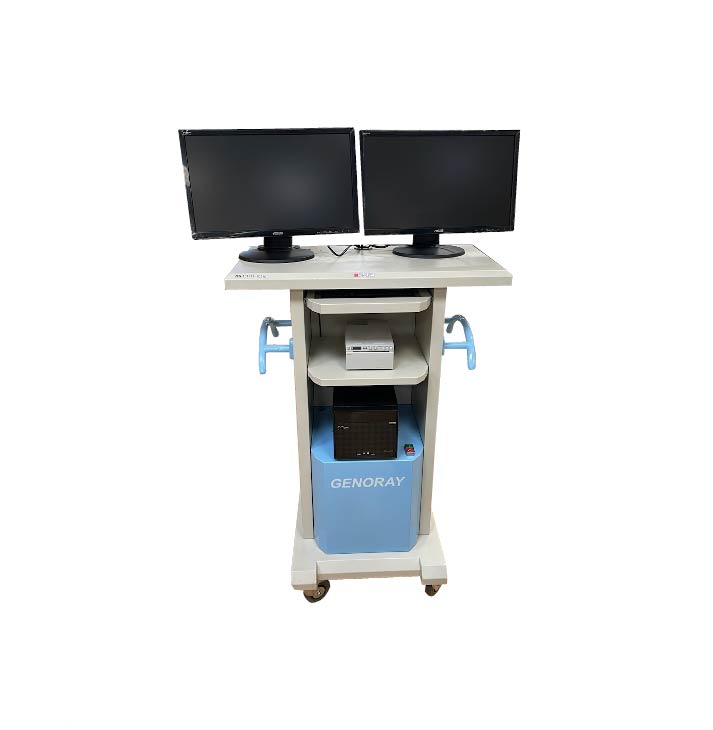

ZENIS system

• Image management(Acquisition, Storage)
• Measurement Annotation / Dicom 3.0
• Total solution from acquisition to print-out

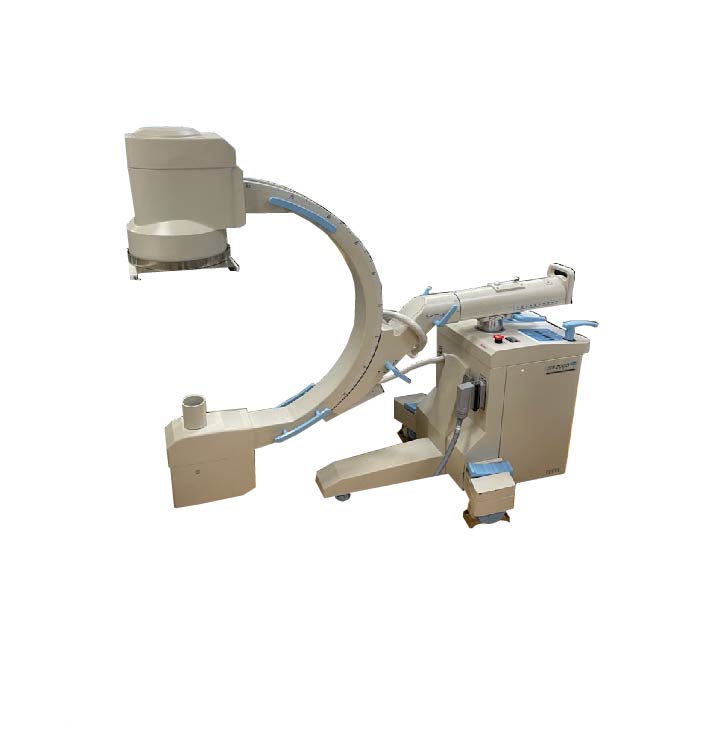

C-ARM

• SID: 960mm
• Depth: 640mm
• Free Space: 750mm
• Horizontal movement: 200mm
• Vertical movement: 400mm
• Panning motion: 25° (+12.5°, -12.5°)
• Pivot Rotation: 380° (+190°, -190°)
• Orbital Rotation: 120° (+30°, -90°)
