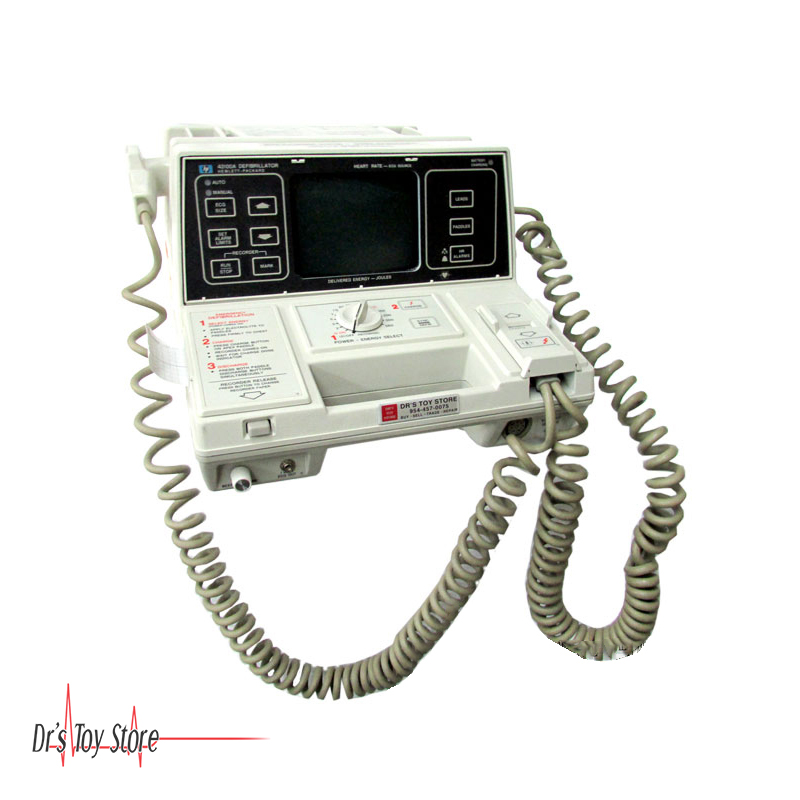

Introducing the Hewlett Packard 43100 Defibrillator.

Hewlett Packard 43100 Defibrillator Features

• Built-in annotating recorder and internal battery
• The HP 43100 meets current ACLS standards
• Uses microprocessor technology to control and monitor system operation, which allows the unit to perform a self-diagnostic routine
• Produces up to 360 joules
• These units function as an ECG monitor

Hewlett Packard 43100 Defibrillator Specifications

• Waveform: Damped Sinusoidal
• Output Energy: 2, 3, 5, 7, 7, 10, 20, 30, 50, 70, 100, 150, 200, 300 and 360 Joules
• Charge Control: Push-button on apex paddle and on the front panel
• Charge Time: Less than 10 seconds to 360 joules when powered by a fully charged battery
• Armed Indicator: Charge done tone, and charge done lamp on apex paddle
• Paddle Contact Indicator: 3-color LED bar graph array on STERNUM paddle indicates the quality of defibrillator paddle contact before discharge
• Paddles: Standard paddles are anterior/anterior, adult, and pediatric. Adult electrodes ( 32 1/2″ ) slide off to expose pediatric electrodes ( 8 1/4″ )
• Synchronizer: “SYNC” message appears on the monitor and is annotated periodically on the recorder while in synchronous mode. An audible beep sounds with each detected R-wave, while a marker pulse on the monitor and syn designator on the recorder strip indicate discharge point. Upon activation, discharge occurs within 30ms of marker pulse
• MONITOR
  • Input: ECG activity may be viewed through the paddles or patient cable. Lead I, II, or III selectable in LEADS position. The monitor and recorder indicate selected ECG source
  • Heart Rate Display: Digital readout on the monitor from 20 to 300 bpm
  • Heart Rate Alarms: Adjustable limits from 20 to 280 bpm
