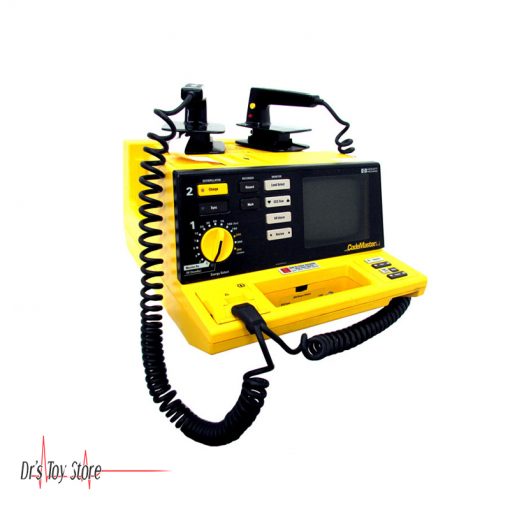

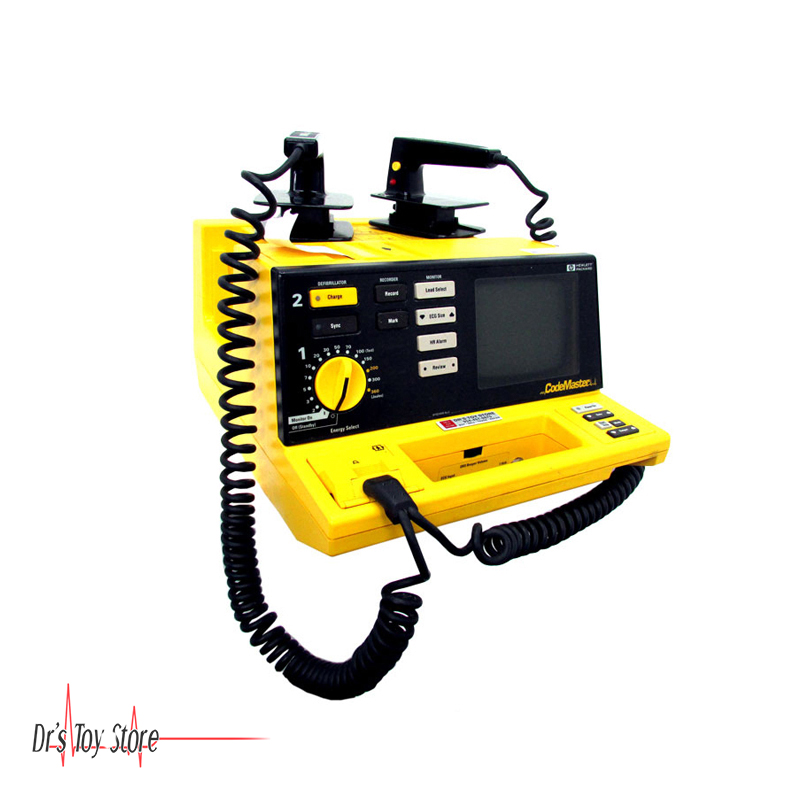

Hewlett Packard Codemaster XL Defibrillator

Hewlett Packard Codemaster XL Defibrillator

The Hewlett Packard Codemaster XL Defibrillator is a high speed defibrillator what charges from 0 to 360 joules in just 5 seconds, and also offers a variety of easily customized options in order to meet the all your needs from a defibrillator.

The CodeMaster XL Defibrillator from Hewlett Packard is an excellent and flexible choice for high-use areas of hospitals, including

• Operating rooms
• Intensive care units
• Cardiac care units
• Emergency departments
• Clinics
• Ambulatory surgery centers.

Optional HP multi-function electrodes allow you to pace and defibrillate with the same pads, and hands-free operation allows remote defibrillation to protect operators and save time.

Hewlett Packard Codemaster XL Features

• Provides High Performance
• Cardioscope, noninvasive pacemaker and recorder
• Fast Recharge
• Compact, Lightweight
• Easy 1-2-3 Operation
• Built-in Pediatrics Paddles – simply remove cover for pediatric paddle use
• See large paddle image above for representation
• Adjustable heart rate alarms
• High capacity indicator
• Includes ECG cables, leads, pads and battery

The Hewlett Packard CodeMaster XL Defibrillator also provides easy 1-2-3 operation, built-in pediatric paddles under slide-off adult paddles, adjustable heart rate alarms, a high-capacity battery, and a paddle-to-patient contact indicator to take the guesswork out of defibrillation. (Not for Public Use)

Hewlett Packard Codemaster XL Specifications

• Dimensions:
• Weight: 24 lbs
• Battery Type: Rechargeable, sealed lead-acid battery. 4 Ah, 12 V nominal
• Charge Time: 2 hours to 90% of full capacity. 18 hours to 100% capacity. Repeated charging to less than 100% will reduce the useful life of the battery
• Capacity: 2.5 hours monitoring or 50 full-energy discharges or 1-hour monitoring and recording
• AC input: 100 to 230 VAC +/- 15%, 50/60 Hz
• Battery Indicators: Illuminated LED indicates the battery is charging
• Low Battery message appears on the monitor
• Waveform: damped sinusoidal
• Output energy (delivered): 2, 3, 5, 7, 10, 20, 30, 50, 70, 100,150, 200, 300, and 360 Joules
• Charge control: push-button on apex paddle and on the front panel
• Charging time: less than 5 seconds to 360 joules with a functional battery installed
• Charge done indicator: display indicates available energy, charge-done light on apex paddle, charge done tone
• Synchronizer: SYNC message appears on the monitor and is annotated periodically on the recorder while in synchronous mode. An audible beep sounds with each detected R-wave, while a marker on the monitor and sync mark on the recorder strip indicate the discharge point
• Paddles: standard paddles are anterior / anterior. Adult electrodes (83 cm sq) slide off to expose pediatric electrodes (21 cm sq)
• Paddle cord is 10 feet (3 meters). Full range of internal paddles is available
• Monitor
  • Input: ECG activity may be viewed through the paddles or patient cable
  • Lead fault: LEADS OFF message and dashed baseline appear on the monitor if a lead becomes disconnected
  • Common mode rejection: greater than 100dB measured as per AAMI standards for cardiac monitors
