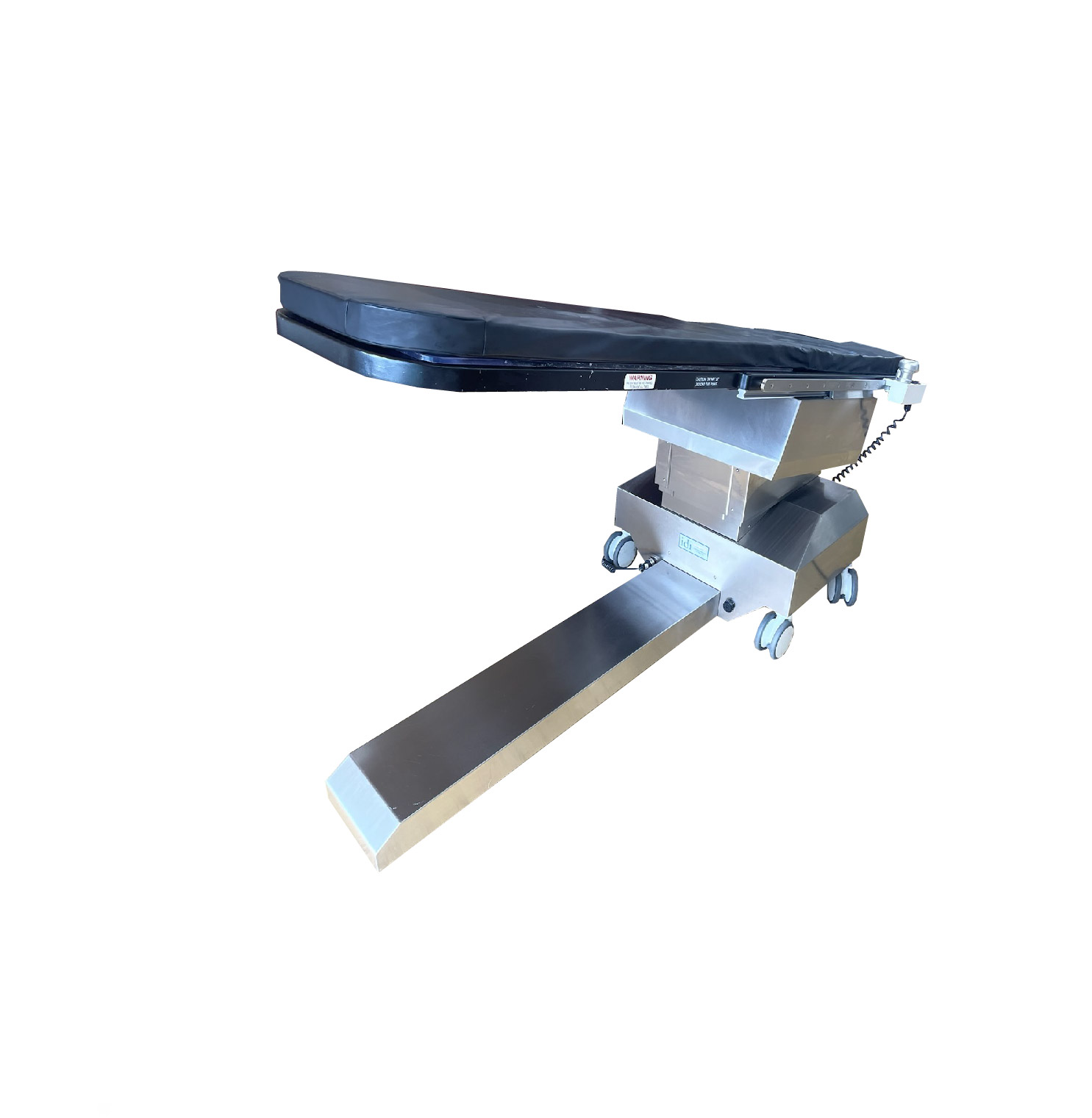

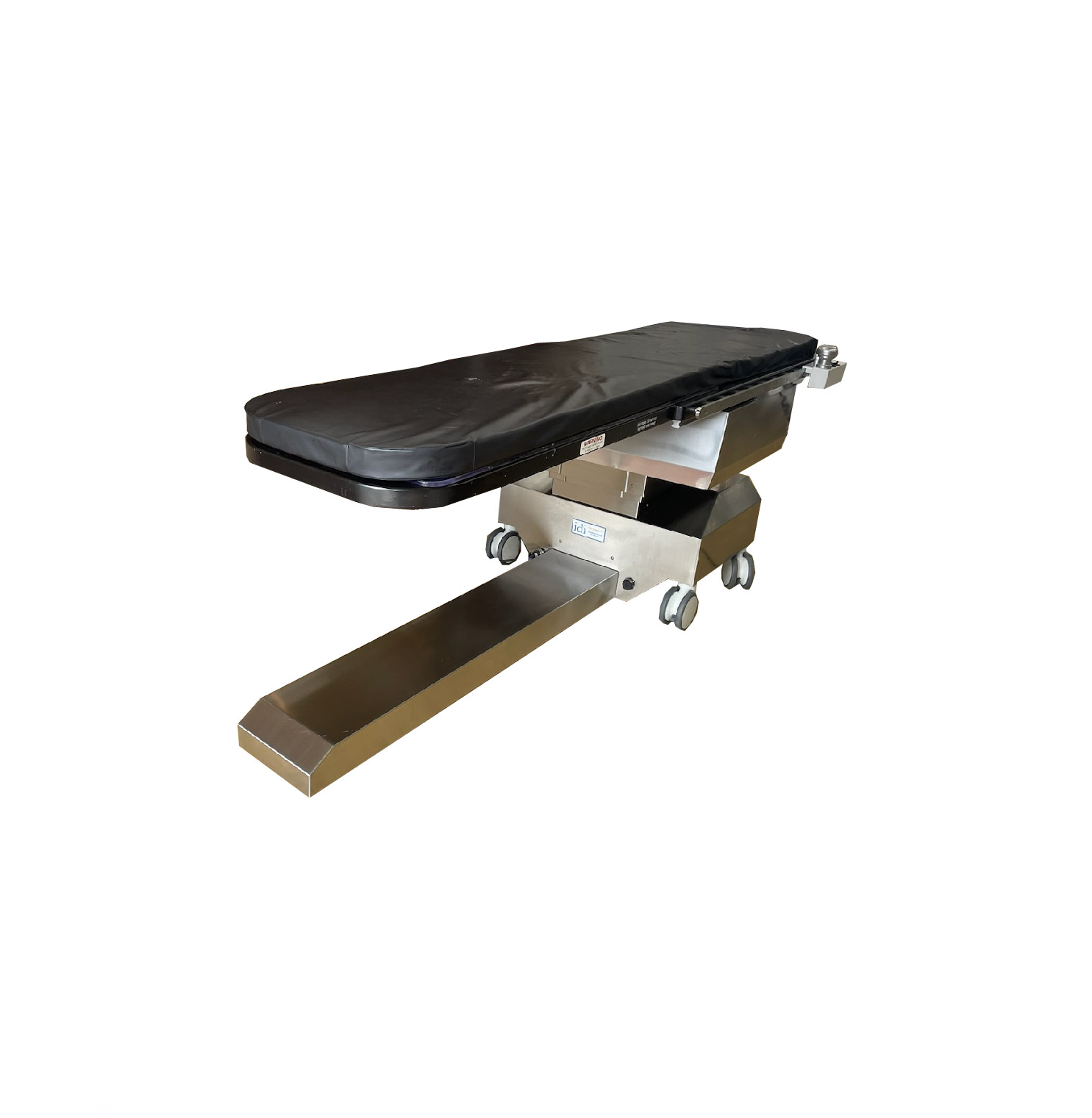

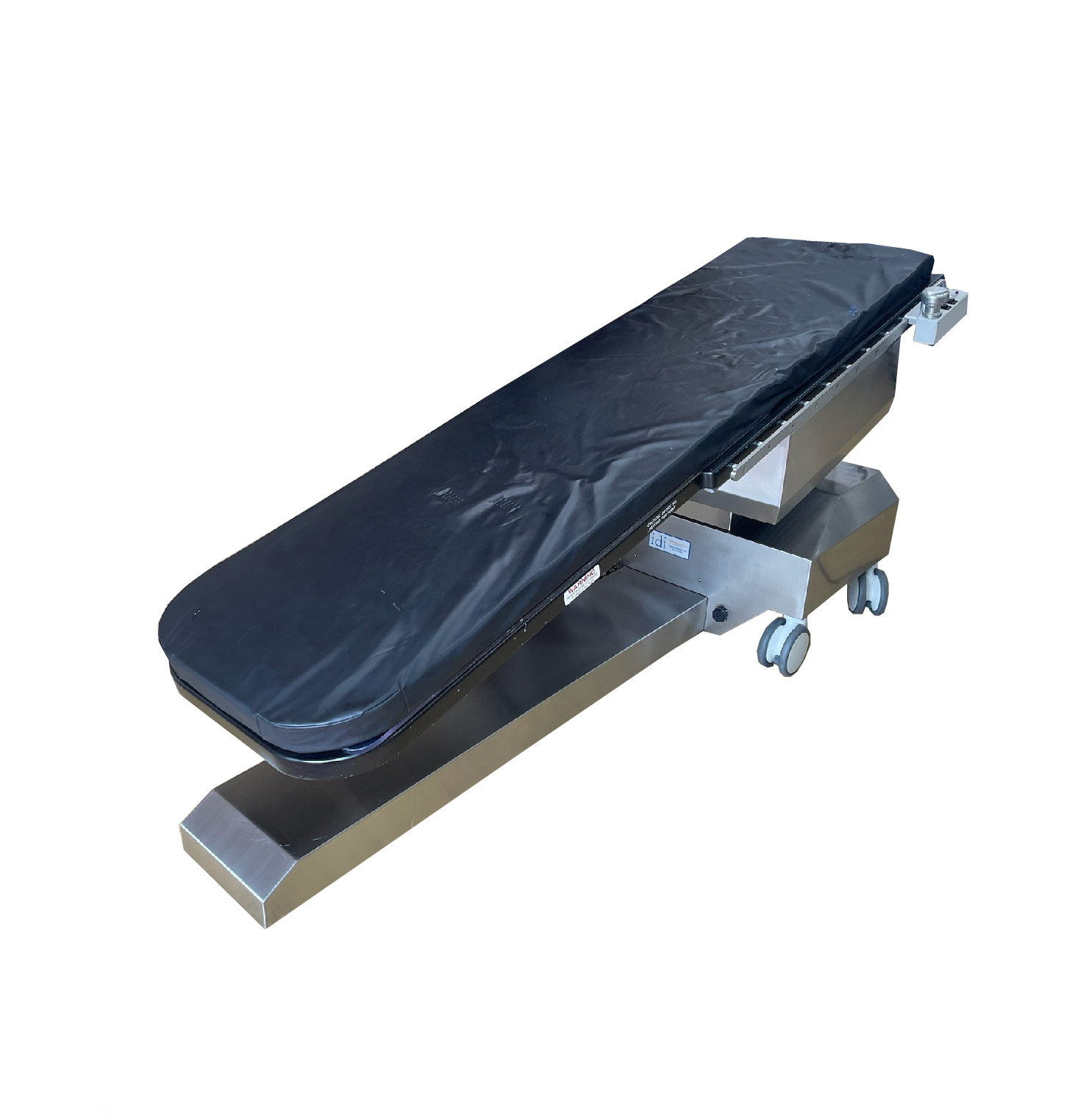

idi Aspect 100-4T-G2 C-Arm Table

Aspect 100-4T G2 Specifications

The Aspect 100-4T G2 is an
affordable solution for C-arm
imaging in interventional and
vascular procedures where a
4-way floating tabletop and
trendelenburg tilt is required.
The table provides very
smooth 4-way floating tabletop
motion via a rail-mounted
panning hand control. Tilt
and elevate functions are
also controlled via the table mounted
hand control and may also be controlled by an optional footswitch.
The table tilt function includes automatic “stop-at-level”
positioning and the 4-way
float function is automatically
locked until the table is level
and the panning hand control
is depressed.

Table movement

• Table Elevation 29” – 38.9” (73.7 – 98.8 cm) tabletop to floor, without
tabletop pad
• Trendelenburg Tilt: ±12° with automatic stop-at-level position.
• Longitudinal Tabletop Motion: 32” (81.3 cm)
• Transverse Tabletop Motion: 8” (20.3 cm)
• Automatic locking of longitudinal float when table is out of level.
Transverse tabletop float available regardless of tilt position.

 Table dimensions & construction

• Tabletop Size: 24”W x 84”L (61 x 213 cm)
• Imaging area on main table body: 62”L (157.5 cm)
• Tabletop construction: carbon fiber, low x-ray attenuation.

Weight

• Patient weight capacity: 450 lbs. (204 kg)
• Table weight: 605 lbs. (274 kg)
Transport
• Dual-wheel swivel casters with three position locking system for easy
transport and positioning.

Electrical

• Electrical power requirement: 110V @ ≤10 amp.
• 230V optional. (Must specify with order)
• Full operation from internal battery.

   Certifications

• ETL listed to IEC 60601-1-6 3rd Edition, IEC 60601-2-46.
