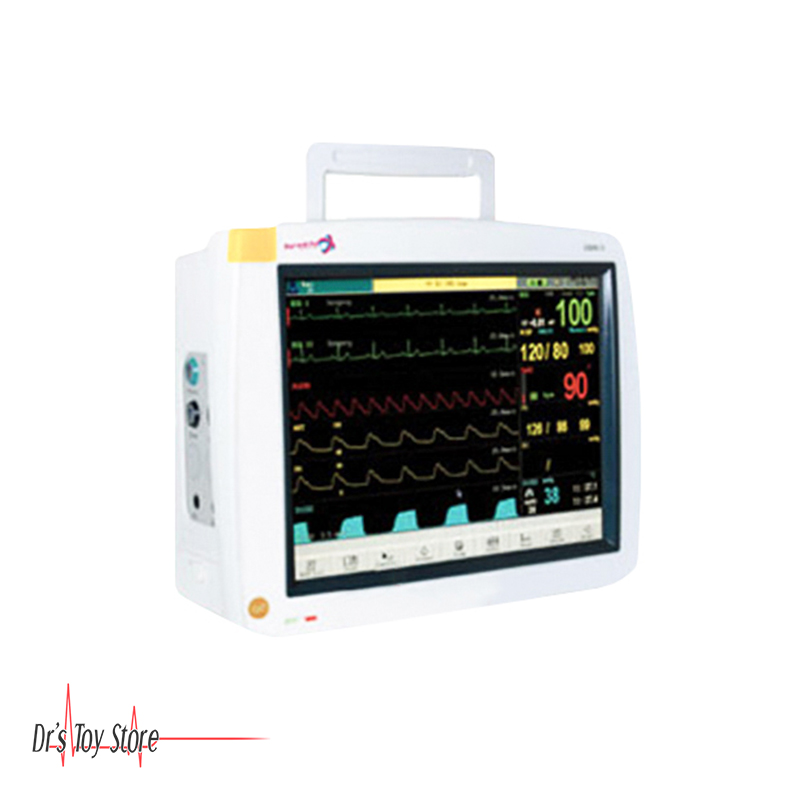

Infinium OMNI II Patient Monitor

Infinium OMNI II Patient Monitor

Having quality, reliable equipment is the key to providing exceptional care to your patients anywhere in the world. Whether you are operating a busy metropolitan hospital or a small remote clinic, we have the patient monitors you need. The Infinium Omni II Patient Monitor is one of our most popular and trusted models, features an easy-to-use, compact design that allows for easy mobility throughout your facility, and it will create space to care for more patients.

Infinium OMNI II Patient Monitor Features

• 12.1” color TFT Display
• Multi-lead ECG monitoring
• Touch screen user interface
• NIBP list and OxyCRG dynamic view display
• Drug dosage calculations
• Large font display with 4, 6 and 8 waveforms
• Network-ready with Central Monitoring System via a wireless or wired network
• S-T Segment and 72 hours trend data analysis
• Multiple language settings
• Optional: Dual IBP, EtCO2, and built-in thermal recorder

INTUITIVE

Designed for a fast paced work environment, the Infinium Omni II patient monitor offers an extremely simple and adaptable user interface. Patient information along with vital sign settings can be quickly modified to meet the needs of a patient’s changing condition. The Omni II offers a high resolution 12.1 inch touch screen to optimize the speed of patient care. The user can therefore make quick screen adjustments, set default settings, alarm limits, and manage up to 72 hours of detailed patient data.

Infinium OMNI II Patient Monitor Specifications

• Display: 12.1” Color Touch Screen
• Trace: 8 waveforms
• Indicator
  • Alarm indicator
  • Power indicator
  • QRS beep and alarm sound
• Trend time: From 1 to 72 hours
• Recorder
  • Built-in, thermal array, 3 channels
  • Record width: 48 mm
  • Recorder paper: 50 mm
  • Record speed: 25 mm/s, 50 mm/s
• Input: 5 lead ECG cable and standard AAMI line for connection
• Lead Choice: I, II, III, aVR, aVF, aVL, V, V1-V6, TEST
• Gain Choice: x0.5, x1, x2, x4
• Frequency Characteristic: 0.05 ~ 35 Hz (+3dB)
• ECG Waveforms: 7 channels
• Penetration Voltage: 4000 VAC | 50 – 60 Hz
• Sweep Speed: 12.5, 25, 50 and 100 mm/sec
• HR Display Range: 30 ~ 300 bpm
• Alarm Limit Range
  • Upper limit: 100 ~ 200 bpm
  • Lower limit: 30 ~ 100 bpm

CONNECTIVE

The Infinium Omni II Patient Monitor offers several connective solutions to network multiple monitors and/or manage patient data on an electronic medical records platform or a HL7 based hospital information system. The Omni II patient monitor offers Ethernet and RS-232 connections with an open source communication protocol. Infinium offers 2 levels of networking and connectivity. The Omni II is HL7 compliant. The HL7 network protocol will allow for all patient information and vital sign trends to be transferred and stored on a hospital information system. For non-HL7 medical facilities, there is the Infinium Omniview central station which allows the real time remote monitoring and network of up to 32 Omni patient monitors. The Omniview archives full disclosure of all patient vital sign trends. The patient data from the Omniview can be very simply saved, stored, printed, and, transferred.
