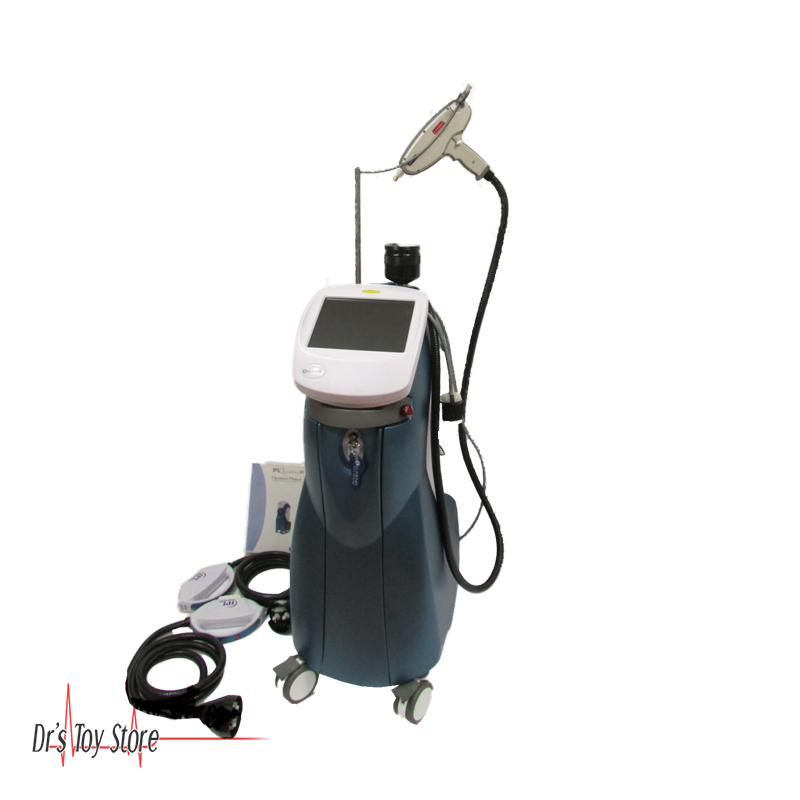

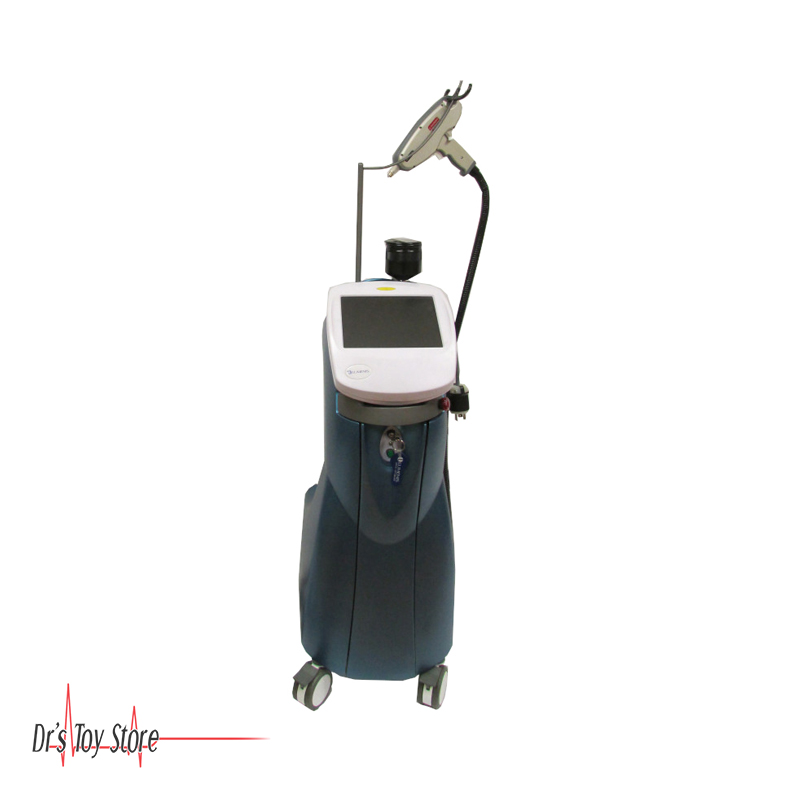

Lumenis Quantum IPL Cosmetic Laser with Handpieces

Lumenis Quantum IPL Cosmetic Laser with Handpieces

Introducing the Lumenis Quantum IPL Cosmetic Laser. Lumenis is a leading developer, manufacturer, and marketer of proprietary laser and intense pulsed light (IPL) systems. Lumenis aesthetic systems are used for a variety of applications including photorejuvenation, wrinkles, scars, hair removal and treatment of vascular and pigmented lesions.

Lumenis Quantum IPL Cosmetic Laser Features

• Large spot size and 2-second repetition rate for quick patient throughput
• High powered and fully adjustable pulse widths allow optimized results
• High peak power short pulses allow treatment of even lighter pigmented lesions untreatable with low powered pulsed light devices
• Multiple Synchronized Pulsing provides optimum treatment of vascular and pigmented lesions while sparing the skin
• Clinically supported with over 10 years of clinical experience
• Simple touch-screen control and suggested settings facilitates treatment for the novice or experienced user
• Lightweight treatment head makes treatment comfortable for the operator
• Integrated surface cooling makes treatment safe and comfortable for the patient
• Integrated calibration system ensures precision with every treatment
• Fast return on investment
• Upgradeable for hair removal, leg vein treatments and tattoo removal to grow with your practice

Lumenis Quantum IPL Cosmetic Laser Applications

• Sun damage
• Age spots (sun-induced freckles)
• Broken capillaries
• Telangiectasias
• Most benign brown pigments

 Lumenis Quantum IPL Cosmetic Laser Specifications

• Light Source: Intense Pulsed
• Heads and Handpieces
  • SR – 560 nm, 590 nm, 640 nm
  • DL – 1064 nm Nd Yag
  • HR = 695 nm
  • QS = 1064 nm Nd Yag Q-Switched
• Pulse Type: 3 preset programs and User defined programs
• Fluence Range
  • 15 to 45 J / cm2 for the 560 nm SR head
  • 20 to 45 J / cm2 for the 590 nm and 640 nm SR head
  • 90 to 150 J / cm2 for the 1064 nm DL head
  • 2 to 12.7 J / cm2 for the 1064 nm Q-Switched QS head
• Spot Size
  • 8 x 34 mm for 560 nm, 590 nm, 640 nm
  • 6 mm for 1064 nm
  • 2 mm, 2.5 mm, 3.5 mm, 5 mm for the 1064 Q-Switched head
• Optical Filter: 560 nm (optional 590 nm and 640 nm)
• Light Guide: Cooled with an embedded cooling system. Two temperature settings of approx. 1 °C and -15 °C
• Operating Screen: 640 x 480 flat-panel touch screen
• Electrical Info
  • 200 V | 16 A | 1 phase | 50/60 Hz
  • 208 V | 16 A | 1 phase | 50/60 Hz
  • 230 V | 13 A | 1 phase | 50/60 Hz dedicated wire
• Dimensions: 16″ W x 22″ D x 42″ H || 73″ High with umbilical support
• Weight: 176 lbs

Our Lumenis Quantum IPL package includes

• Handpieces **LOW SHOT COUNTS**
• Operator’s Manual
• Key
• Power Cord
• Calibration Head
• Water Fill Hose
• Filter Protectors
• Eyewear
