MDE Escort 300A Patient Monitor for Sale

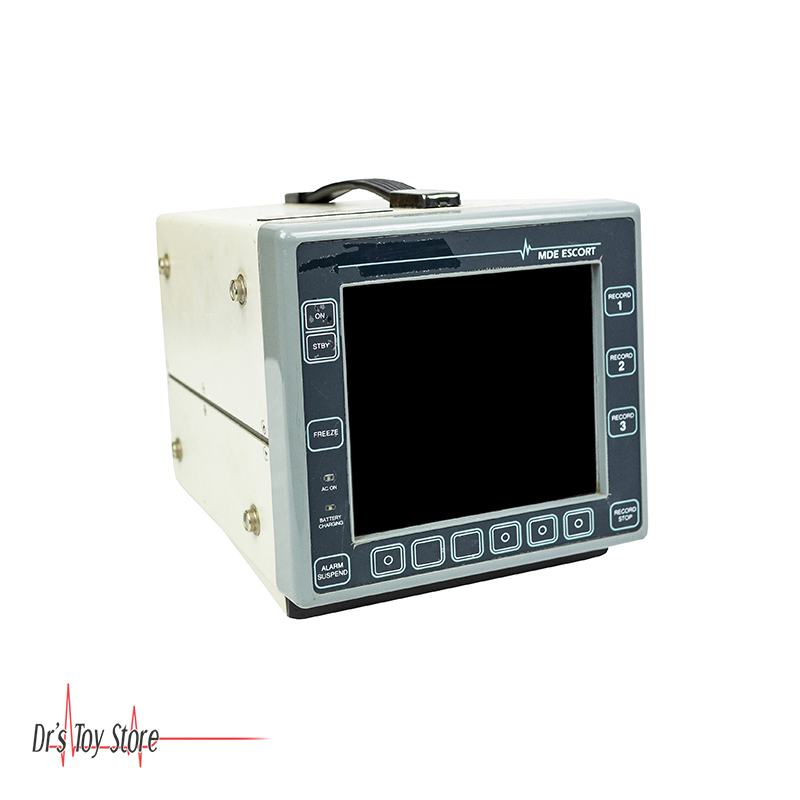

MDE Escort 300A Patient Monitor

Introducing the MDE Escort 300A Patient Monitor for sale.

MODEL: Escort 300A with Defib option 19E
ECG RECORDER: Thermal array
Recording speed: 12.5, 25 mm/sec
Auto or manual print (BATTERY/LINE POWER): Manual, automatic
Data recorded (RESERVOIR): Time, source, speed, date, all parameters
Summary feature: Opt full disclosure at central station
Dimensions: 8-1/2″ L x 7″ W x 7″ H
WEIGHT: 21.5 – 37.5 lbs, depends on config
External outputs: Defib sync, analog, RS232 int, alarm
DEFIBRILLATOR Energy selection, J Internal: 2, 3, 5, 10, 20, 30, 40.5
DEFIBRILLATOR Energy selection, J External: 2, 3, 5, 10, 20, 30, 50, 100, 150, 200, 300, 360
Paddle controls: Charge and discharge only
Waveform shape: Damped sinusoidal
Synchronizer: Automatic
Pediatric paddles: Integrated
Optional paddles: Internal; 3.8, 6.4, 8.9 cm
Disposable electrodes: Adult/pediatric
BATTERY/LINE POWER: Both
Battery type: 12V 2.3 A sealed lead acid
Battery mobility: Removable
Charging system: Internal or external
Charge time, hours: Monitor 14 hr to 90%
Operating time (POWER NEEDED) Monitor 2.5-3 hours depending on configuration
ECG MONITOR Type: LCD/EL
ECG Screen size: 6″
Sweep speed: 12.5, 25 mm/sec
Trace freeze: Yes
Lead configuration: 3, 5, paddles
Through the paddles monitoring: Yes
Hr display: Digital
Heart rate alarms: Yes
Frequency response: 0.5 – 40 Hz monitor, 0.05 – 100 Hz diagnostic
Lead-fault indicator: Yes
Available with SpO2, NIBP, resp, IBP, and temperature
