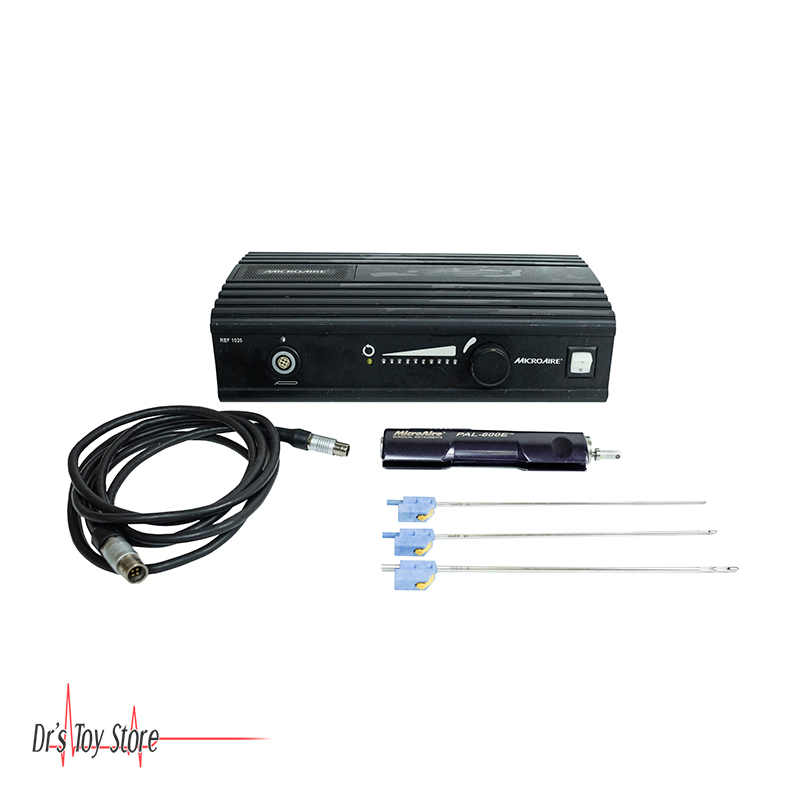

MicroAire 1020 Liposuction Console

MicroAire 1020 Liposuction Console

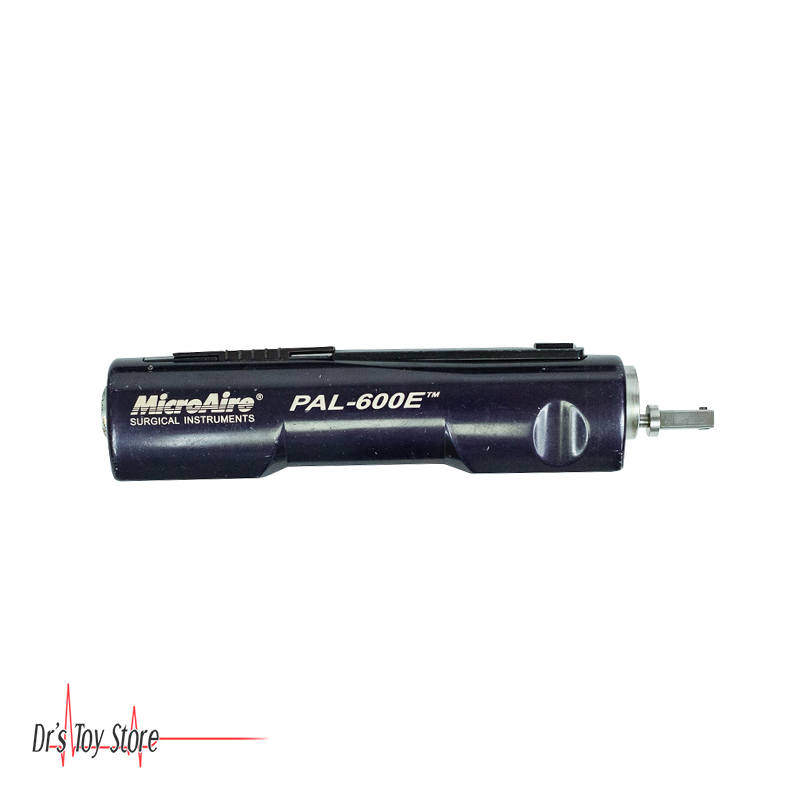

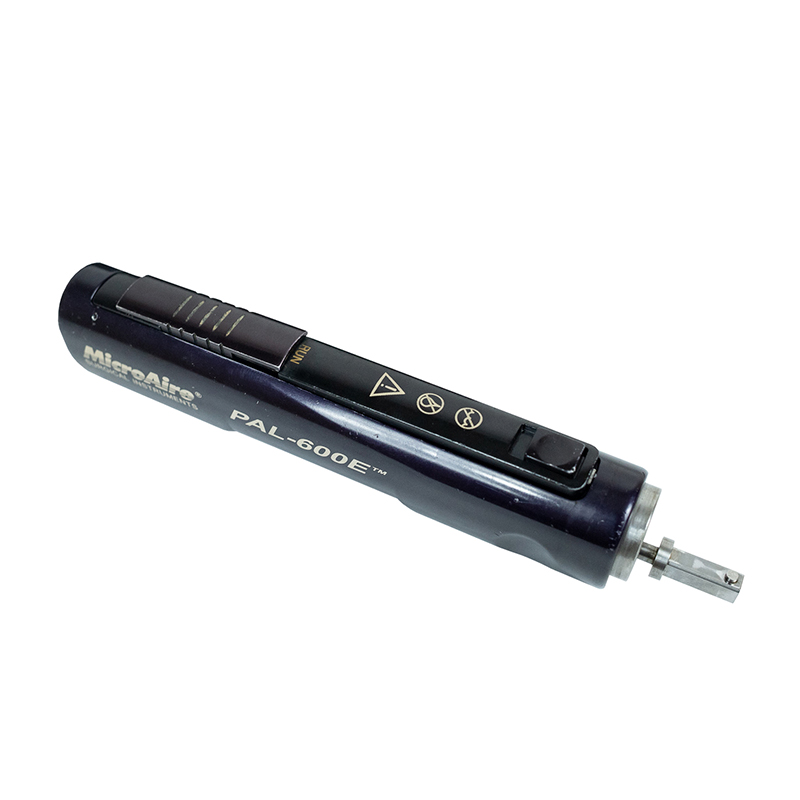

The MicroAire 1020 Liposuction Console is an electronic instrument control console for driving small power instruments, like the Power Assisted Liposuction-600E and Power Assisted Liposuction-650 handpieces. It can also operate MicroAire Series 1000 Electric Instruments such as wire drivers, saws, and drills.

Not for use with the 1641 Electric SmartDriver or throttle-less instruments using a foot pedal.

The MicroAire 1020 Liposuction Console generates the signals necessary to run the motor in these instruments at the desired speed and direction as controlled by the operator. The speed is either adjusted by a lever on the instrument or by the knob on the front of the console. The approximate speed of the instrument is indicated by the light display on the front of the console next to the control knob. Intended users are surgeons, physician’s assistants, orthopedic operating room nurses, and circulating nurses.

There are no known contraindications.

MicroAire 1020 Liposuction Console Specifications

• CLASS 1
• Electrical Info: 100 – 230 V | 50 – 60 Hz | 240 W
• Degree of electrical isolation: BF
• Duty Cycle – 1000 Series Instruments: This unit is designed for continuous operation with short-time loading. (1 Minute running; please allow handpiece to cool to room temperature)
• Duty Cycle – Electric Power Assisted Liposuction Handpiece: Designed to operate for up to 20 minutes of continuous use with intermittent operation over a period of 1-2 hours.
