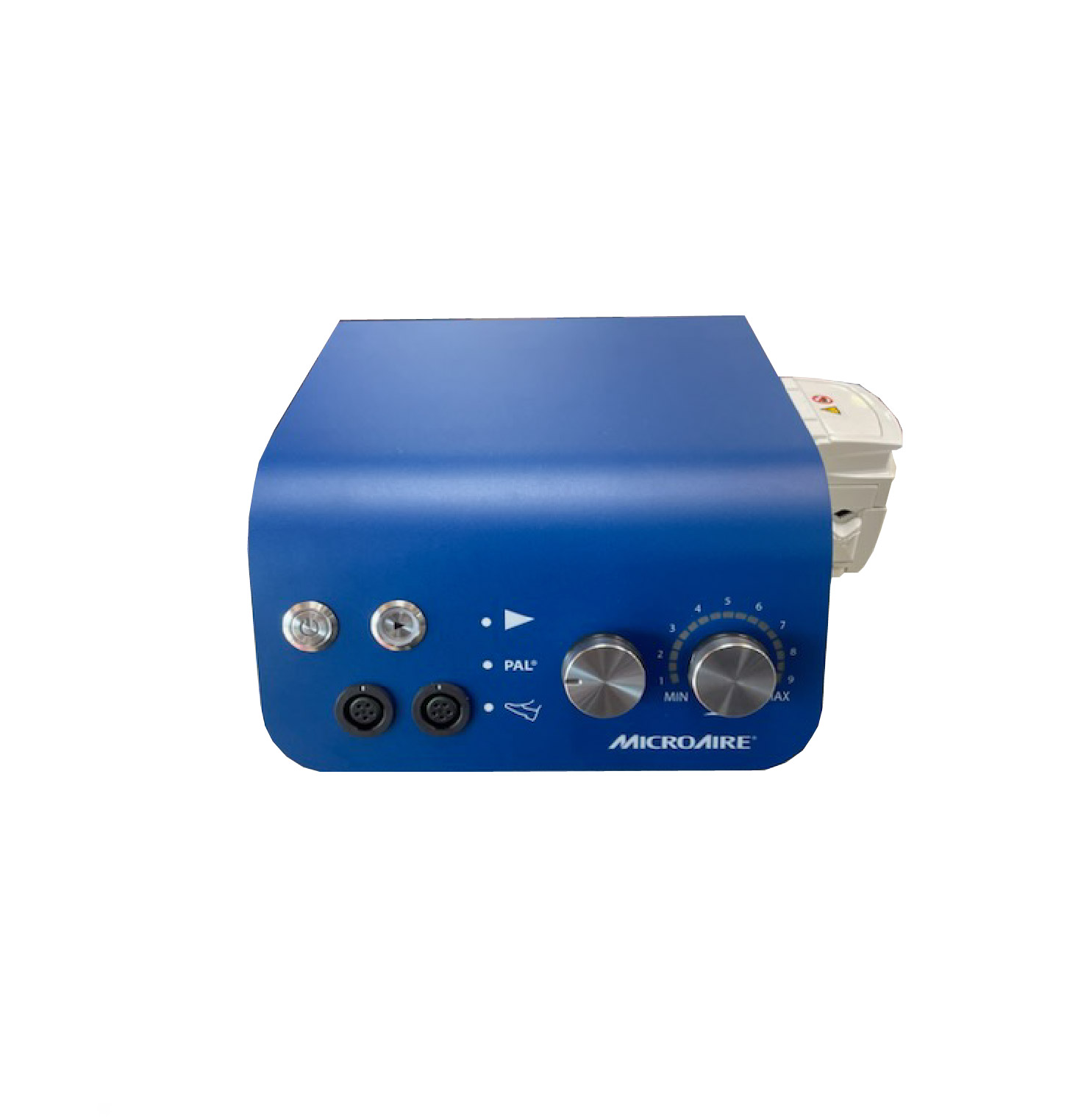

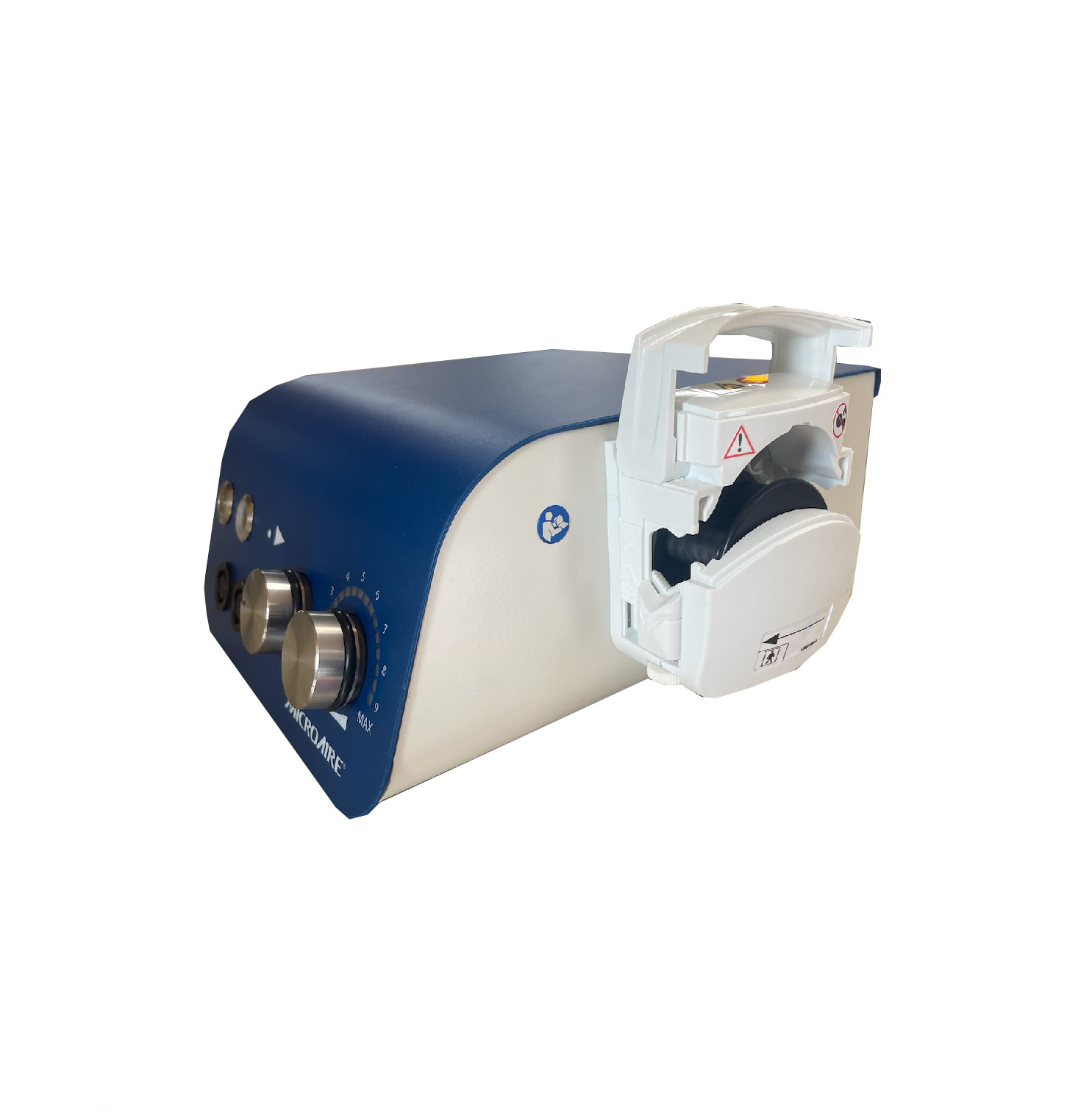

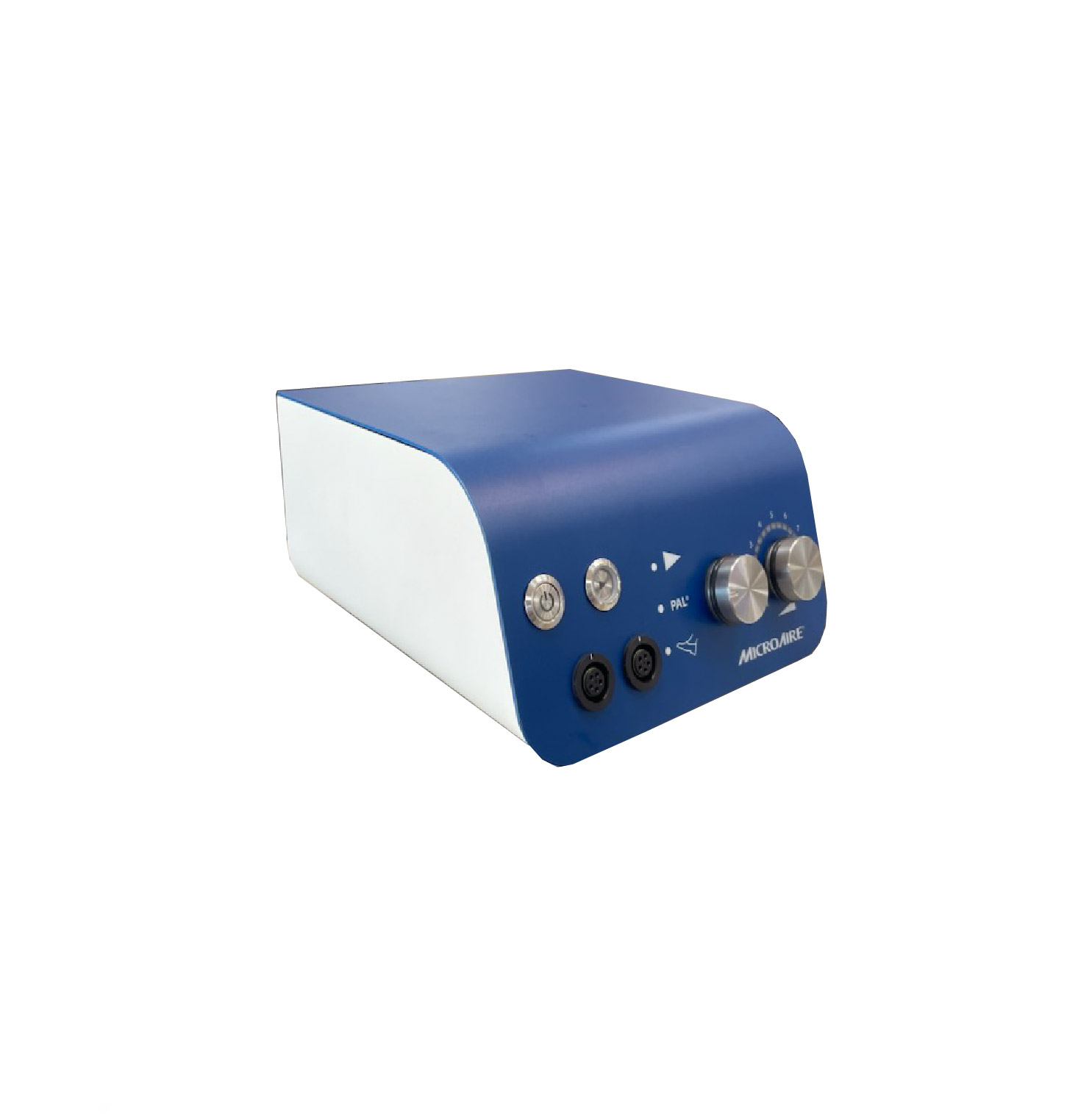

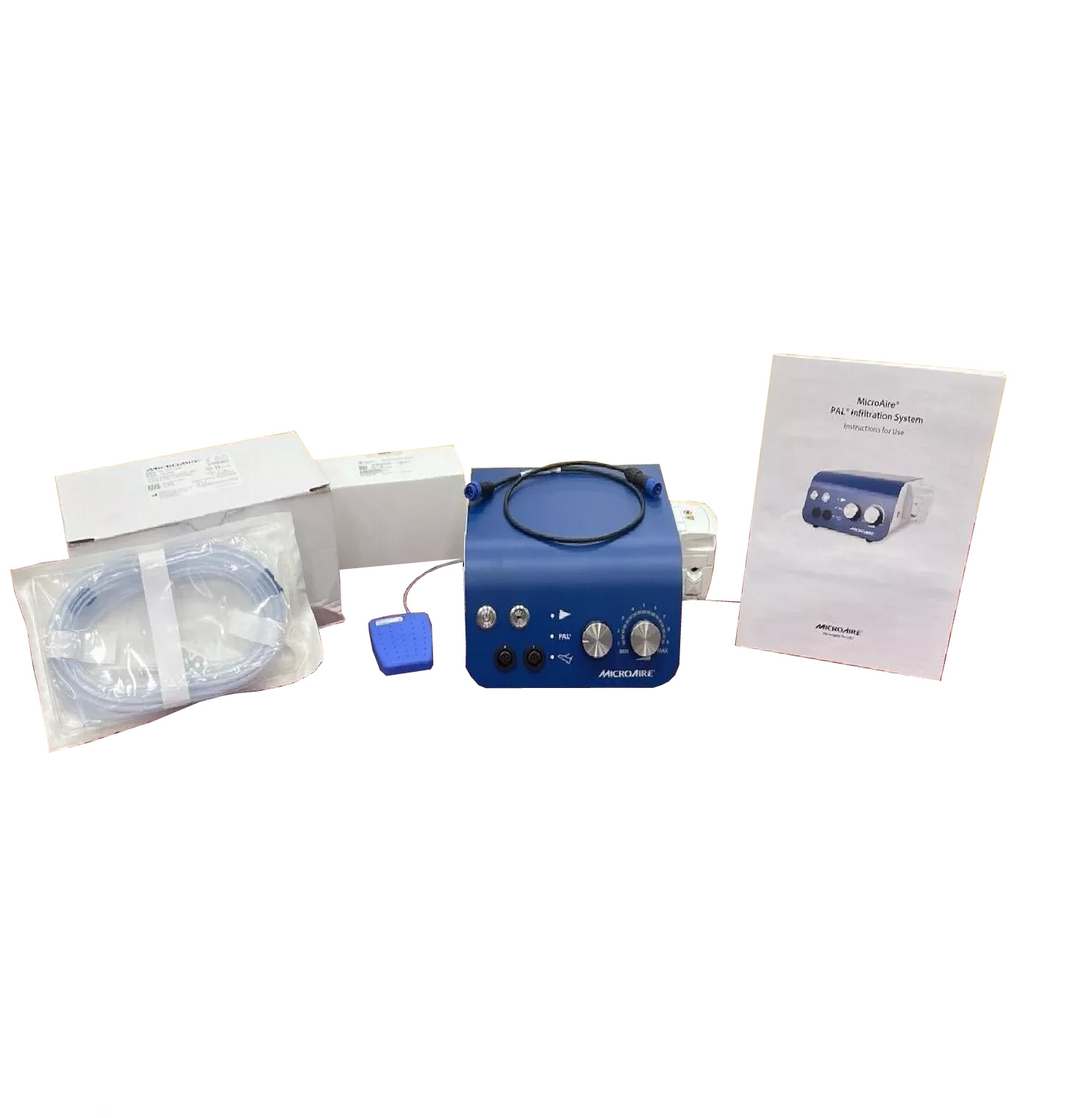

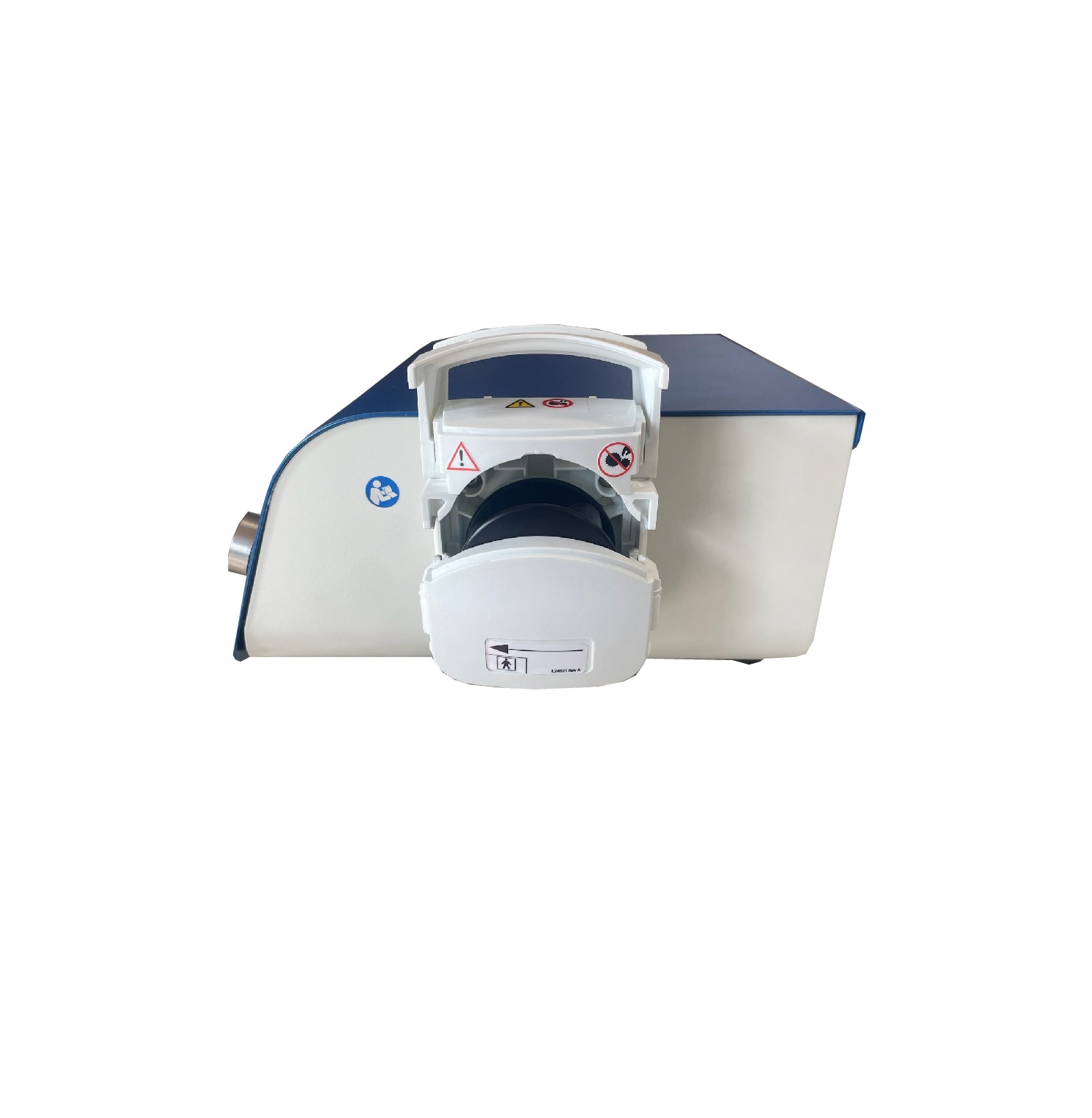

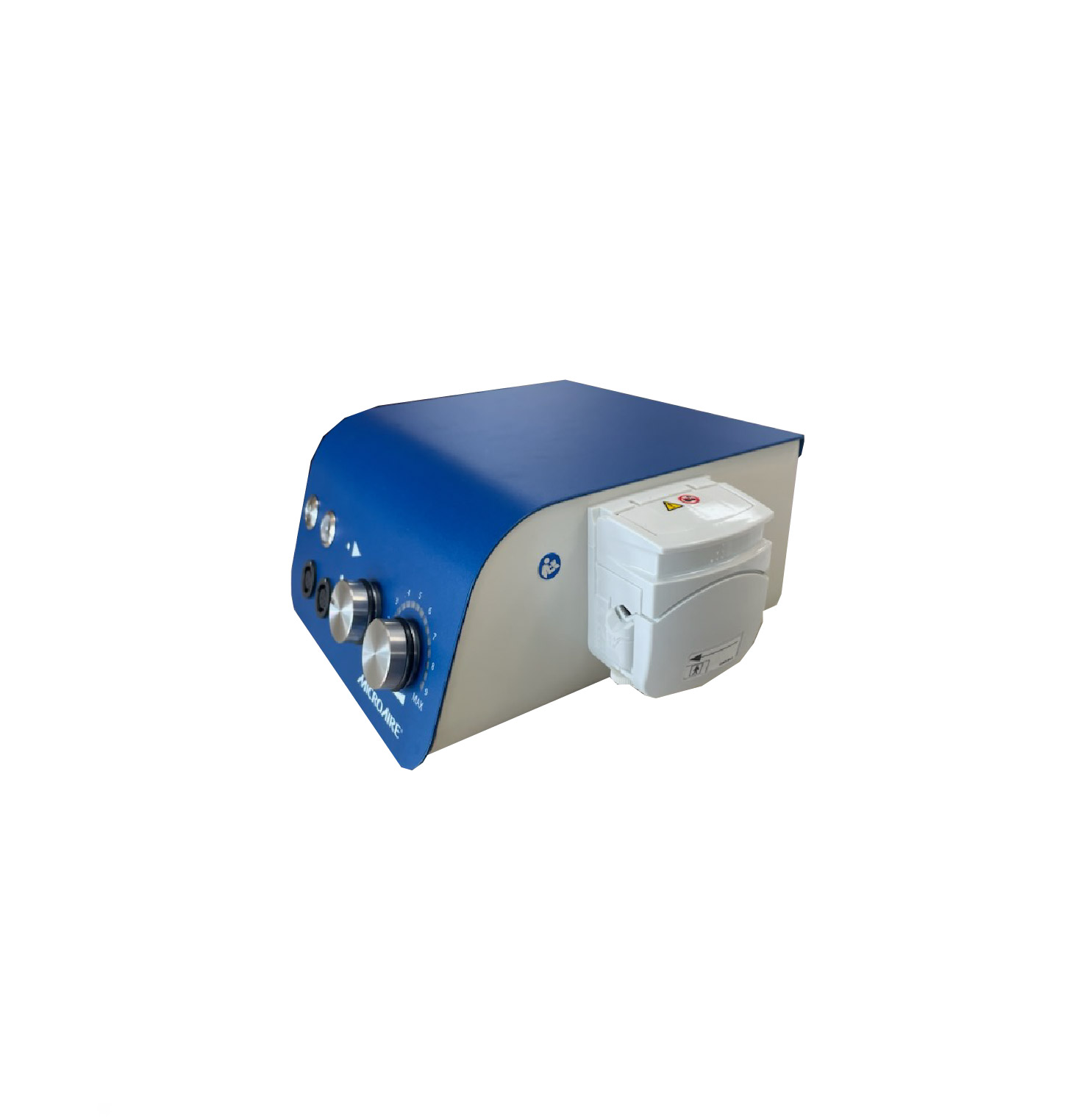

MicroAire PAL Infiltration System

The PAL Infiltration Pump integrates with the PAL System to activate the peristaltic pump from
the PAL-650 Handpiece. Custom electronic controls ensure consistent flow at low speeds and a
cooling fan prevents overheating of the motor from heavy use. PAL Infiltration Tubing eliminates
obstructions with a large-bore design and smooth connections.

Features and Specifications:

There are 3 options for the activation/deactivation of the Infiltration Pump:

In DIRECT/PLAY mode the activation and deactivation of the Pump Head are controlled by pressing the PLAY button. When this option is selected the PLAY button will illuminate. This mode can also be used as a priming function.
In PAL mode the activation and deactivation of the Pump Head are controlled by the throttle of the MicroAire PAL Handpiece. This option is available when the Infiltration Pump is connected to a 5020 Console with the INF-CBL-5020 cable. The throttle turns the Pump on and off but does not control the flow rate.
In FOOTSWITCH mode the activation and deactivation of the Pump Head are controlled by the Foot Switch.

Features and specifications of the Infiltration Pump include:

Custom electronic controls to ensure consistent flow at low speeds
An internal cooling fan to prevent motor overheating from heavy use
Three rollers for smooth fluid flow
60-watt universal input power supply compatible with USA and international AC power sources
Interlock circuits that stop movement when the pump head is opened
A pump head that accepts all types of infiltration tubing with a 2.4mm wall thickness
Large bore
Single spike
Eliminates obstructions with smooth connection points
Designed to reduce clogging

Maximum Flow Rate: 1,150 ml/min (with PAL® Infiltration Tubing)
Output Torque: 175 oz-in
AC Frequency: 50 Hz or 60 Hz
AC Voltage: 100-240V~
Input Power Rating: 100VA
Weight: 4.23 Kg (9.32lbs)
Dimensions: 29 x 26 x 13cm (11.2 x 10.1 x 5.1in)
Protection Against Electric Shock: Class I Grounded Equipment with Type BF Applied Part
Liquid Ingress Rating: IPX1
