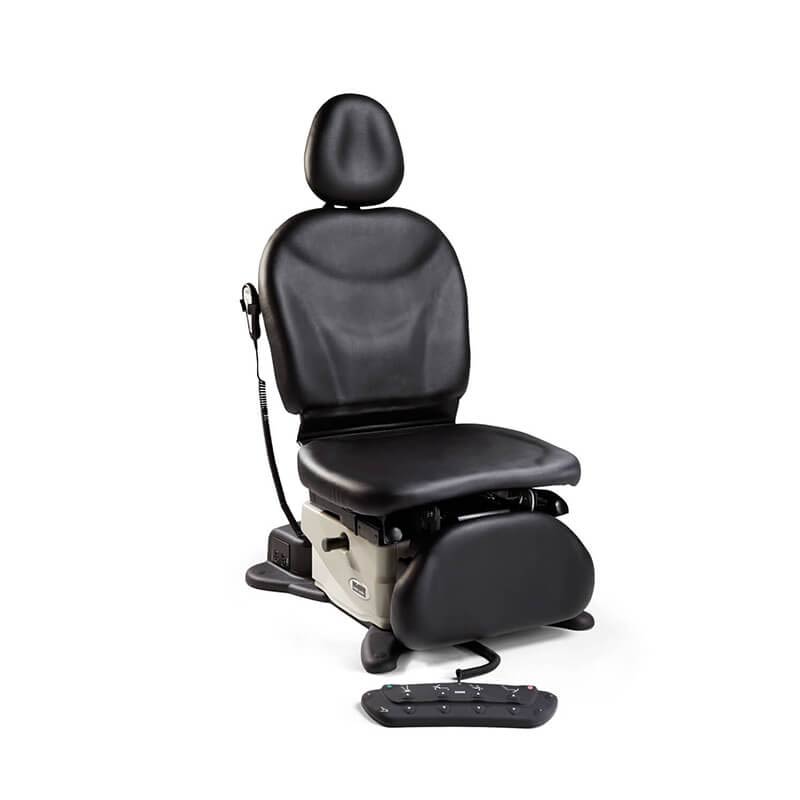

Midmark 630 HumanForm Power Procedure Table

Midmark 630 HumanForm Procedure Table

It’s no secret–the face of healthcare is changing at an unprecedented rate. There are more patients, fewer providers and healthcare is trending patients away from hospitals and into ambulatory care settings. Having the most efficient workflow and the right equipment is more important now than it has ever been. That’s where we come in. The Midmark 630 HUMANFORM Procedure Table provides efficient, precise positioning designed around the people who use them.

Midmark 630 HumanForm Procedure Table Features

Motion Profiling® – moves the table with the patient during positioning to maintain head and back support. This exclusive feature eliminates the need for patients to shift their position as the table back section raises or lowers.

Active Sensing Technology® (AST) – enhances patient and provider protection by helping to avoid harmful impact during movement, such as objects being caught under the seat and footrest.

Premium Comfort System® – utilizes unique contoured upholstery and an adjustable footrest to cradle the patient for a soothing, chair-like feel.

Barrier-Free® Design – addresses the needs of a changing patient demographic with a best-in-class, 18-inch low seat height and 650-pound weight capacity

The Midmark 630 HumanForm Power Procedure Chair is designed to complement the human body with more natural movement and enhanced positioning capabilities.

Midmark 630 HumanForm Procedure Table Specifications

• Patient Weight Capacity: 650 lbs
• Height
  • Minimum 18″
  • Maximum 40″
• Seat Tilt Angle Range: 0° to 30°
• Back Support Angle Range: 0° to 80°
• Foot Support Angle Range: 0° to 90°
• 28″ Upholstery Width Dimensions
  • Headrest: 12″
  • Back support: 26.5″
  • Seat: 28″
  • Foot support: 23″
• 32″ Upholstery Width Dimensions
  • Headrest: 12″
  • Back support: 31″
  • Seat: 32″
  • Foot support: 23″
• Patient Support Surface Length
  • Flat position: 72″ – 76″
• Paper Roll Holder: Holds 18″ x 3-1/2″ paper roll
• Stirrups are standard
• Electrical Info for standard models with receptacle
  • 115 VAC | 50 – 60 Hz | 12 A
  • 230 VAC | 50 – 60 Hz | 6 A
• Electrical Info for rotation models
  • 115 VAC | 50 – 60 Hz | 9 A
  • 230 VAC | 50 – 60 Hz | 4.5 A
• Electrical Outlet Rating: 115 VAC, 3 A
• Safety Standards
  • ANSI/AAMI ES60601-1:2005+A2 (R2012)+A1
  • CAN/CSA-C22.2 NO. 60601-1-6:11 IEC 60601-1-6:2010

Save time and your back with the Midmark 630 HumanForm Procedure Table, the benchmark in patient and provider-centered performance.
