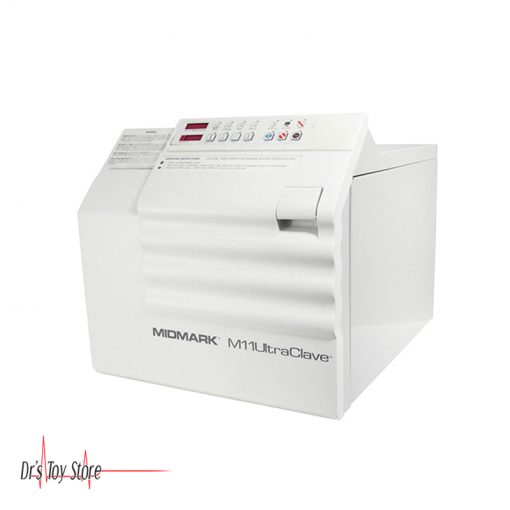

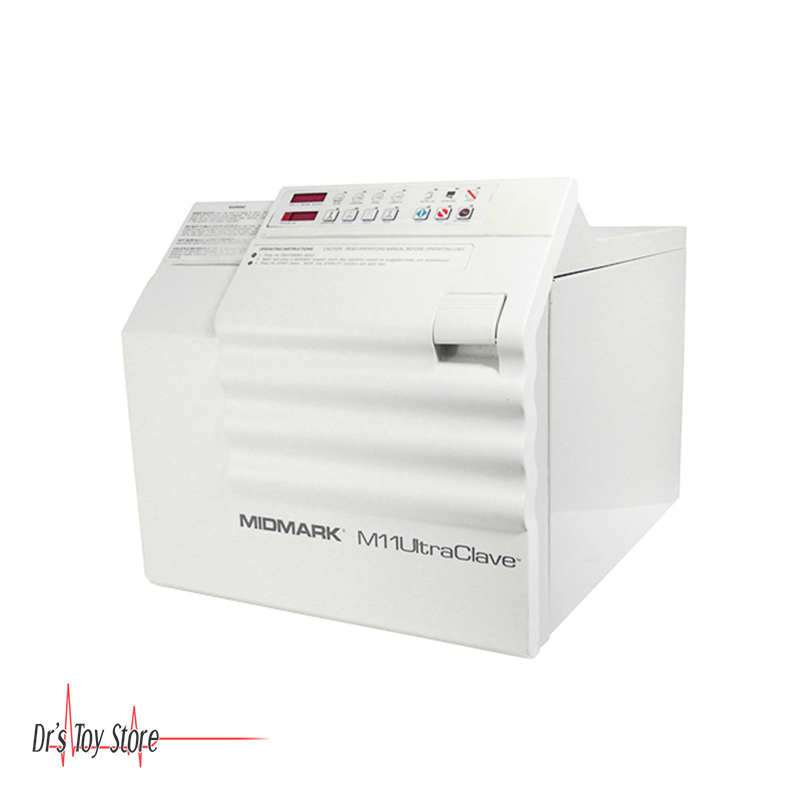

Midmark M11 Ultraclave Automatic Sterilizer
The Midmark M11 UltraClave Automatic Sterilizer provides an intuitive display and simple prompts that help you easily select the cycle you need…whether it is for unwrapped items, pouches, packs or handpieces. Once the sterilization process is complete, the door conveniently opens automatically and quietly to dissipate the steam and provide fast and efficient drying of your instruments.
With one of the largest chamber sizes of any tabletop sterilizer on the market, the Ritter M11 is designed to optimize sterilization output -reducing time and effort, but not effectiveness. The M11’s 11″ x 18″ chamber gives it the distinction of being the largest of any standard countertop sterilizer on the market, making it perfect for larger packs and instruments.
- Fast, easy, and efficient instrument processing
- Reliable and effective infection control assurance
- Automatic opening door for efficient instrument drying
- Maximum space utilization and a complimentary design for your sterilization area
Midmark M11 Ultraclave Automatic Sterilizer Specifications
- Length with plug: 23.8″ (60.5 cm)
- Width: 17.8″ (45.2 cm)
- Overall height w/printer: 17.8″ (45.2 cm)
- Minimum Countertop area: 17.8″ x 21.0″ (45.2 x 53.3 cm)
Chamber
- 11″ diameter (28 cm)
- 18″ depth (45.7 cm)
- 6.5 Gal usable volume (24.6 liters)
Trays
- (1) Large – 9″ W x 15″ L x 1.1″ D (22.9 cm x 38 cm x 2.9 cm)
- (2) Small – 6.6″ W x 15″ L x 1.1″ D (16.8 cm x 38 cm x 2.9 cm)
- NET Weight: 99 lbs. (44.9 kg)
- Shipping Weight: 131 lbs. (59.4 kg)
- Water Reservoir Capacity: 1.4 gal. (5.3 liters)
Electrical Requirements
- 115 V | 50-60 Hz | 15 A I 1 Phase
- 115 V has 1,425 W tubular immersion heater
- 230 V | 50-60 Hz | 10 A | 1 Phase
- 230 V has 1,500 W tubular immersion heater
Safety Standards
- UL61010-1, UL61010-2-040
- CAN/CSA C22.2 No. 61010-1
- CSA C22.2 No. 61010-2-040-07 Part 2-040
Meets the requirements of ASME Boiler and Pressure Vessel Code
