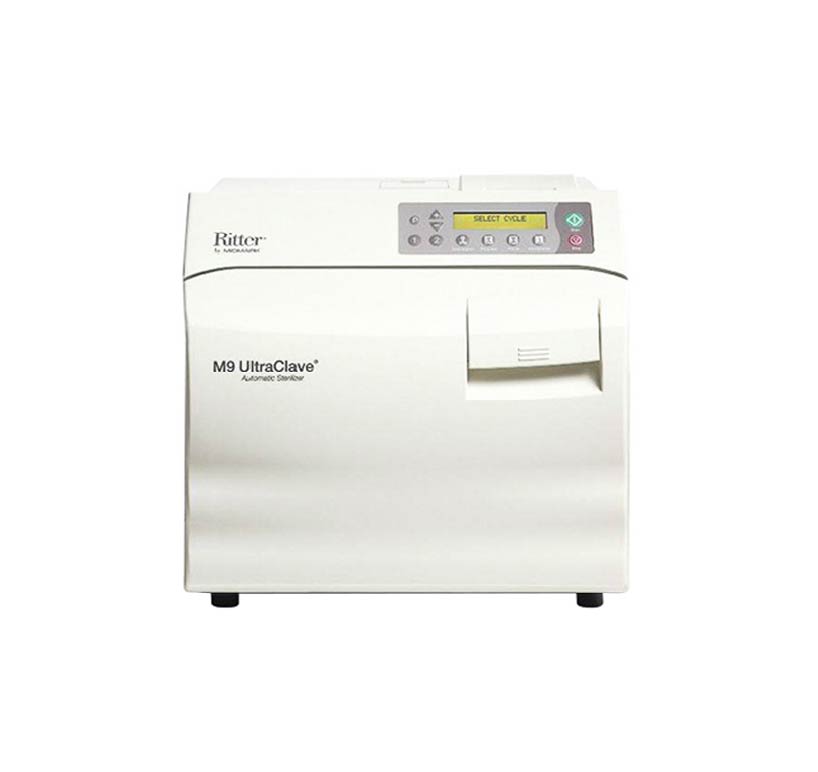

Midmark-Ritter M9 Ultraclave Automatic Sterilizer

 Midmark-Ritter M9 Ultraclave Automatic Sterilizer by Midmark

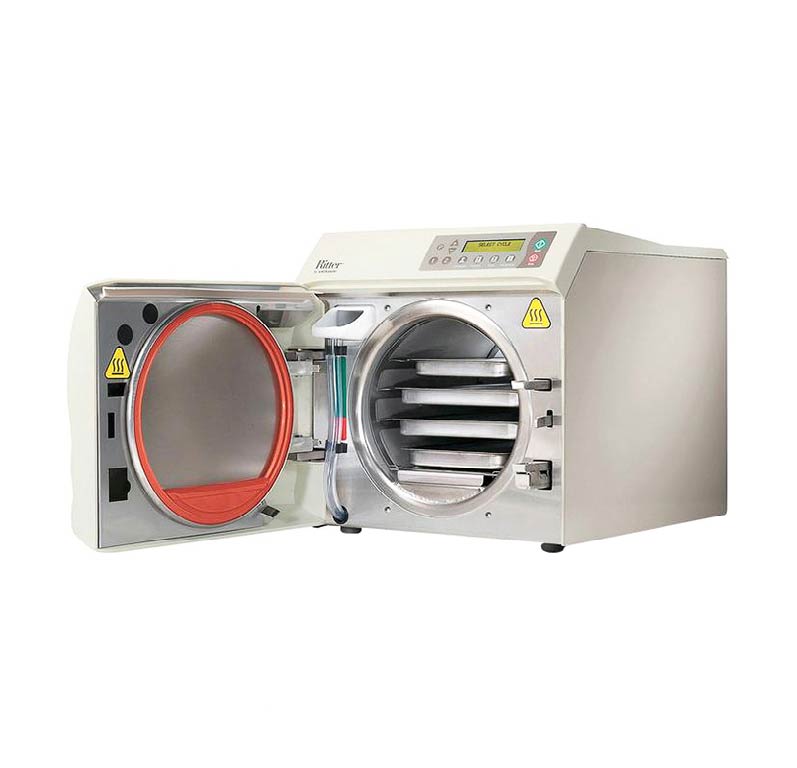

The Midmark- Ritter M9 Ultraclave Automatic Sterilizer couldn’t be easier and is time tested for reliability. You simply load it, set it and forget it. Select your cycle and the time is set for you. Press “Start” and the M9 fills with the correct amount of water. Once the sterilization process is complete, the door opens automatically and quietly to dissipate the steam, giving you fast drying time for your instruments.

Midmark-Ritter M9 Ultraclave Automatic Sterilizer Features

• Exclusive automatic-opening door for ease of use and a quick drying time
• Steam–Flush Pressure Pulse Air Removal System ensures proper steam penetration
• Self Program Controls enable you to create different cycle parameters to meet specific instrument processing needs
• Pre-Programmed Controls for convenience
• LCD Display for easy view of indicators

Midmark-Ritter M9 Ultraclave Automatic Sterilizer Specifications

• Length with plug: 20.4″ (51.8 cm)
• Width: 15.3″ (38.9 cm)
• Overall height with printer: 15.8″ (40.1 cm)
• Minimum Countertop area: 15.3″ x 17.9″ (38.9 cm x 45.4 cm)

Chamber

• 9″ diameter (22.9 cm)
• 15″ depth (38.1 cm)
• 3.5 Gal usable volume (13.4 liters)

Trays

• Two large –7.3″
• W x 12″ L x .8″ D
• (18.6 cm x 30.5 cm x 2.2 cm)
• Two small – 5.6″ W x 12″ L x .8″ D
• (14.3 cm x 30.5 cm x 2.2 cm)

Specifications

• Unit weight: 73 lbs. (33.1 kg)
• Shipping weight: 81 lbs. (36.7 kg)
• Water reservoir capacity: 1.1 Gal (4.1 liters)

Electrical Requirements

• 115 V | 50-60 Hz | 15 A | 1 Phase
• 115 V has 1,425 W tubular immersion heater

Ritter Midmark  M9 Ultraclave OLD Style
