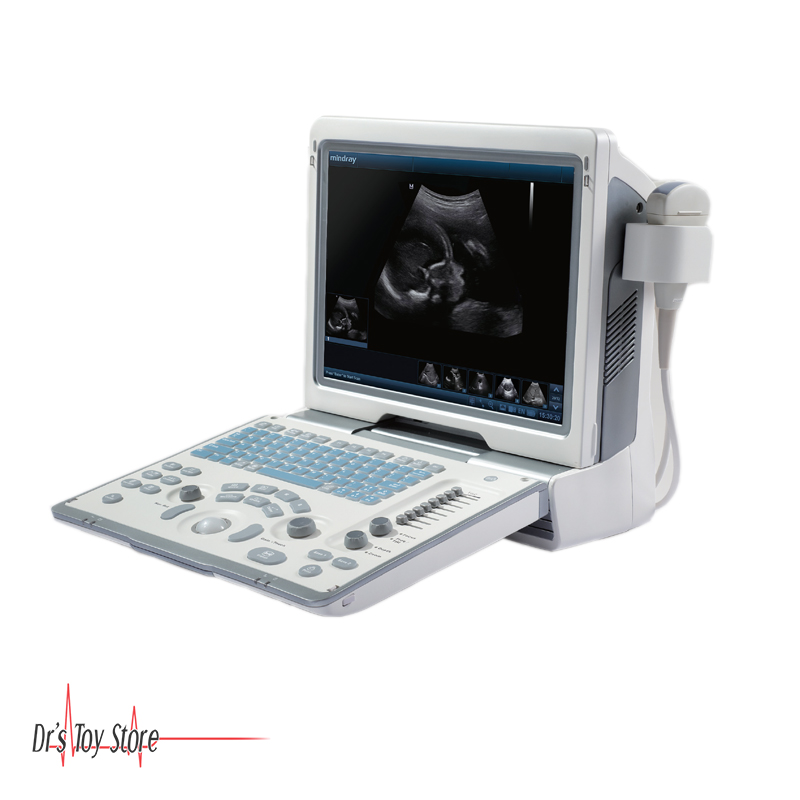

Mindray DP-50 Ultrasound Machine

Mindray DP-50 Ultrasound Machine

The Mindray DP-50 Ultrasound System provides the versatility and flexibility through intelligent workflow. The DP-50 is engineered to help you get the information you need with an innovative high performance compact B/W system. The DP-50’s X-treme engine and high speed processing power provides outstanding image quality and a complete information management solution.

Mindray DP-50 Ultrasound Machine Applications

• Abdomen
• Urology
• OB/GYN
• Small Parts
• Orthopedics
• Emergency
• Endocavity
• Interventional Medicine

Mindray DP-50 Ultrasound Machine Advanced Imaging Technologies

(THI) Tissue Harmonic Imaging – Utilizing second harmonics generated from tissue boundary layers, THI significantly enhances contrast resolution and improves image quality especially for technically difficult subjects

iBeam – Permits use of multiple scanned angles to form a single image, resulting in enhanced contrast resolution and improved visualization

iClear – Gain improved image quality based on auto structure detection. Sharper ad Continuous Edges, Smooth Uniform Tissues, Cleaner “no echo areas”

Dynamic Beam Forming

(TSI) Tissue Specific Imaging

B Steer, Trapezoid Imaging, Colorization

Exceptional Ergonomics and High Productivity by Design

iTouch – Gain instant auto image optimization in B and PW Modes on the click of a single key

iStation – Mindray’s unique Patient Information Management System allowing you to integrate, review, archive and retrieve patient data effectively

iZoom – View small structures like the fetus heart with the help of large scale pan and spot zoom, providing complete and accurate measurements in a professional report template specifically for OB/GYN exams

Mindray DP-50 Ultrasound Machine Specifications

• Dimensions
  • Unfolded: 16 1/3″ W x 18 3/4″ D x 15 1/2″ H
  • Folded: 16 1/3″ W x 7 1/2″ D x 14 3/4″ H
• Weight: 17 lbs
• Electrical Info: 100 – 240 V | 50 – 60 Hz | 1.5 A | 500 W
• Battery Info
  • Lithium-ion | 14.8 V | 660 mAH
  • Charge Time: ~ 3 hours (system is off, connected to AC)
  • Endurance Time: ~ 2 hours

• Display: 15″ LCD, 1024 x 768
• Screen Saver: Yes, time presettable
• Screen Tilt: 30°
• Control panel: Alphanumeric and Function keys
• Key Backlight: Brightness & Volume presettable
• Integrated Speakers
• Indicators: Power / Battery / Standby / HDD status
