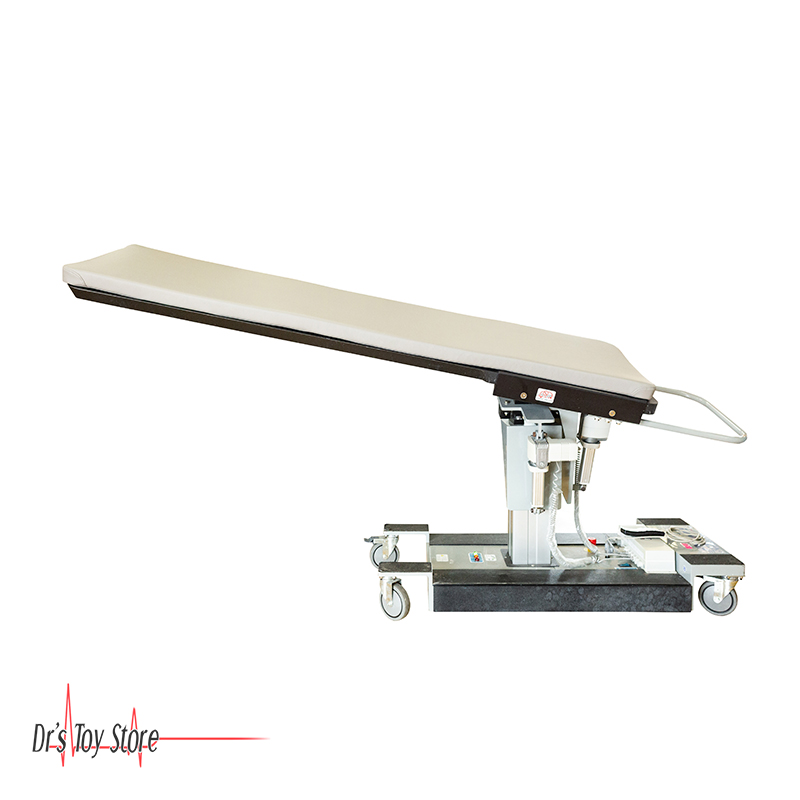

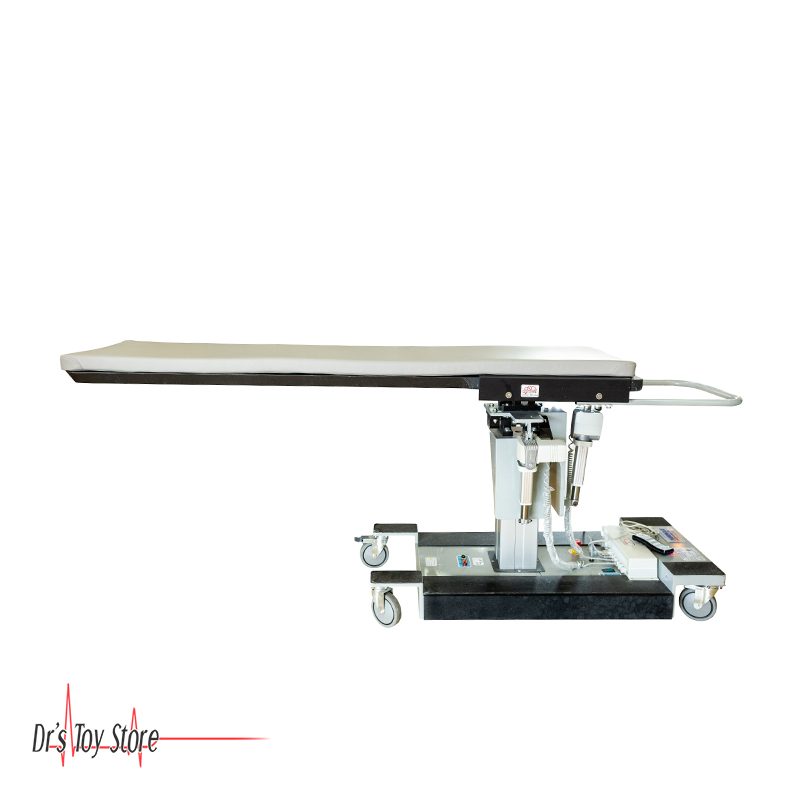

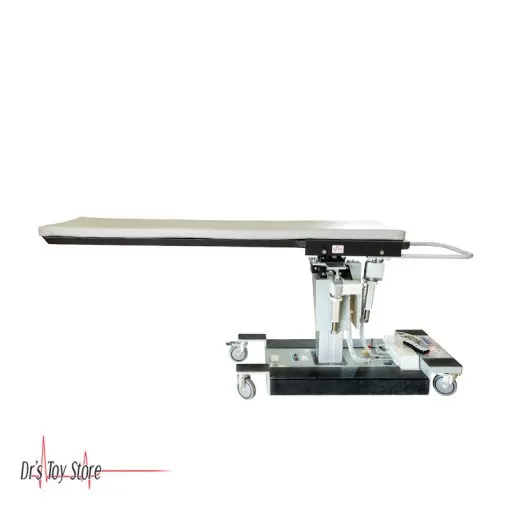

Morgan MEDesign Basic-One C-Arm Table
The Morgan MEDesign Basic-One is a reliable C-Arm Table with 3 versatile motions and a carbon-fiber, deluxe stain resistant composite top. Newly upholstered and in good condition, this classic designed c-arm table, has a wired hand held motion control, making usage of the height adjustment, lateral tilt, and trendelenburg/reverse trendelenburg tilts easy to maneuver. With a durable, cantilevered metal frame, the Morgan MEDesign Basic-One C-Arm Table is accommodating to patients up to 400 lbs.
3 MOTION TABLE
- ELEVATION
- LATERAL TILT
- Trendelenburg / reverse Trendelenburg
Morgan MEDesign Basic-One C-Arm Table STANDARD FEATURES (included with table)
- Motorized Motions (1 to 3 Motions)
- Height adjustment (nominal 8″ of travel, 28” low to 36” high)
- Lateral tilt (nominal 12 – 15 degrees)
- Trendelenburg and reverse Trendelenburg tilts (nominal 12 – 15 degrees)
- Rectangular shaped radiolucent carbon-fiber composite top
- Chamfered radiolucent edge treatment
- 78” L x 22” W with cantilevered 55” metal free imaging area
- Comfortably accommodates large patients
- 400 pound distributed patient weight capacity [see below]
- Wired hand-held motion control
- Deluxe table top pad (nominal, medical grade vinyl over high density foam)
- Padded safety strap
- Electrical Specifications: Max Amps 12.5 – Intermittent, 60Hz – 120 VAC
- Table Base Dimensions: 22″ x 50″
- Overall Table Dimensions: 22″ x 92″
- Overall Table Weight: 650 lbs
AVAILABLE ACCESSORIES AND OPTIONS
- MEDeStealth™ Rail Clamp System – two 6″ clamps attach anywhere along the length of cantilevered imagining area
- SCATTER-BAN™ radiation safety accessory
- Rectangular / Face Cut Out Rectangular
- 1 to 3 Motion Foot Pedal Motion Control
