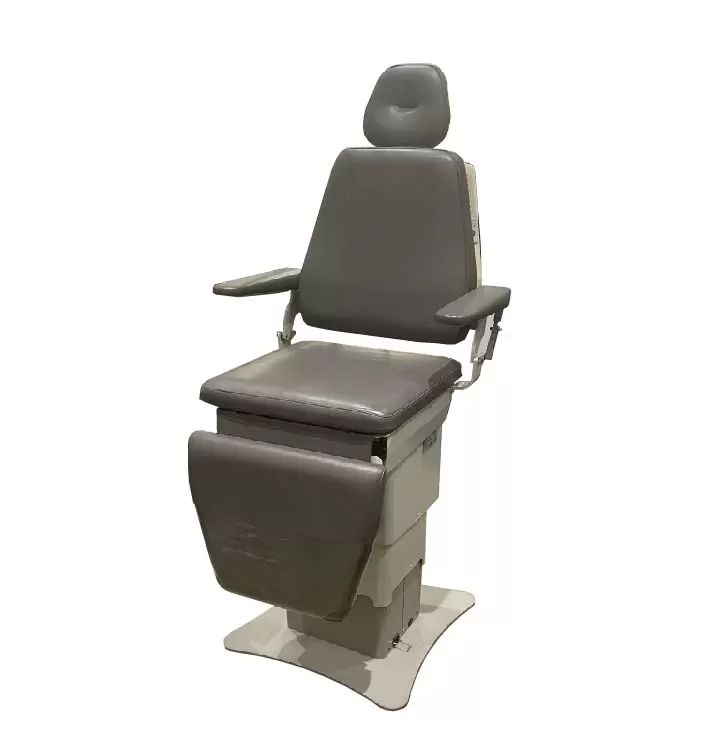

MTI 424 Tri-Power Exam Chair

MTI 424 Tri-Power Exam Chair

The MTI 424 Tri-Power Exam Chair is used by medical professionals who need an exam or minor procedure chair which provides Trendelenburg and a footrest for easy entry. The independent power tilt provides the flexibility to better contour your patient for comfort. In the sitting position, the tilt enables you to “rock” the patient backward to attain a more comfortable upright position. In combination with the coordinated power back/foot function, the chair can be positioned to 15-degrees of Trendelenburg.

MTI 424 Tri-Power Exam Chair Features

• Power lift, coordinated back/foot, and independent power tilt functions
• Ultra quiet 24-volt low voltage DC electric gear motors
• 11.5” or 16” vertical travel power lift base (ADA compliant 19″ and 21″ entry height, respectively)
• Flip-up lock-down arms
• Cast aluminum compensating patient footrest
• Electrically operated lock/unlock of the swivel top
• Articulating headrest of choice
• All steel frame and cushion substrates
• Designer or smooth Velcro®-attached upholstery in standard foams (optional memory foams and Ultraleather styles available)Dual-side back mounted membrane switches with swivel lock/unlock feature, two user-settable program positions, auto return, stop/cancel, and any button cancellation

Articulating Headrest
With a slight turn of the knob, the headrest articulates in two locations making virtually any position possible. Even with the back horizontal to the floor, the knob is easy to adjust.

Flip-up Footrest
The footrest provides easy patient ingress and egress. It reclines as the foot is raised providing a true flat position. If needed, the footrest can be raised up and will lock in the up position.

Easy Swivel Lock
The 340-degree swivel chair top actuated by pressing a button on the back mounted membrane switches electronically unlocks the swivel; no more leaning over to activate the swivel. Pressing the swivel button again will lock the swivel. For safety and security, the swivel will automatically lock after 6 seconds. There are no gears to break or pads to wear out with our swivel lock.

MTI 424 Tri-Power Exam Chair Specifications

• Minimum seat height (ADA Compliant)
  • Low Model: 19”
  • High Model: 21”
• Maximum seat height
  • Low Model: 30-1/2”
  • High Model: 37”
• Maximum vertical elevation
  • Low Model: 11-1/2”
  • High Model: 16”
• Section Dimensions
  • Back Section: 19” tapering to 13” wide x 21” long
  • Seat Section: 19.5” wide x 19” deep
  • Foot Section: 18” tapering to 12” wide x 23” long
• Maximum width between arms: 19”
• Maximum width w/ arms: 26”
• Maximum Trendelenburg: 15°
• Overall length
  • No headrest extension: 72-1/2”
  • With headrest extension: 78-1/2”
• Electrical Input
  • 115 V | 60 Hz | 4.8 A
  • 230 V | 50 Hz | 2.4 A
• NET Weight: 322 lbs
• Shipping weight: 386 lbs
• Shipping size: 80” x 32” x 34”
• Listed to UL 60601, CAN/CSA ,and IEC 60601
