Olympus BF Type P40 Bronchoscope

Olympus BF-Type P40 Bronchoscope

Introducing the Olympus BF-Type P40 Bronchoscope.

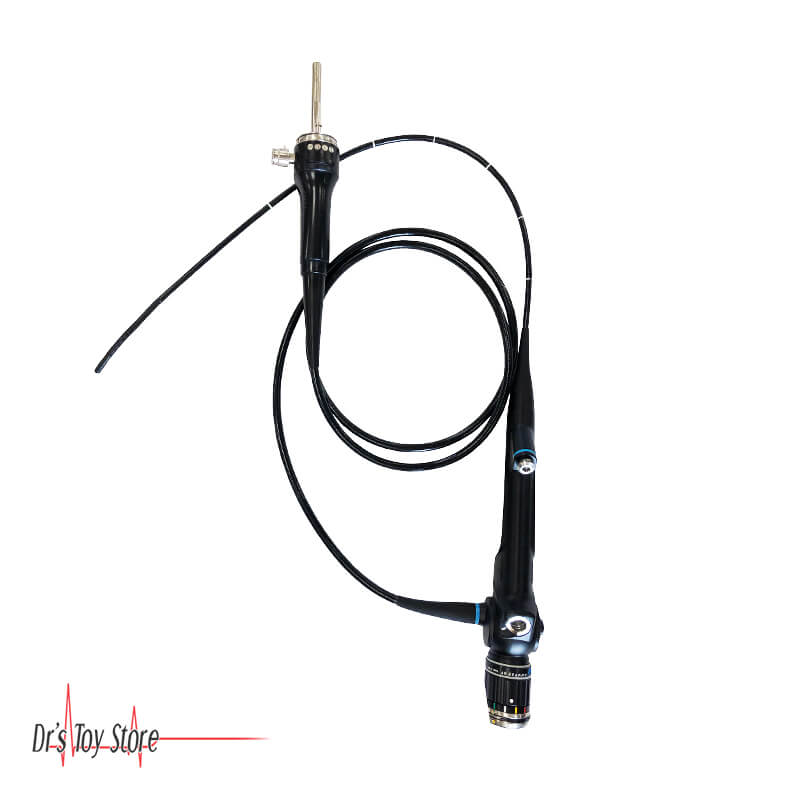

The Olympus BF-Type P40 Bronchoscope, the first in a series of bronchofiberscopes with electrosurgical capability, has the design and features necessary to meet the demand for expanded bronchoscopic diagnostic and treatment capabilities. The scope includes a new control section and ergonomic design to facilitate increased operator comfort. It also provides a wider field of view, a smaller insertion tube and distal end diameter, and greater tip bending range all for easier operation during your procedures. And the BF-P40 includes improved suction and biopsy valves. All these features and more will help you reach a new level of performance in fiberoptic bronchoscopy.

Olympus BF-Type P40 Bronchoscope Specifications

• Optical System
  • Field of View: 120°
  • Depth of Field: 3 to 50 mm
• Insertion Tube
  • Distal End Outer Diameter: 4.9 mm
  • Insertion Tube Outer Diameter: 5.0 mm
  • Working Length –  550 mm
• Instrument Channel
  • Inner Channel Diameter: 2.2 mm
  • Minimum Visible distance – 5 mm from distal end
• Bending Section
  • Angulation Range: Up 180° | Down 130°
• Total Length: 840 mm
• Operating Environment
  • Ambient Temperature: 10 °C to 40 °C (50 °F to 104 °F)
  • Humidity: 30% to 85%
  • Air Pressure: 700 hPa to 1060 hPa
