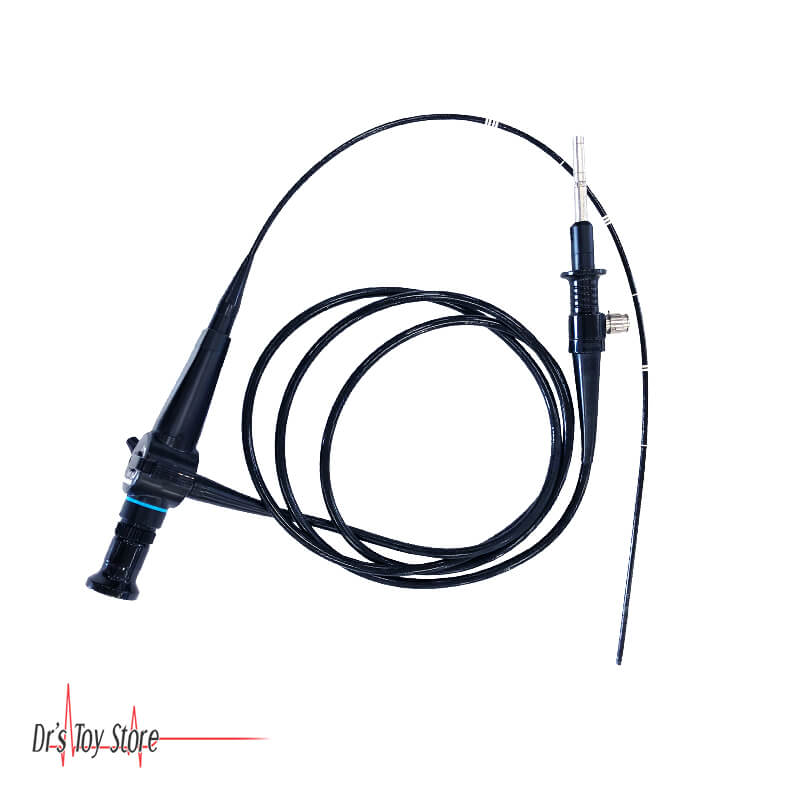

Olympus LF-2 Fiberoptic Intubation Scope

Olympus LF-2 Fiberoptic Intubation Scope

Introducing the Olympus LF-2 Fiberoptic Intubation Scope for Sale.

Compatible with single-lumen endotracheal tubes with an internal diameter of 5.0 mm or greater; double-lumen tubes 37 Fr. or greater 1.5 mm channel for easier aspiration/instillation of fluids Olympus optical technology produces high-quality images for observation Wider field of view (90°) for excellent visualization Insertion tube markers (bands) for quick determination of insertion depth Waterproof for thorough reprocessing.

The Olympus LF-2 Fiberoptic Intubation Scope provides exceptional flexibility and maneuverability for a tracheal intubation fiberscope while still maintaining the same thin diameter its predecessor, the Olympus LF-1, was known for. The Olympus LF-2 insertion tube has a combination of flexibility and stiffness for easier insertion and navigation into the trachea and easier placement of endotracheal/endobronchial tubes. A large 1.5 mm channel permits improved aspiration of secretions.

Incorporating Olympus’ advanced optics along with a 90° field of view, the LF-2 provides excellent image quality and visualization to make it easier for you to quickly and successfully perform flexible tracheal intubation.

Olympus LF-2 Endoscope Fiberscope Features

• Compatible with single-lumen endotracheal tubes with an internal diameter of 5.0 mm or greater; double-lumen tubes 37 Fr. or greater
• 1.5 mm channel for easier aspiration/instillation of fluids
• Olympus optical technology produces high-quality images for observation
• Wider field of view (90°) for excellent visualization
• Insertion tube markers (bands) for quick determination of insertion depth
• Waterproof for thorough reprocessing

Olympus LF-2 Fiberoptic Intubation Scope Specifications

• Optical System
  • Field of View: 90°
  • Direction of View: Forward
  • Depth of Field: 3 to 50 mm
• Insertion Tube
  • Distal End Outer Diameter: 3.8 mm
  • Insertion Tube Outer Diameter: 4.0 mm
  • Working Length: 600 mm
• Instrument Channel
  • Inner Channel Diameter: 1.5 mm
• Bending Section
  • Angulation Range: Up 120° | Down 120°
• Total Length: 830 mm
