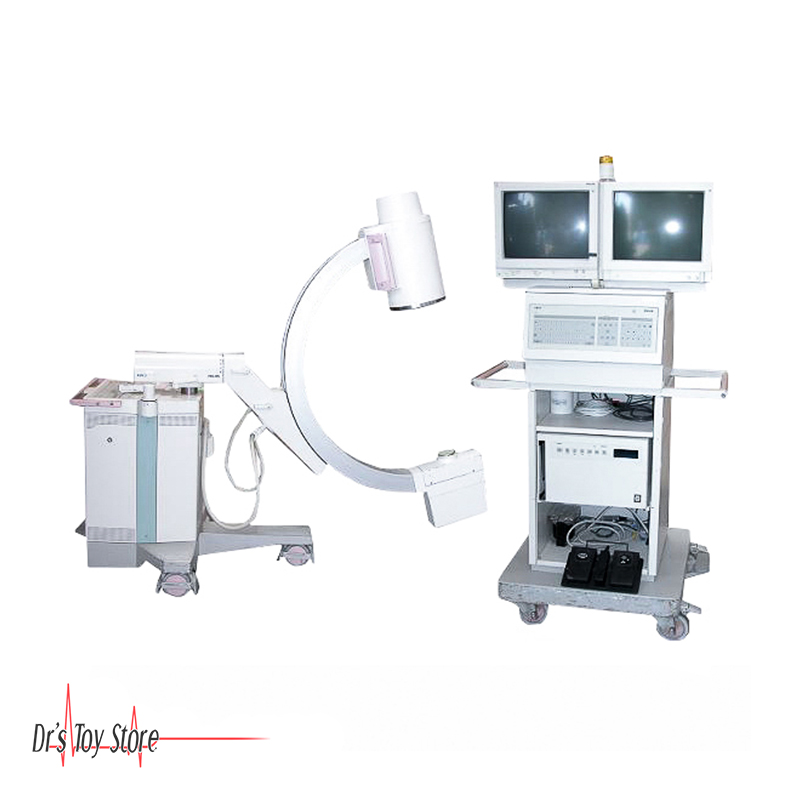

Philips BV 29 C-Arm X-Ray Machine

CALL FOR PRICE

SKU: PBC-290 Category: Tags: ,

Philips BV 29 C-Arm X-Ray Machine

Introducing the Philips BV 29 C-Arm X-Ray Machine for sale.

Philips BV 29 C-Arm X-Ray Machine Features

  • Tri-Mode 9″/6″/4″ Image Intensifier
  • Scopofix 200 Image Storage
  • Dual 17″ Hi-resolution Monitors With Cart
  • Hard Copy Matrix Camera 8″x10″ Format
  • Fixed X-ray Tube Certified
  • CCD Camera
  • Low Radiation Dose
  • Patient Data Keypad
  • Dual Monitors
  • Digital Recorder
  • Last Image Hold
  • Matrix 2:1 Camera
  • Hard Copy Device

Philips BV 29 C-Arm X-Ray Machine Specifications

  • @ 125 V 20mA @ 105 kVp
  • @ 220 V: 20mA @ 105 kVp
  • X-RAY TUBE Heat capacity: 25,000 hu
  • Cooling: 12,000 hu/min
  • X-RAY TUBE Focal spot size
    • Radiographic mode: 1.5 mm
    • Fluoroscopic mode: 0.6 mm
  • OPTIONAL FEATURES: Basic, extended memory storage, angio extension, cine-extension
  • X-RAY TUBE ANODE: Stationary
  • IMAGE INTENSIFIER
    • Diameter: 9″ x 7″ x 5″
    • TV MONITOR SIZE: 17″ dual
    • CASSETTE HOLDER SIZES: 9-1/2″ x 9-1/2″
  • X-ray generator
    • Type: Converter
    • Kv range: 105
    • mAs RANGE: 20
    • Kv range: 40
    • Pulsed fluoroscopy: Yes
  • Monitor Abs control: kV and mA
  • Video storage: Digital memory
  • Max. # of images: 128 (RAM), 190 (hard disk)
  • Image matrix size: 476 x 1400 x 10
  • Last taken image hold: Yes
  • Frame integration: Yes
  • POWER REQUIREMENTS: 120 V | 30 A | 220V | 16 A
  • C-arm dimensions: 45-1/2″ W x 104″ D x 74″ H
  • Weight: 661 lbs (C-arm), 441 lbs (monitor)
  • HARD COPY OPTION: Optionalmatrix camera, video printer, video recorder
  • C-ARM
    • Free space: 30-2/3″
    • Depth: 25″
    • Orbital rotation: +90°/-25°
    • Horizontal travel: 8″
    • Vertical movement: 18″
    • Panning motion: ±10°
    • Pivot rotation: ±205°
    • Reverse position: Yes
  • OTHER SPECIFICATIONS: Image intensifier is fiberoptically coupled to CCD TV system; online edge enhancement and movement detection; 16-image overview.
