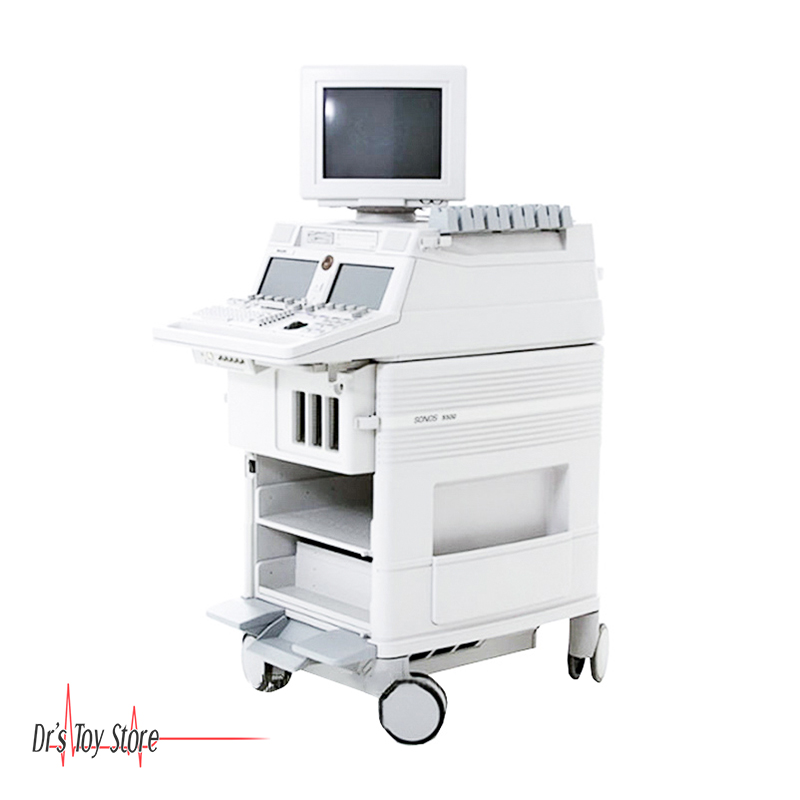

Philips Sonos 5500 Ultrasound System

Philips Sonos 5500 Cardiology Ultrasound System

The Philips Sonos 5500 designed as a premium performance cardiology ultrasound system that incorporated the most advanced imaging technologies of the day for the study of cardiac anatomy, function and viability for both research and clinical applications.

Philips Sonos 5500 Ultrasound System Applications

• Cardiac
• Abdominal
• Vascular
• Small Parts
• EMED
• Breast Exams
• Anesthesia

Philips Sonos 5500 Ultrasound System Features

• Imaging: B-Mode, M-Mode, Color Doppler, Colorization, Spectral steered PW/CW Doppler
• 13.5″ CRT color monitor
• ECG/M-mode including 3 lead ECG cable
• CINE loop
• Acoustic Zoom
• Trapezoidal imaging
• Stress echo
• Lateral Gain Control
• Three electronic switching probe parts
• Integrated SVHS recorder
• Soft echo enhancement
• Fusion Harmonics Imaging
• Cardiac and Vascular calcs / reports software
• High Frame Rate Scanning (Up to 300 Hz)
• Lateral Gain Control, Continuous Loop Review
• Intelligent Acoustic Quantification
• Dynamic Elevating Beam Former
• Curved Linear support for abdominal studies
• Tissue Doppler, Color Kinesis
• Dimensions: 57″ H x 24 1/2″ W x 36″ D
• Weight: 478 lbs

Philips Sonos 5500 Ultrasound System Probes / Transducers

• Blind CW probe (1.9 MHz)
• S4 Adult cardiac phased array probe (2 – 4 MHz)
• Adult cardiac phased array probe (1.8 – 3.6 MHz)
• C5-2 Abdominal/OB curved linear array probe with OB calcs / reports software (2 – 6 MHz)
• Endovaginal curved linear array probe (3 – 7 MHz)
• E6-519 Omni-plane II TE phased array probe (4 – 6 MHz)
• Biplane Pediatric TE phased array probe (5 – 9 MHz)
• Pediatric phased array probe (4 – 8 MHz)
• Neonatal cardiac phased array probe (5 – 12 MHz)
• Vascular TRAP linear array probe (3 – 7 MHz)
• Vascular/small parts TRAP linear array probe (4 – 8 MHz)
• Vascular/small parts TRAP linear array probe (3 – 11 MHz)
• Linear Array (7.5 / 5.5 MHz)
• 11-3L Wide band linear Array (3 – 11 MHz)
