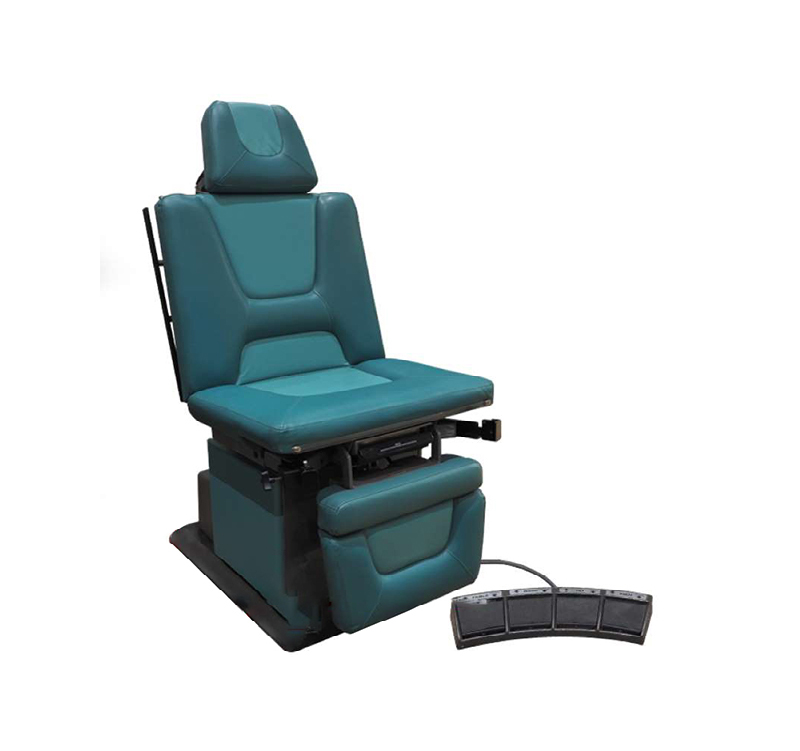

Ritter 75 Special Edition Power Procedure Chair

Ritter 75 Special Edition Power Chair

The Ritter 75 Special Edition Power Chair has 4 way power, making this a great multi-functional procedure chair.

Ritter 75 Special Edition Power Chair is suitable for the following Specialties

• OB/GYN
• Colposcope procedures
• Proctology
• ENT
• Urology
• Laser surgery

Ritter 75 Special Edition Power Chair Features

• Elevation
• Back Rest
• Foot Rest
• Tilt or Trendelenburg (45°)
• Maximum Height: 44″
• Maximum Low: 28″
• Can be re-positioned by the attached foot pedal.
• Weight: 450 lbs.

The Ritter 75 Special Edition Power Chair has 4 independent functions, elevation, back, foot and tilt that are re-positioned by the foot pedal attached.

Ritter 75 Special Edition Power Chair Specifications

• Patient Weight Capacity: 300 lbs
• NET Weight
  • Fixed Base: 462 lbs
  • Rotational Base: 566 lbs
• GROSS Weight
  • Fixed base: 517 lbs
  • Rotational Base: 621 lbs
• Shipping Dimensions: 58″ L x 31″ W x 42″ H
• Table Top Length: 70″
• Table Top Length (headrest extended): 80″
• Table Top Width: 27″
• Overall Width: 27″
• Table Positioning (Adjustable)
  • Standard Base Table Top Height: 26″ to 42″
  • Rotational Base Table Top Height: 28-1/2″ to 44-1/2″
• Oil Used In Hydraulic System: light grade medicinal mineral oil
• Hydraulic System
  • Oil Capacity: 2.5 quarts
  • Motor Pump Reservoir Capacity: 1 quart
• Electrical Requirements
  • 115 VAC Model: 115 VAC | 60 Hz | 12 A | single phase
  • 230 VAC Model: 230 VAC | 50 – 60 Hz | 6 A | single phase
• Power Consumption
  • 115 VAC Model: 960 W
  • 230 VAC Model: 960 W
