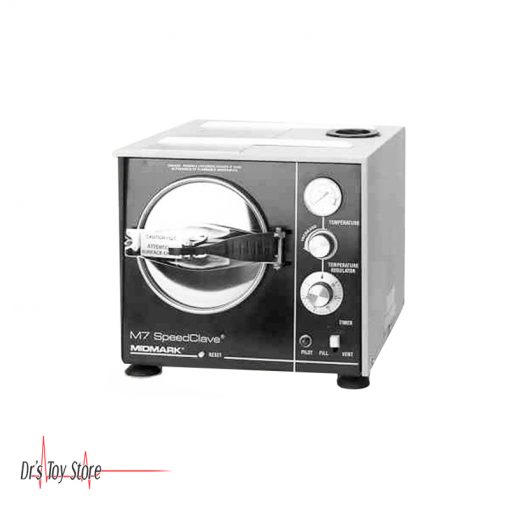

Ritter M7 SpeedClave Autoclave – Classic Style

Ritter M7 SpeedClave Autoclave – Classic Style

The Midmark / Ritter M7 SpeedClave Autoclave is the perfect choice for any doctor or medical facility looking for an effective, manual autoclave at a low price. It has the ability to sterilize both wrapped and unwrapped instruments, linen packs and glassware.

Consider this: starting cold, for unwrapped instruments, it only takes the Ritter M7 SpeedClave Autoclave 9 minutes, and when starting hot, it’s just 6 minutes! Facts like that are among the reason that the Ritter M7 SpeedClave Autoclave is a workhorse that lasts.

Ritter M7 SpeedClave Autoclave Features

• Safety Door
  The safety door on this autoclave automatically seals when pressurized and will not allow the operator to open the door until the chamber is safely depressurized.
• Temperature Regulator
  The temperature regulator allows the operator to preset the temperature at the desired setting between 250º F (121º C) and 270º F (132º C). This control, acting as a thermostat, cycles the heating element on and off.
• Temperature Gauge
  The temperature gauge indicates the temperature inside the chamber. The gauge is graduated in two-degree increments from 80º F (26.7º C) to 270º F (132º C).
• Low Water Cut-out Switch
  The low water cut-out switch prevents “dry burning”. The M7 autoclave will operate only when there is enough water present, which prolongs the life of the heating element. A pilot light is on when the heater is on and cycles on and off during normal operation.
• Cycle Timer
  The cycle timer regulates sterilization time from 0 to 30 minutes and automatically turns the M7 off when the sterilization cycle is complete. This prevents over-sterilization, thus extending the service life of your instruments.

Ritter M7 SpeedClave Autoclave Specifications

• Dimensions
  • Length: 18.12″ (46 cm)
  • Width: 13.56″ (34.4 cm)
  • Height: 12.81″ (32.5 cm)
• Countertop area (minimum depth): 16.5″ (41.9 cm)
• Chamber Size
  • 7.5″ diameter (19.1 cm)
  • 15″ depth (38.1 cm)
• Chamber Usable Volume: 2.4 Gal (9.0 liters)
• Trays
  • (2) Large – 12″ L x 5.62″ W x .88″ D (30.5 x 14.3 x 2.2 cm)
  • (1) Small – 12″ L x 4.12″ W x .88″ D (30.5 x 10.5 x 2.2 cm)
• NET Weight: 30 lbs. (13.6 kg)
• Shipping Weight: 39 lbs. (17.7 kg)
• Water Reservoir Capacity: 1.31 gal. (4.9 liters)
• Electrical Requirements:
• 120 VAC, 60 Hz, 10 AMPS Single Phase
• 120 VAC has 1136 watt tubular immersion heater
• Certification: UL Listed in U.S. and Canada
