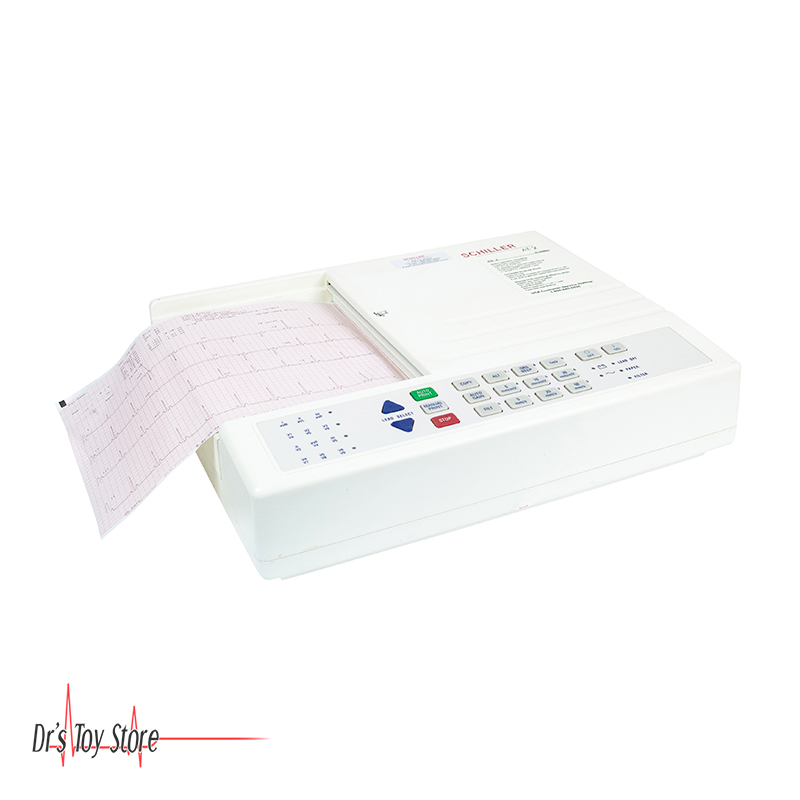

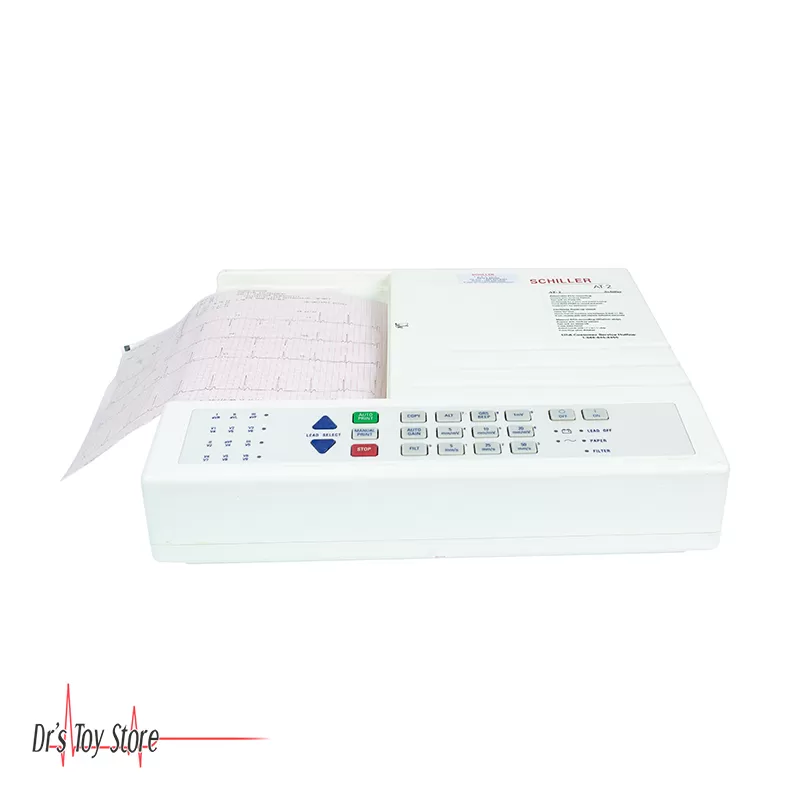

Schiller AT-2 EKG

Schiller AT-2 EKG

The AT-2 is a low cost ECG system with performance features previously only available in high priced systems. Using the latest design and manufacturing technology, the AT-2 provides A4 reports within seconds at the touch of a button.

PDF: Schiller AT-2 English Manual

Schiller AT-2 EKG Features:

• 6/12-channel representation of all 12 simultaneously acquired leads.
• Automatic and manual mode.
• Full size 8″ x 11″ reports (A4).
• Integrated rechargeable battery lasts for up to 400 recordings.
• Single button operation.
• Built-in thermal printer.
• CE labeled.
• Meets or exceeds the U.S. and international quality standards.
• Portable at only 4.8 kg / 11 lbs.

Materials Included

• AT-2 Unit
• Patient Lead Cable
• Pack of Electrodes
• Pack of Paper
• Pack of Clips
• Power Cable
• Manual

Technical Specifications

• Dimensions, L x W x H: 290 x 210 x 69 mm/11.4 x 8.3 x 2.7 inches
• Power supply requirements: 220 – 240 V (nominal), 50/60 Hz or 110 – 115 V (nominal), 50/60 Hz independent operation with built-in rechargeable battery, LED indicator for mains and battery, built-in charger unit.
• Power consumption: Max. 28 VA.
• Battery charging time: 15 hrs. from a completely discharged battery, 3 hrs. to 60 % capacity.
• Battery capacity: 2 hrs of normal use.
• Leads: Standard/Cabrera.
• Patient input circuitry: Fully floating and isolated, defibrillation protected (only with original SCHILLER patient cable).
• Frequency range of digital recorder: 0 Hz to > 150 Hz (IEC/AHA).
• Myogram (muscle tremor) filter: 25 Hz (40 dB/dec) or 35 Hz (20 dB/dec), programmable.
• Line frequency filter: Distortion-free suppression of superimposed.
• Control panel: Pad keys, LED indicators.
