Seiler 935 Colposcope

Seiler 935 Colposcope

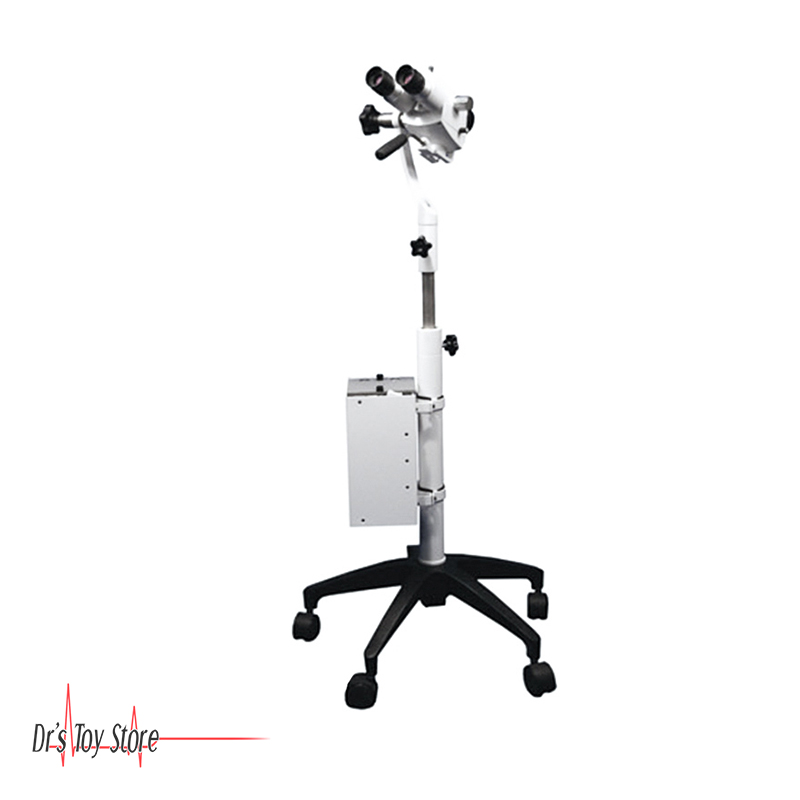

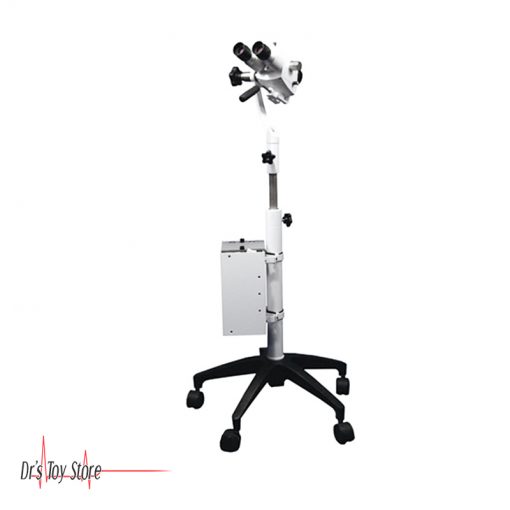

Introducing the Seiler 935 Colposcope for sale. The 935 is the workhorse when it comes to economically priced colposcopes. The 3-step optical pod and 300mm working distance objective lens offers magnifications of 3x, 7x, and 17x and comes mounted on a vertical post and roll-around floor stand. The 935 now comes with a compact 50W LED Illumination System lasting over 50,000 hours.

Seiler 935 Colposcope Features

• Smooth 3-step turret magnification changer offering 3x, 7x and 17x
• 300 mm working distance objective lens (Optional: 175 mm-400mm)
• Widefield 12.5x eyepieces with diopter locks and fold-down rubber eyecups
• Straight binocular head (Optional: Fixed Inclined or Inclinable)
• Maximum height from floor to objective lens – 46 inches
• Minimum height – 34 inches
• Green filter in selector knob
• Small diameter base on roller castors with adjustable vertical post height
• LED Illumination System
• APOchromatic Lenses
• 175-400mm Working Distance Objective Lens
• Digital, Live Video and/or HD Video Capture Card System

Package Includes Seiler 935 Colposcope, Beam Splitter and Camera Adapter. (*Package does not include a camera)

Seiler 935 Colposcope Specifications

• Microscope:Galilean System
• Binoculars: Straight, F = 170 mm (Available Option: Inclined, F = 135)
• Objective: 300 mm (Available Option: 200-400mm)
• Eyepieces: WF 12.5x (Available Option: 10x, 18x)
• Interpupillary Distance: 42 to 75 mm
• Illumination: LED Illumination System
• Light Conductor: Liquid Light Guide
• Filter: Green
• Fine Focus: 11 mm
• Angular Rotation: 360 Degrees
• Height from Floor: 40″ to 47″
• Base: Five casters, Two with brakes
• Total Weight: 40 lbs
• Light Source Type: LED (Light Emitting Diode)
• Power: 50 Watts
• Color Temperature: 6500º K
• Led life: 50,000 hours (typical)
• Brightness control: PWM (Pulse Width Modulation) 0 to 100% Dimming
• Input voltage: 100-240V AC, 50/60 Hz
• Rated Power: 52 Watts
• Regulatory Approvals: UL60601-1, CAN/CSA C22.2 No.601.1 (SUP1+AM2), EN 60601-1-2 and CE marked
• Equipment Class: Class I, BF-Type
• Mode of Operation: Continuous Operation
• Water Resistant: Not Protected Equipment, IPX0
• Operating Temperature: 0° to +40° C (+32° to +104° F)
• Relative Humidity: 0 to 85% rh, non condensing
• Air Pressure: 700 to 1060 hPa
• Storage Temperature: -20° to +60° C (-4° to 140° F)
• Relative Humidity: 30 to 95%rh, non condensing

Seiler Instrument is a contract manufacturing company specializing in high precision machining and optical instrument assembly. In addition, Seiler is a distributor of surveying software and instruments, microscopes, and ZEISS Planetarium equipment. The Seiler foundation is made up of several main divisions including Manufacturing, Geospatial, Medical, and Planetarium. Seiler’s corporate headquarters is located in St. Louis, Missouri, with additional Geospatial sales offices in Indianapolis, Kansas City, Milwaukee, Omaha, and Chicago.
