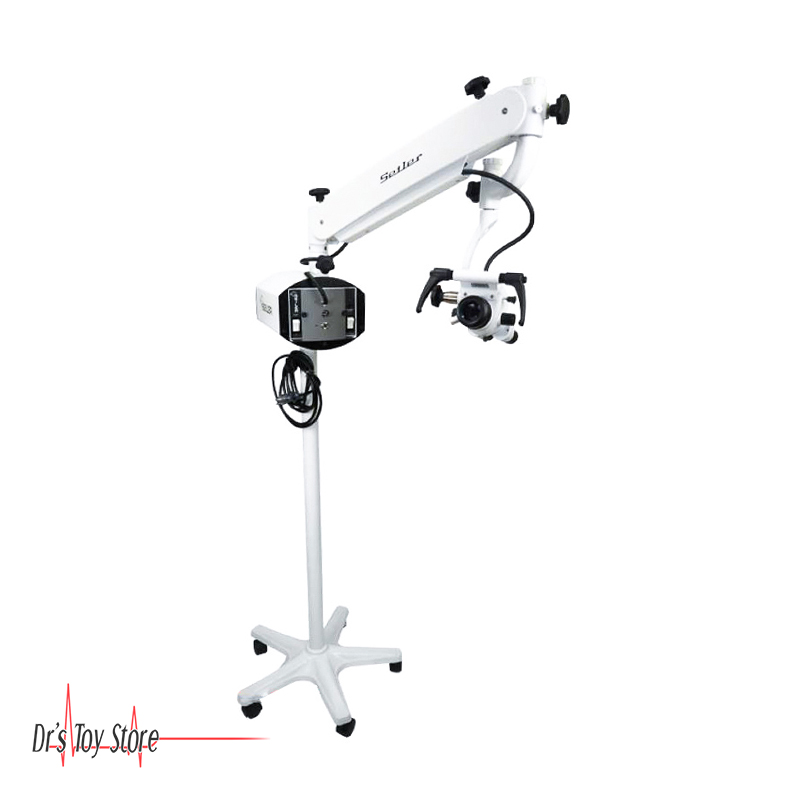

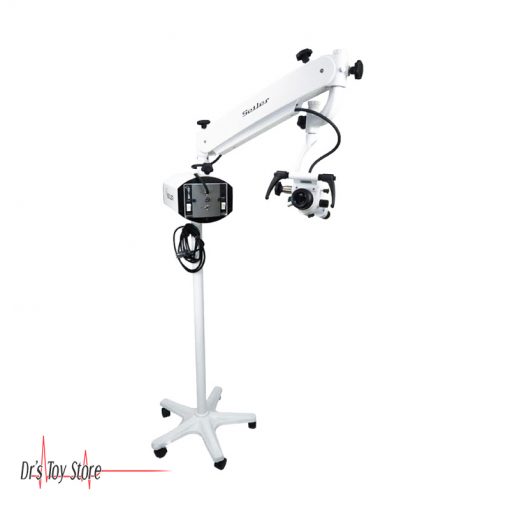

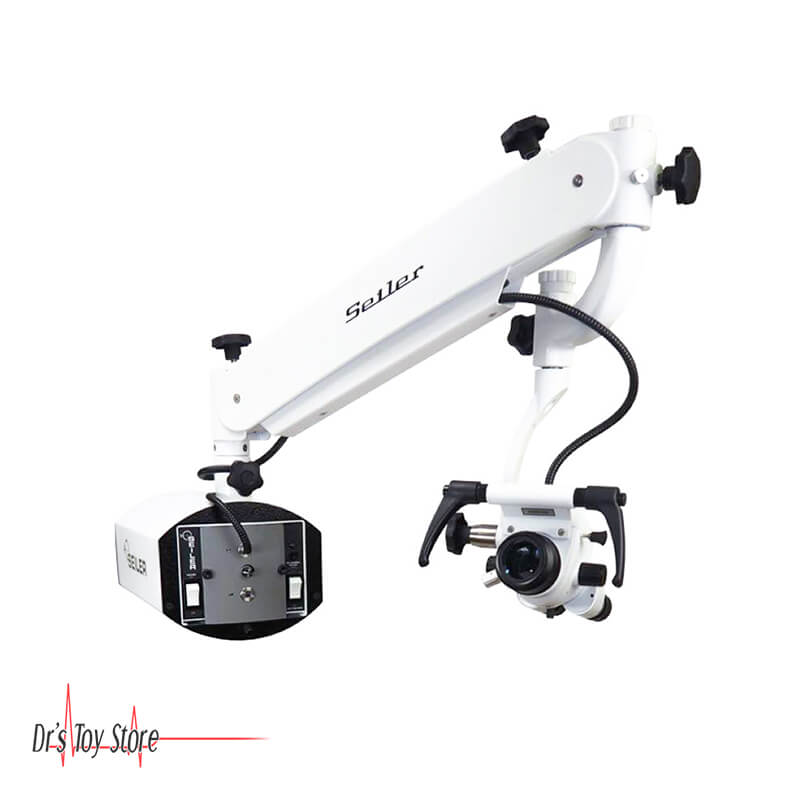

Seiler 985 Colposcope – Over The Shoulder

Seiler 985 Colposcope – Over the Shoulder

The Seiler 985 Colposcope Over the Shoulder is Seiler’s Premier Over the Shoulder model. The mount is set up higher to remove any obstructions from the user’s field. The 985 is equipped with a 5 step magnification turret, 300mm working distance and standard LED Illumination.

Seiler 985 Colposcope Features

• 300 mm working distance objective lens offering 3x, 4x, 7x, 11x and 17x magnification
• Additional magnification/objective lens combinations are available
• Widefield 12.5x eyepieces with diopter locks and fold-down rubber eyecups
• Straight binocular head (Optional: Fixed Inclined, Inclinable)
• LED Illumination System
• Maximum height from floor to objective lens: 54 inches
• Minimum height: 32 inches
• Overall distance from the column to the objective lens: 33 inches
• Green filter in selector knob

Seiler 985 Colposcope Specifications

Colposcope Head

• Microscope: Galilean System
• Binoculars: f= 170 mm (optional: Inclined, f=135 mm)
• Objective (focus): 300 mm
• Eyepieces: Wide angle type 12,5x, adjustable (-6 to +6 dioptries)
• Interpupillary distance: Adjustable between 42 mm and 75 mm
• Illumination System: LED
• Filter: Green
• Macro Focusing: Moving the pantographic arm
• Micro Focusing: Manual, with rack and pinion
• Total weight of the head: 6.6 lbs

Colposcope Stand

• Horizontal reach: 725 mm – first arm 600 mm, second arm 110 mm
• Angular rotation (arms): 340º
• Distance between the floor and the objective: 508 mm to 1143 mm
• Load adjustment: 9 to 15 lbs
• Base: Base with five casters, two with brakes
• Total floor stand set weight: 83 lbs
