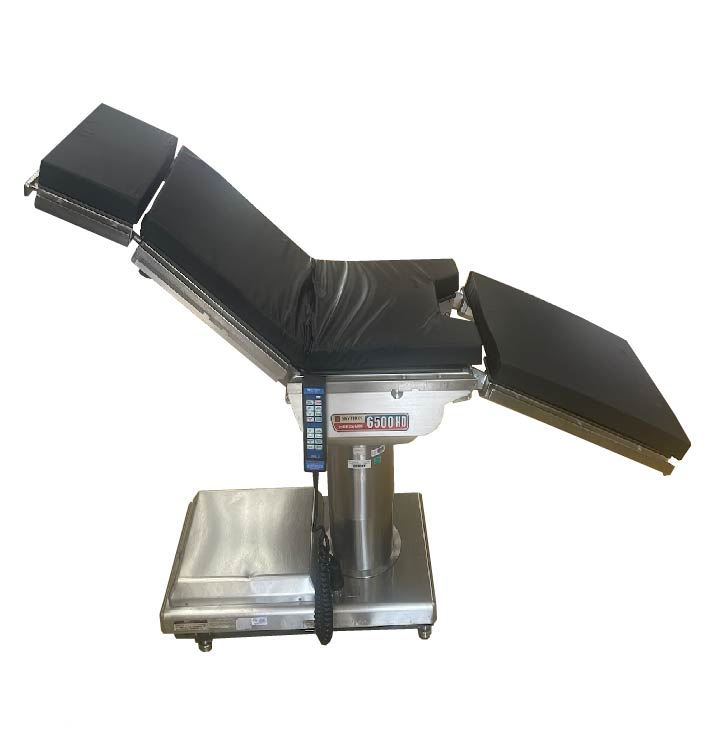

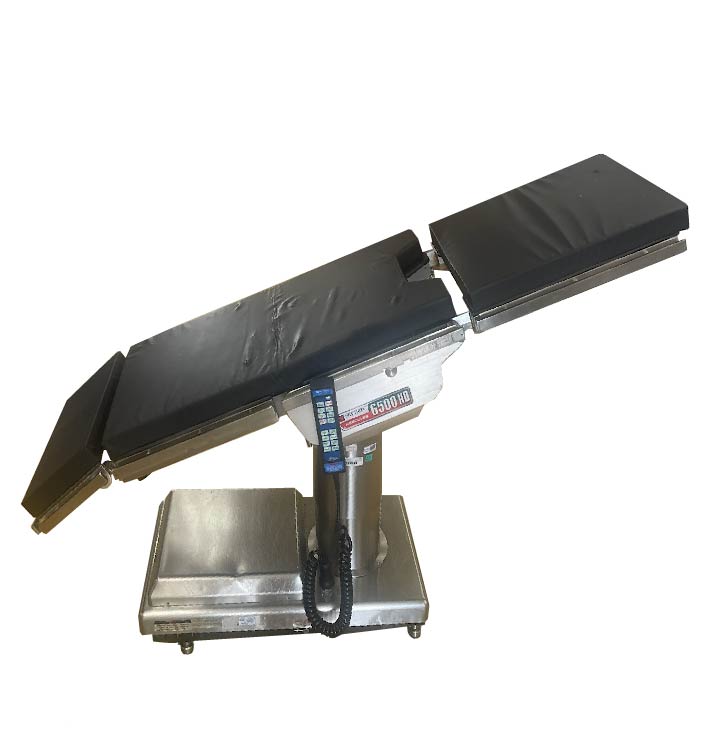

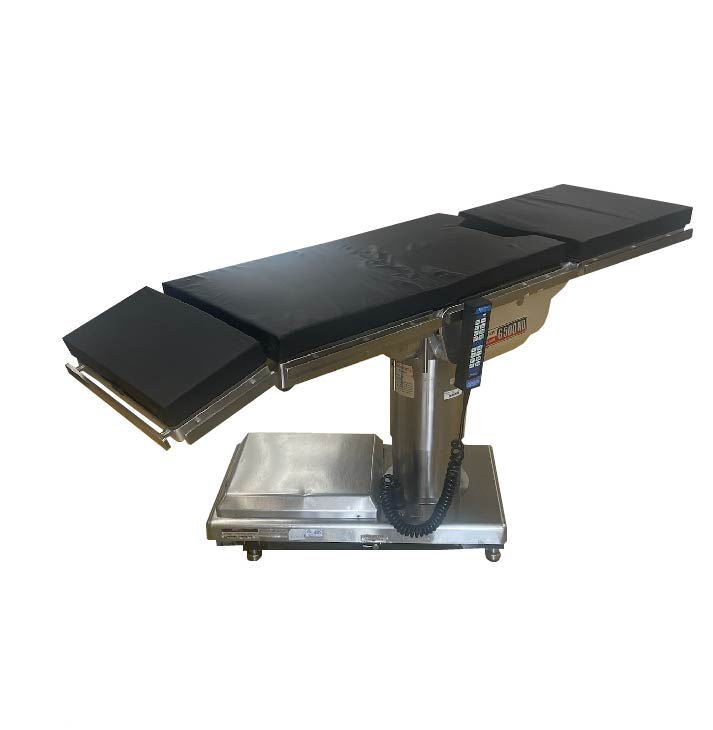

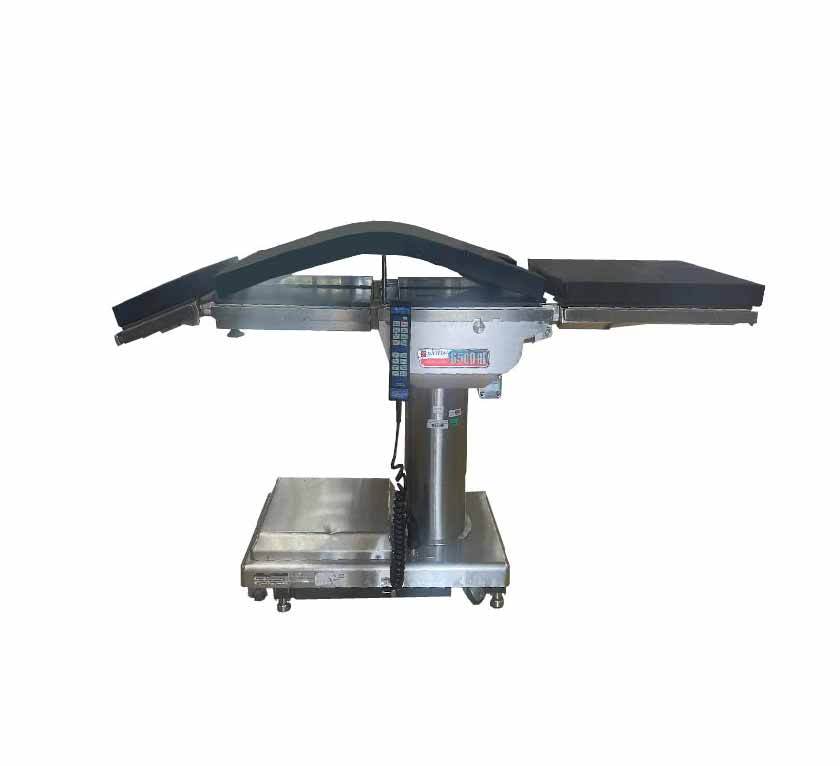

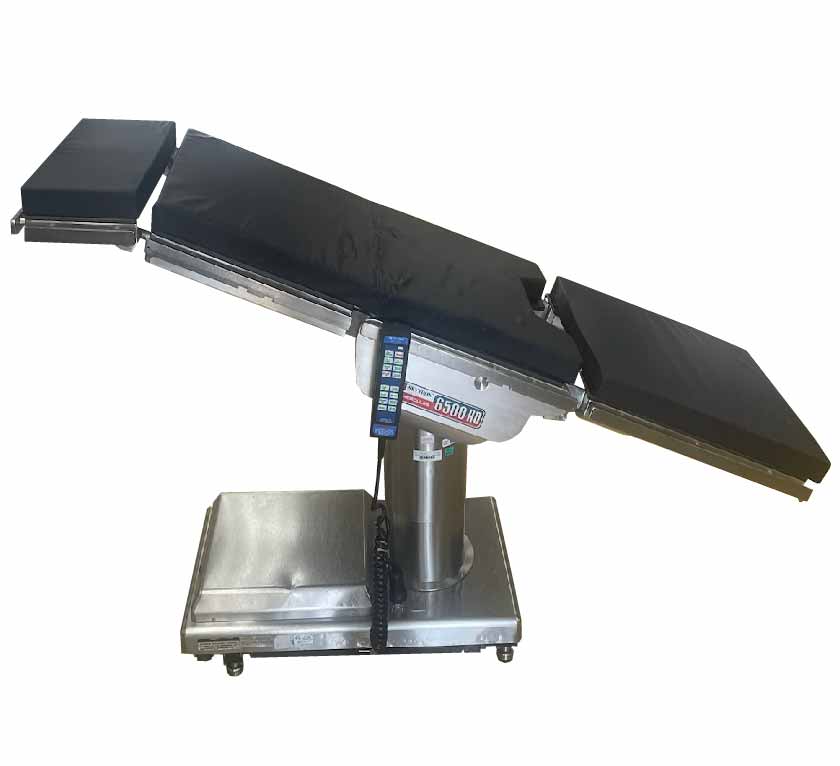

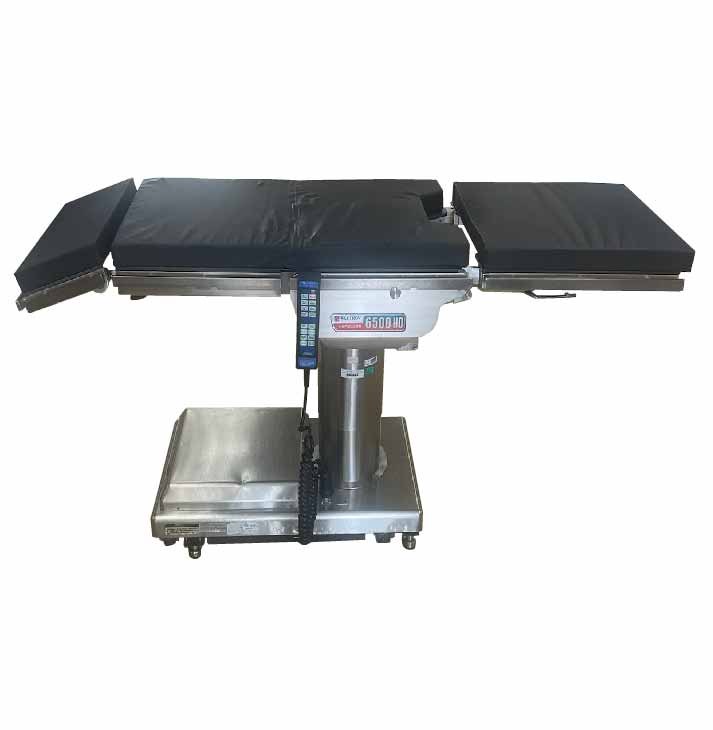

Skytron 6500HD Hercules
Uncommon flexibility makes the Skytron 6500 HD general surgical table unequaled for general-purpose surgery. The exclusive 180° rotating top feature of the 6500 HD general surgical table allows unobstructed C-arm and microscope coverage. Additionally, it eliminates conflicts between surgeon and anesthesiologist during head-end procedures and provides ample legroom for surgeons who prefer to sit during procedures.
- Lift and fully articulate patients weighing up to 1000 lbs.
- Length with Headrest is 79 inches.
- The tabletop can rotate 180 degrees.
- Built-in Powered Kidney Bridge.
- Removable powered leg section.
- Self-leveling, four-point brake system.
Dimensions
- Length: 65.5” (166.5 cm)
- Length (with headrest): 79” (201 cm)
- Width: 20” (50.4 cm)
- Width (with side rails): 21.75” (54.8 cm)
- Maximum Permissible Load (lift): 1000 lb (454 kg)
- Maximum Permissible Load (Articulation): 1000 lb (454 kg)
Hand Control Adjustments
- Height: 26” – 47” (65.5 – 118.4 cm)
- Lateral Tilt (left/right): 30°
- Trendelenburg/Reverse Trend: 30°/30°
- Power Kidney Bridge: 5” (12.6 cm)
- Head Section (up/down) 60°/90°
- Back (up/down): 90°/40°
- Leg (up/down): 20°/150°
- Top Rotation: 180°
- Flex/reflex: 40°/90°
- Beach Chair: Available
Electrical
- Power Requirements: 120 VAC, 60 HZ 300 watts
- Current Leakage: Less than 100 microamps
- Power Cord: 15 Feet with standard duplex connector
