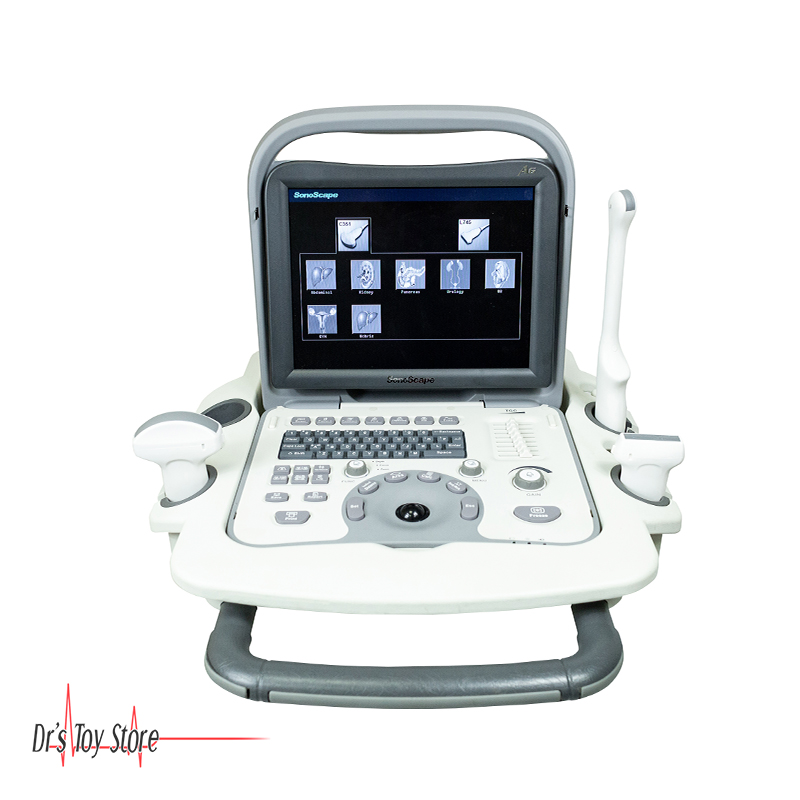

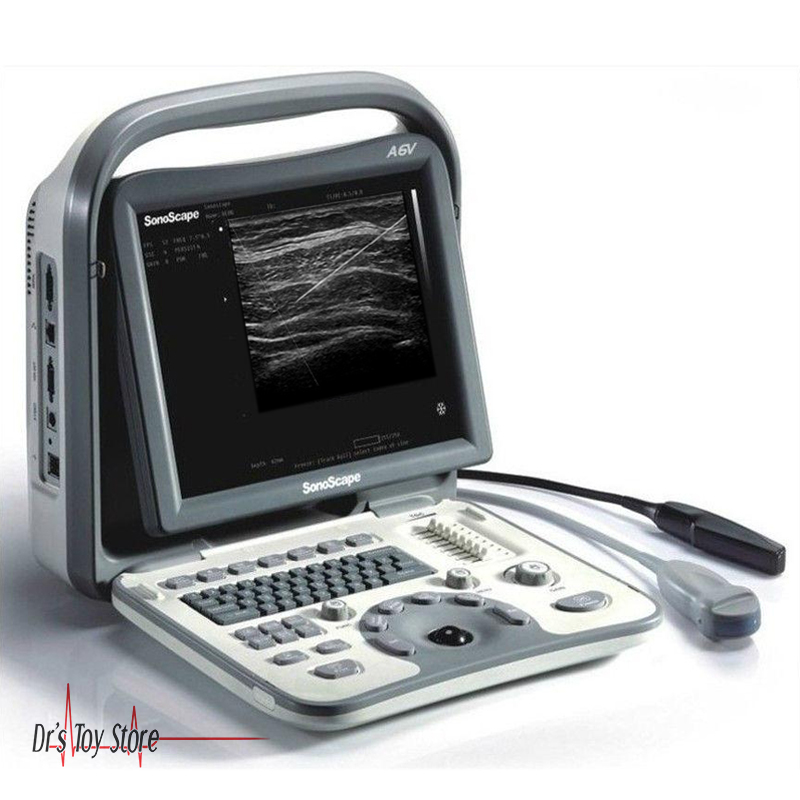

Sonoscape A6 Ultrasound Machine – Base Unit with Carrying Case

Sonoscape A6 Ultrasound Machine Base Unit – Includes 1 Probe

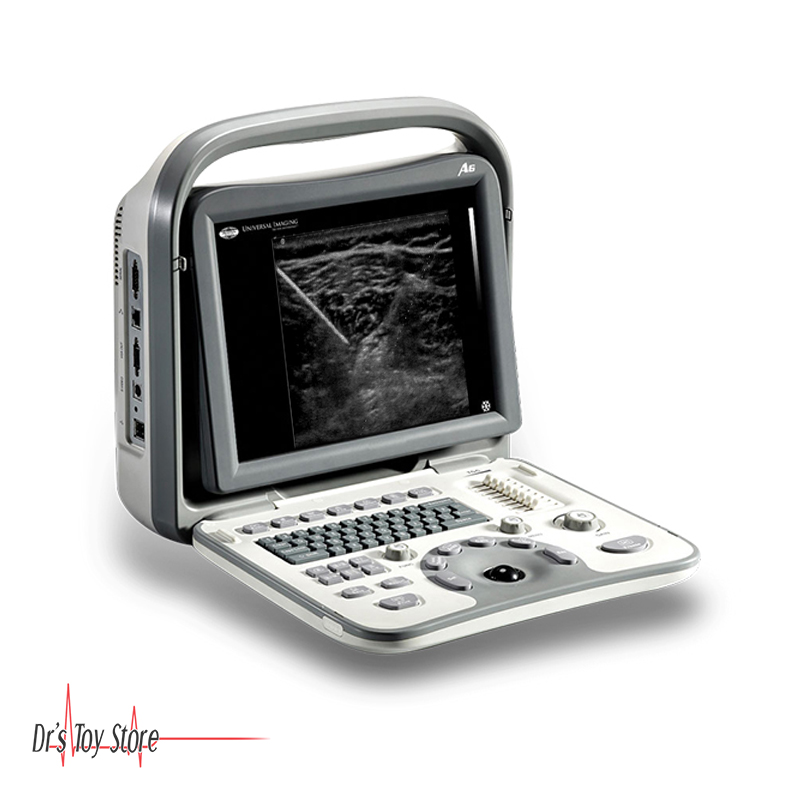

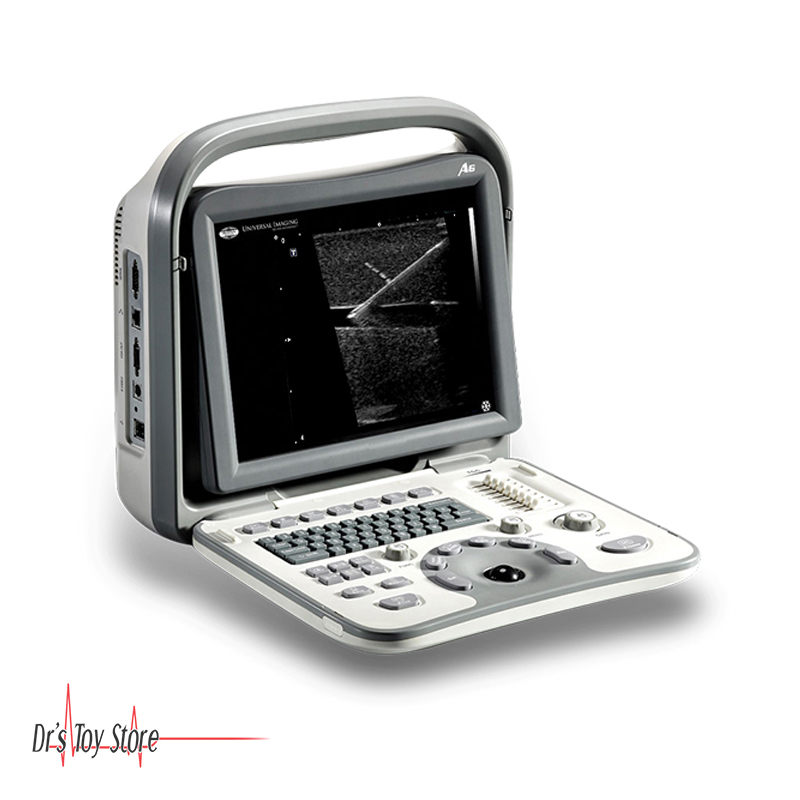

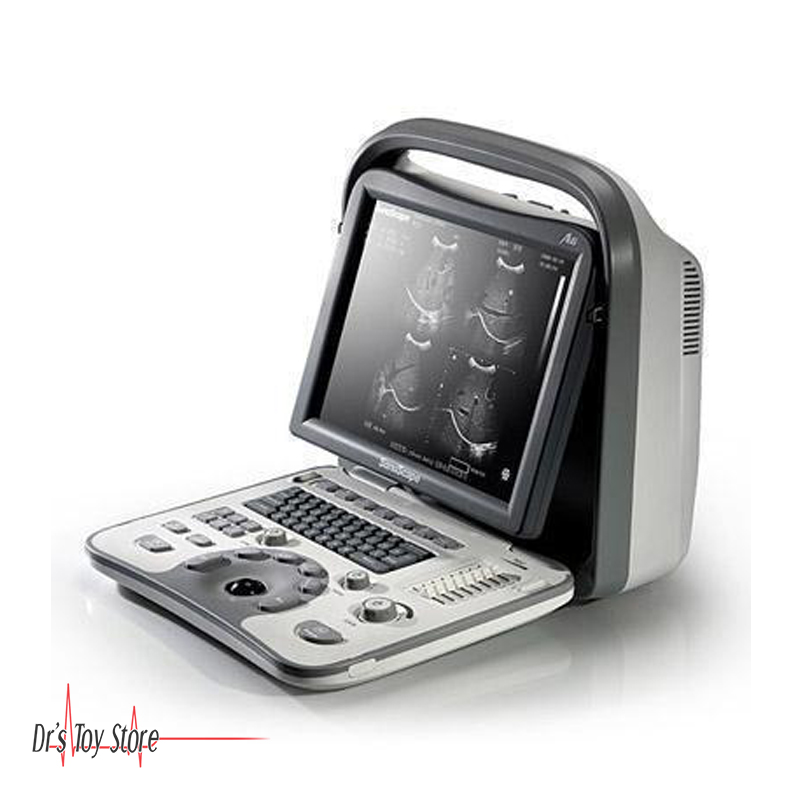

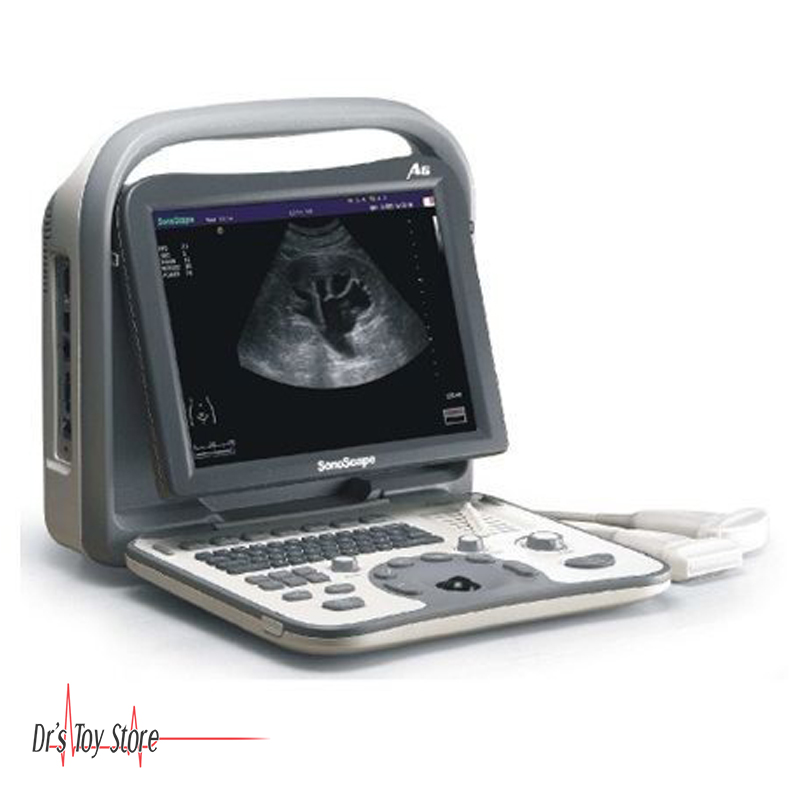

The Sonoscape A6 Ultrasound Machine is a full digital B/W HCU system with 13 lbs weight and it is integrated with a lot of ergonomic designs to make it easy-to-use and excellent for diagnosis. Besides this special design, the biggest strength of A6 is the premium image quality which is comparable to hi-end cart-based B/W ultrasound systems.

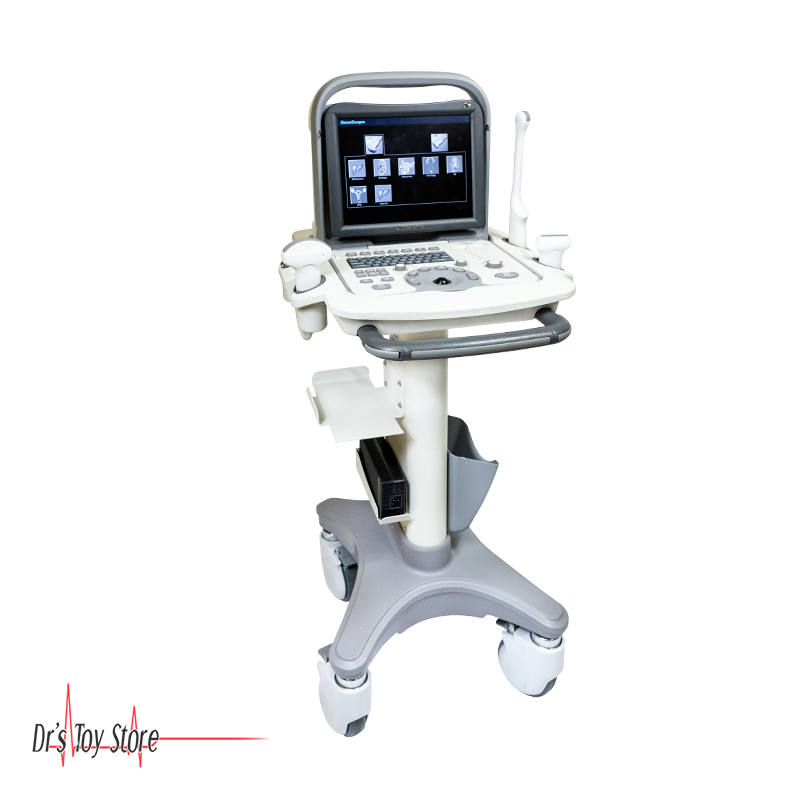

Elegant Outline – only 13 lbs weight and optional mobile trolley, Sonoscape A6 creates a comfortable working environment

Premium B/W ultrasound technologies – abundant software packages and a series of high density probes, Sonoscape A6 assists you in reaching new heights of various clinical applications

Tissue Harmonic Imaging – significantly improves image contrast and resolution

Five Variable Frequencies – minimize the inconvenience of frequently changing probes working with broad band probes

M-Tuning Function – one-key to optimize the image quality automatically

One Button Quick Operation – Save, Report, Print, File, Comment, Patient, THI, Clipboard and (9) more quick keys for Obstetric Measurements

Abundant Body Marks – for quick access to different applications

Sonoscape A6 Ultrasound Machine is suitable for the following Specialties

• Abdominal
• OB/GYN
• Radiology
• Vascular
• Urology
• Physiotherapy
• Pediatric
• Small Parts
• ICU
• Emergency
• Anesthesia
• MSK

Sonoscape A6 Ultrasound Machine Description

• System Design: HCU with LCD monitor, monitor angle 30 degree adjustable

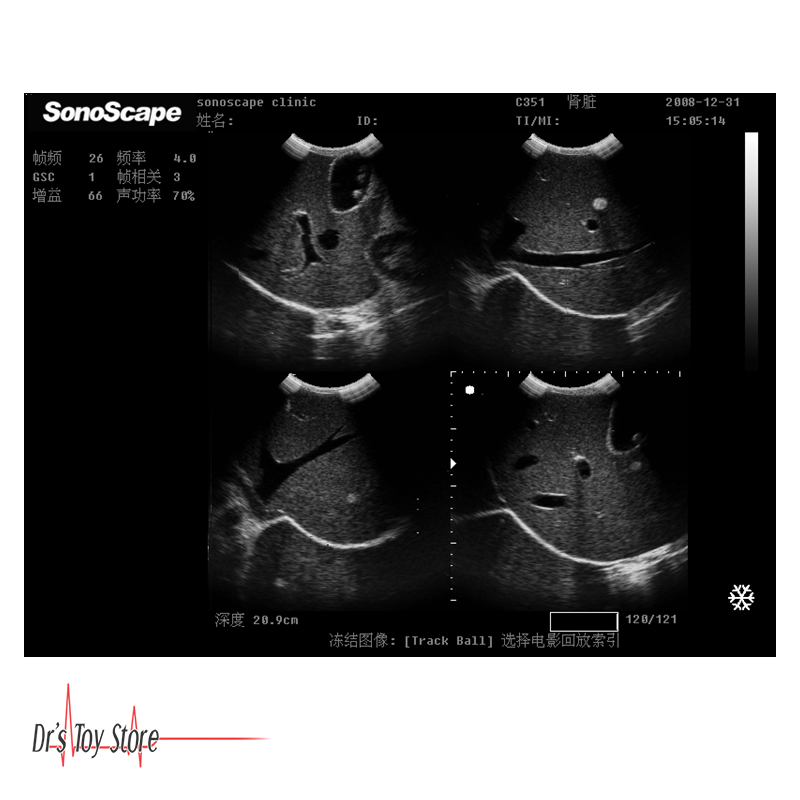

• Image Mode: B, B/B, M, B/M, 4B, THI
• Gray Scale: 256
• Display: Positionable 12″ anti-glare LCD monitor
• Transducer Frequency: 5 Variable, Up to 12 MHz (depending on transducers)
• Transducer Connector: 2 (standard)
• Digital Technology
  • Tissue harmonic Imaging (THI)
  • Digital Beam-forming (DBF)
  • M-turning one-button image optimization
  • Five variable frequency
  • Chroma function
• Scanning Angle: Up to 180° (depending on transducers)
• Scanning Depth: Up to 320 mm (depending on transducers)

Sonoscape A6 Ultrasound Machine Specifications

• Net weight: 13 lbs
• Peripheral Port
  • S-Video
  • VGA
  • two USB ports
  • footswitch
  • LAN
  • Print control
  • DICOM 3.0
• Electrical Info: 110 – 220 VAC | 50 – 60 Hz
• Dimensions: 13 1/3″ L x 13 1/3″ W x 6″ H
