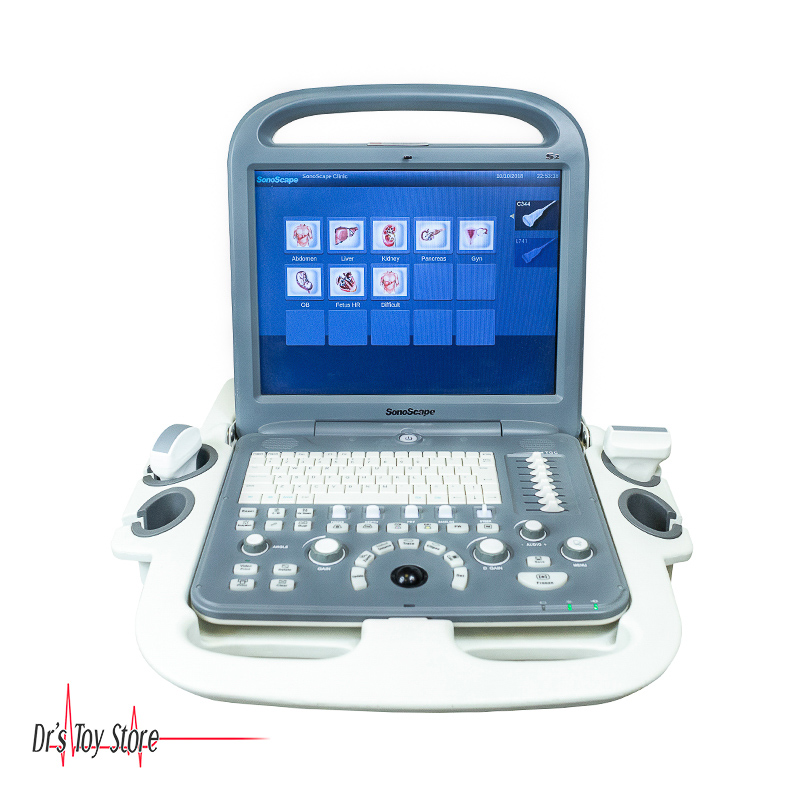

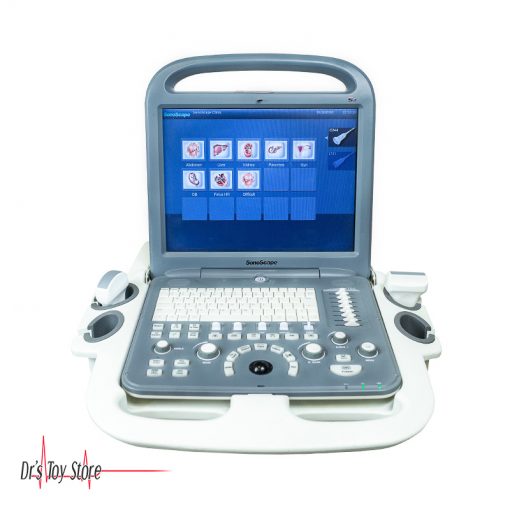

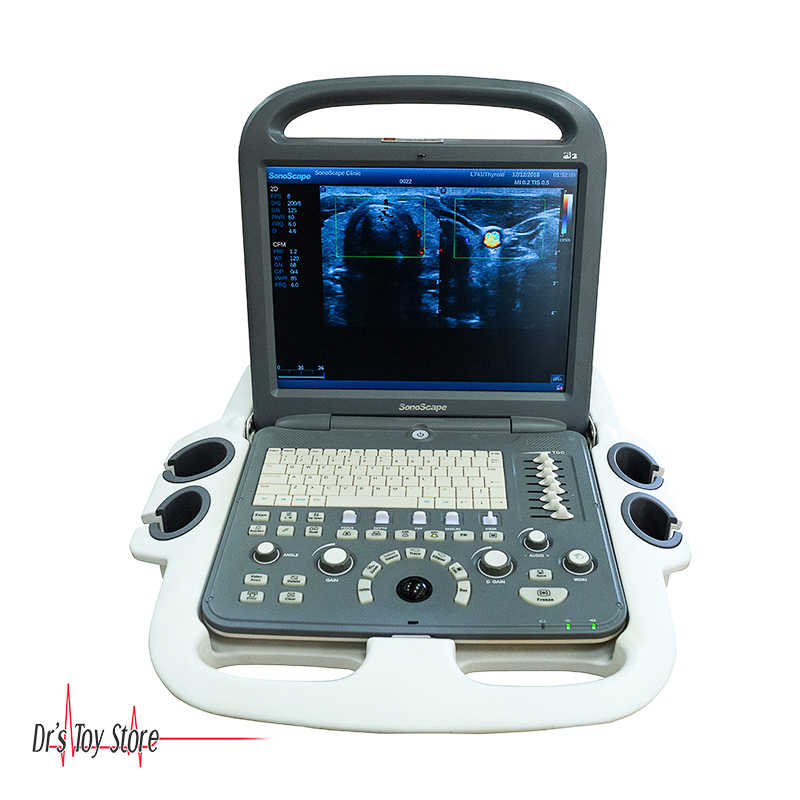

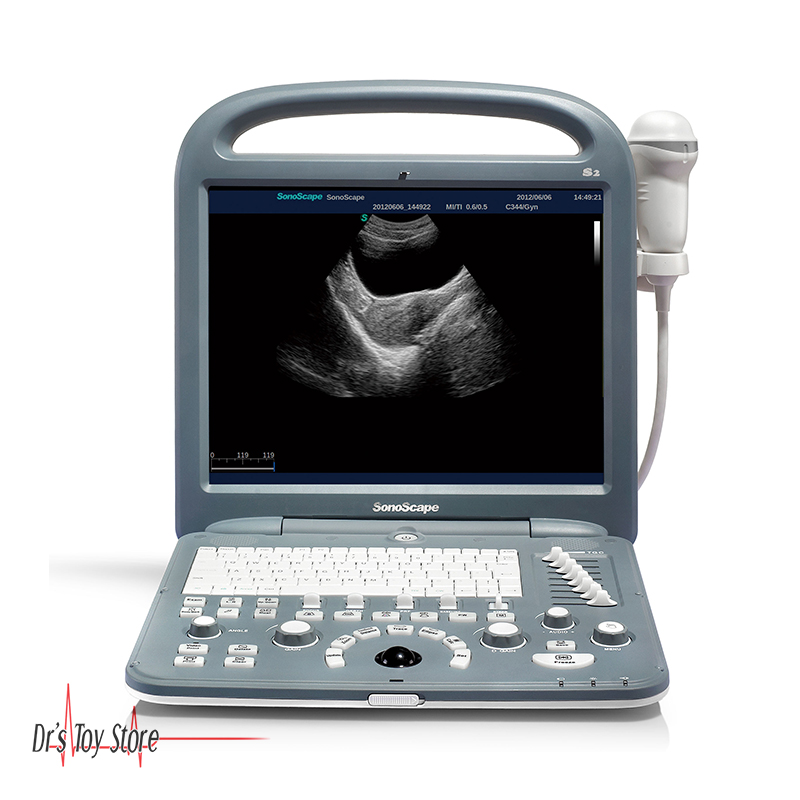

Sonoscape S2 Portable Ultrasound Machine

Sonoscape S2 Portable Ultrasound Machine

The Sonoscape S2 Portable Ultrasound offers an Ergonomic Design which also offers a 15-inch high resolution LCD monitor with wide-view angle. The new SonoScape portable color system S2, with practical design and stable performance, will go beyond your expectation but not your budget. S2 is catered to the needs of doctors: intelligent patient file management system, convenient user-definable settings, professional diagnosis applications. Working with S2, you can have comfort, accuracy, and confidence.

Sonoscape S2 Portable Ultrasound Machine Applications

• Small Parts (Thyroid, Brest, Testicles and Superficial)
• Abdominal (Liver, Spleen, Kidney, Pancreas)
• Vascular (Carotid, Peripheral vessel)
• Cardiology
• Obstetrical (Uterus, Appendages, Fetus)
• Gynecological
• Urological
• Musculoskeletal
• Craniocerebral
• Emergency (optional)
• ICU (optional)
• Anesthesia (optional)

Sonoscape S2 Portable Ultrasound Machine Standard Features

• B Mode
• Multi-B Mode
• M Mode
• Color Mode
• DPI Mode
• PW Mode
• THI Mode
• Cardiac Package
• Gynecology Package
• Urology Package
• Small Part Package
• Vascular Package
• Orthopedic Package
• Compound Imaging
• Trapezoid Imaging
• ECG Module
• Dop Auto Trace
• μ-scan
• IMT Function
• Dicom 3.0
• Internal Workstation

Sonoscape S2 Portable Ultrasound Machine Operating Modes

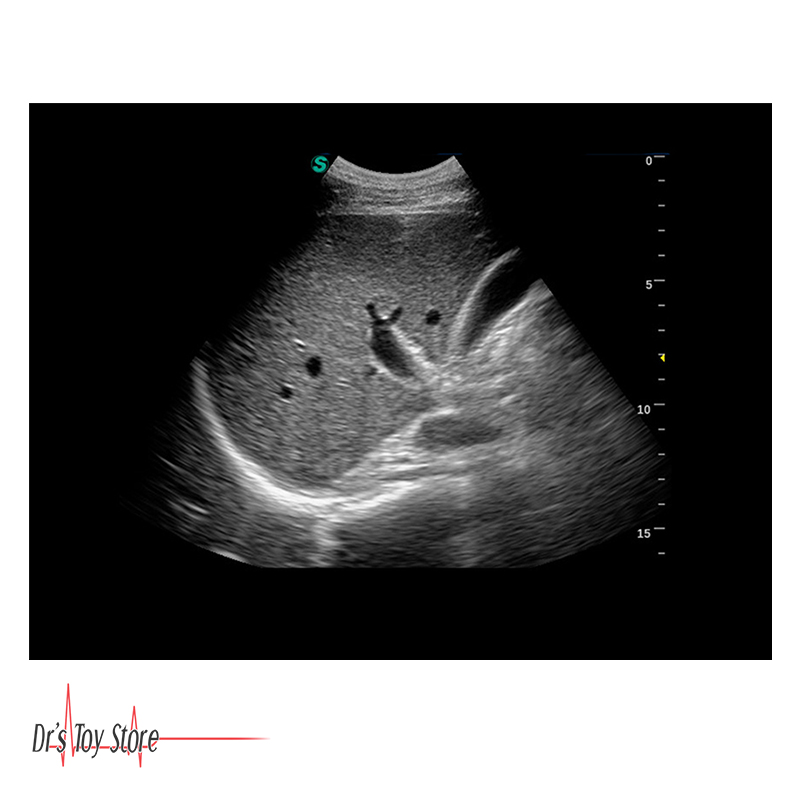

• B-Mode
• M-Mode
• THI-Mode

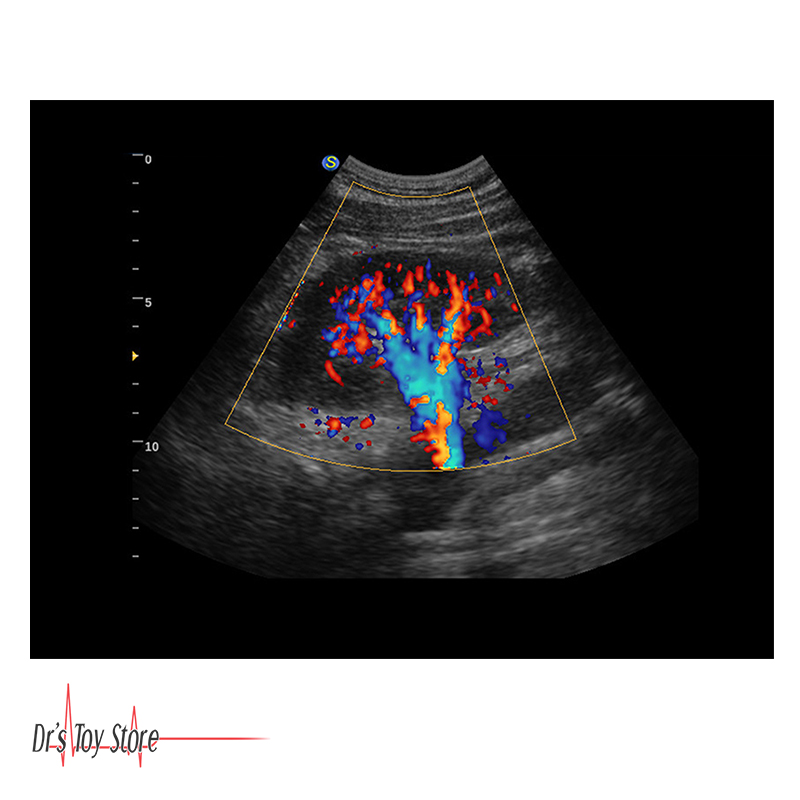

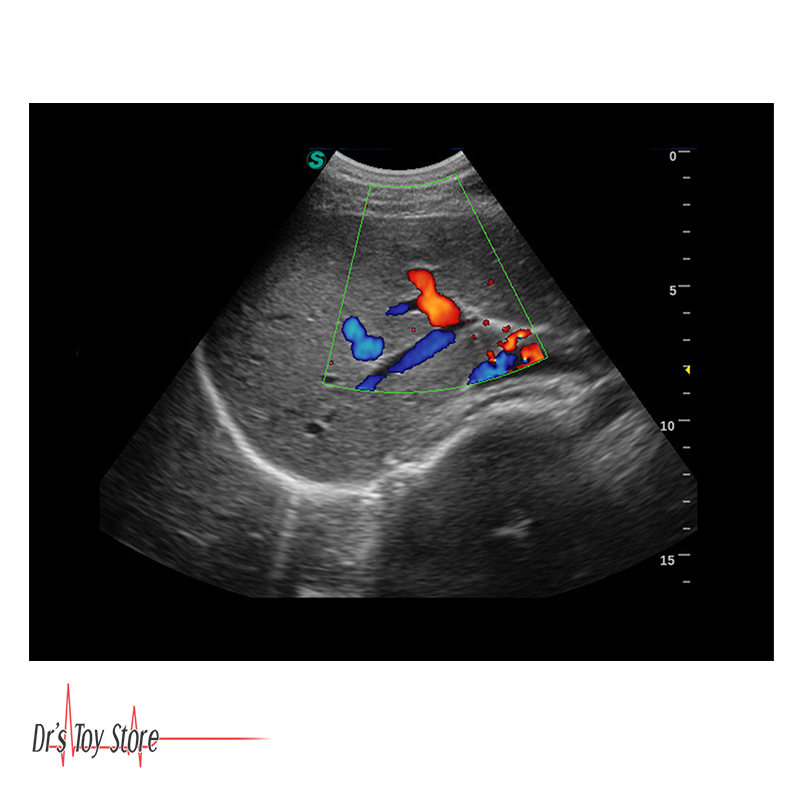

• Color Flow Mode (CFM)
• Doppler Power Imaging (DPI)

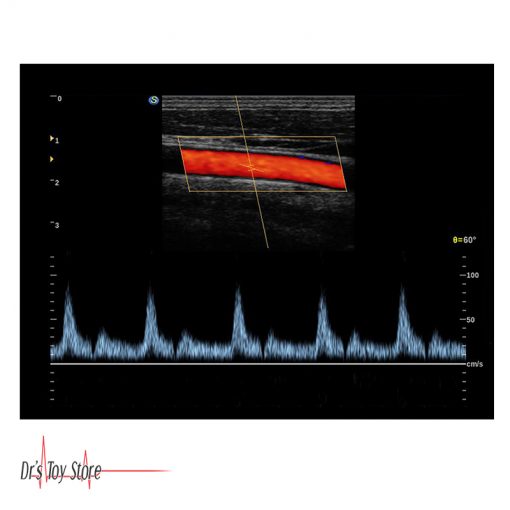

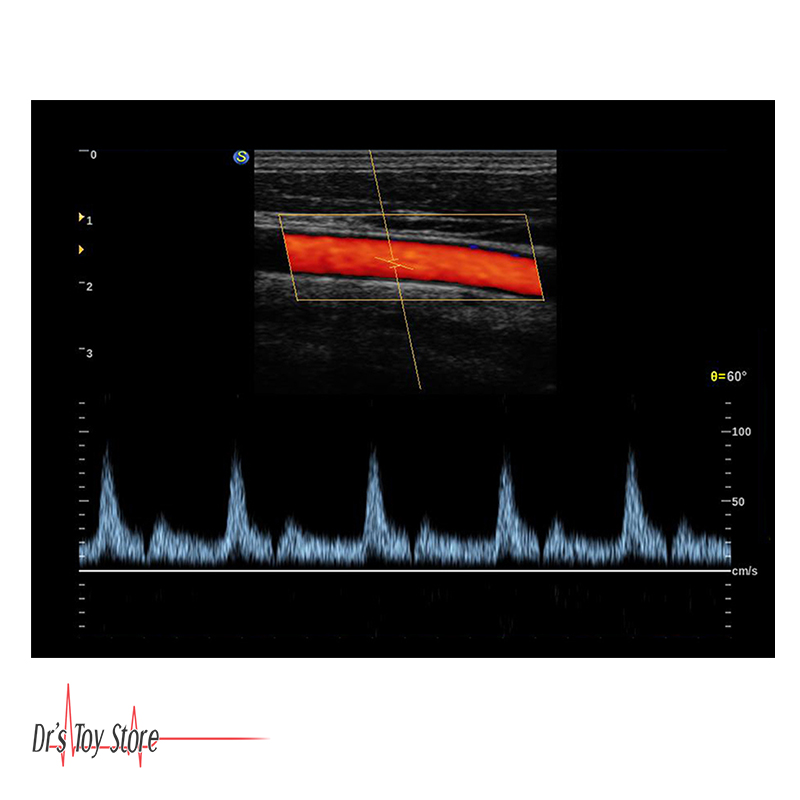

• PW Mode
• CW Mode (optional)
• Panoramic Imaging (optional)
• 4D Imaging (optional)
• Steer M-Mode (optional)
• Color M Mode (optional)

Multiple Transducer Support

• Convex
• Linear
• Transvaginal
• Transrectal
• Intraoperative
• Phased Array
• Micro-Convex

Sonoscape S2 Portable Ultrasound Machine Specifications

• Imaging Modes: 2D, 3D/4D
• Video and Communication
  • Composite Video
  • VGA
  • S-Video
  • USB
• Monitor: Array
• Dimensions: 16″ x 9″ x 14″
• Weight: 16 lbs
• Export Options
  • DICOM
  • USB
  • JPG
  • TIFF
  • BMP
  • WMV
  • AVI
• USB Ports: (2)
• DICOM Options
  • Store
  • Worklist
  • MPPS
  • Print
  • Commitment
• Ethernet: Yes
• Wireless: No
• Power (USA): 100 – 240 V | 50 / 60 Hz
• Battery: No
• Trackball: Yes
• Max Cine Memory: 999 Frames
• Maximum Depth: 24 cm / 9 1/2 in.
• Max Frame Rate: 800 fps

Optimum Workflow

Upgraded workflow, smart data management, a more user-friendly and productive Color Doppler system

• Intuitive user interface: Clear system layout designed for convenient workflow, Menu-driven interface
• Define your own work-style: Fully customized work settings for data table/graph, function keys, icons, formulas, measurement, report layout is totally based on your own work style and habit!
• Clip-board function: Easy image review during scanning
• Smart patient data management: Easy access to patient image and data storage, retrieve, review and report.
• Value-added DICOM functions: Save, Storage Commitment, MPPS, Print, Worklist; providing more advanced file management solutions;
• Various data solutions: built-in 320G hard drive, DICOM 3.0 LAN port, VGA port, support Flash disk, External hard drive, external DVD drive, video printer, USB laser/jet printer and so on.
• M-tuning: Intelligent one key image optimization

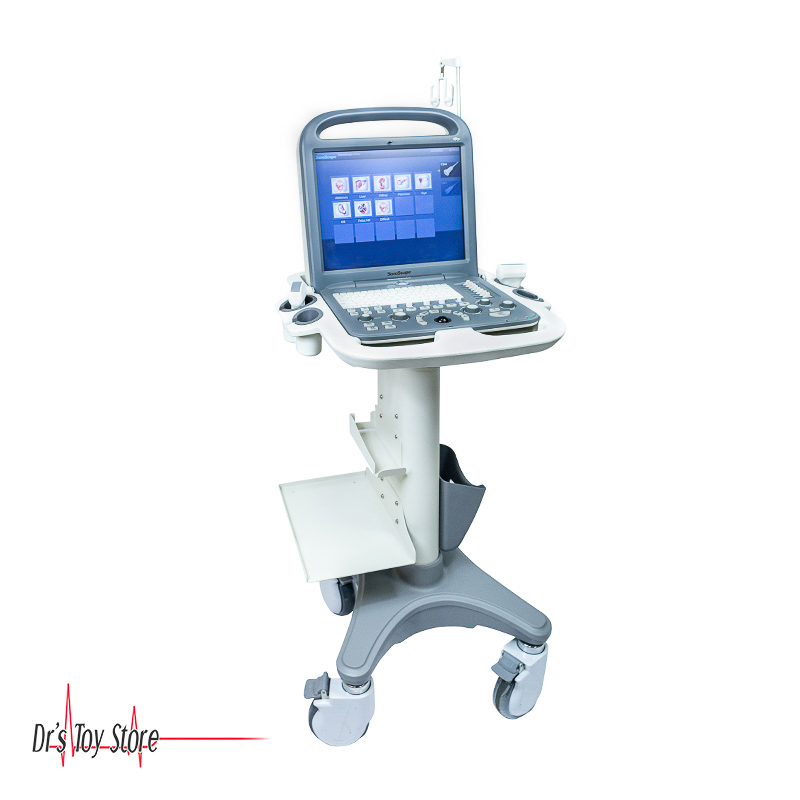

(Cart and transducers sold separately. Ask a representative for more details)
