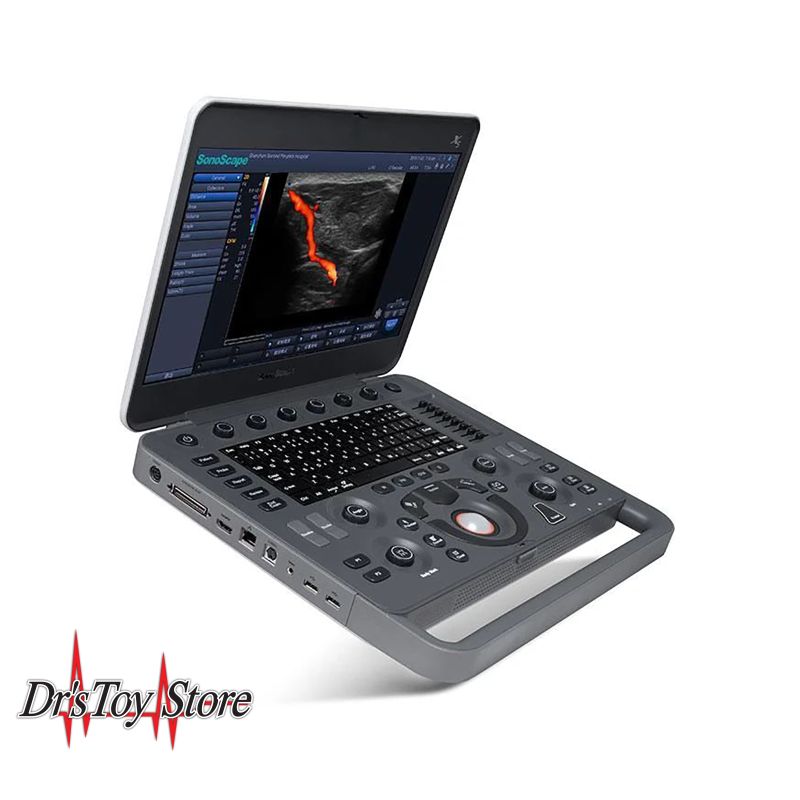

SonoScape X5 Portable Ultrasound

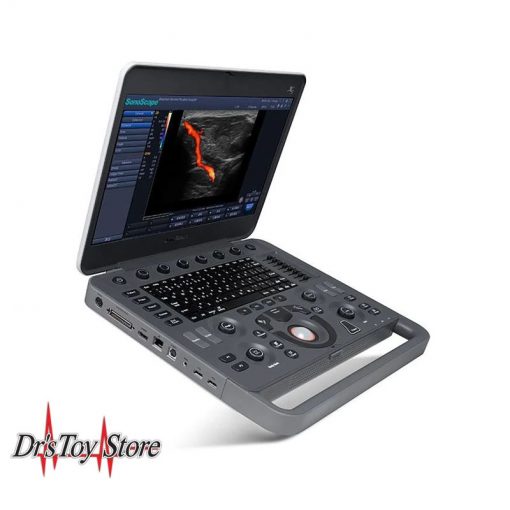

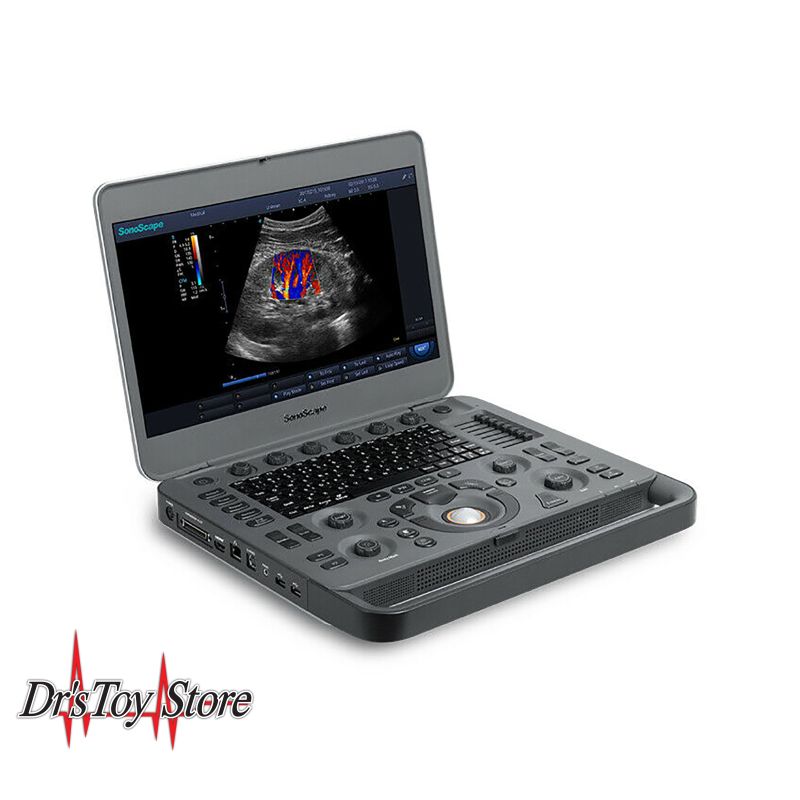

SonoScape’s laptop styled color Doppler ultrasound system, the X5, revolutionized the ultrasound market. Designed as the go-to ultrasound in any setting at the bedside or aboard such as in an ambulance thanks to its light weight, small size and impressive durability. Packed with crystal clear imaging capabilities and advanced applications inside this small laptop system makes it the ideal system for use inside hospitals too. Be it the OR, emergency room or ICU, the X5 can be found and ready to use at any time.
Extensive Applications

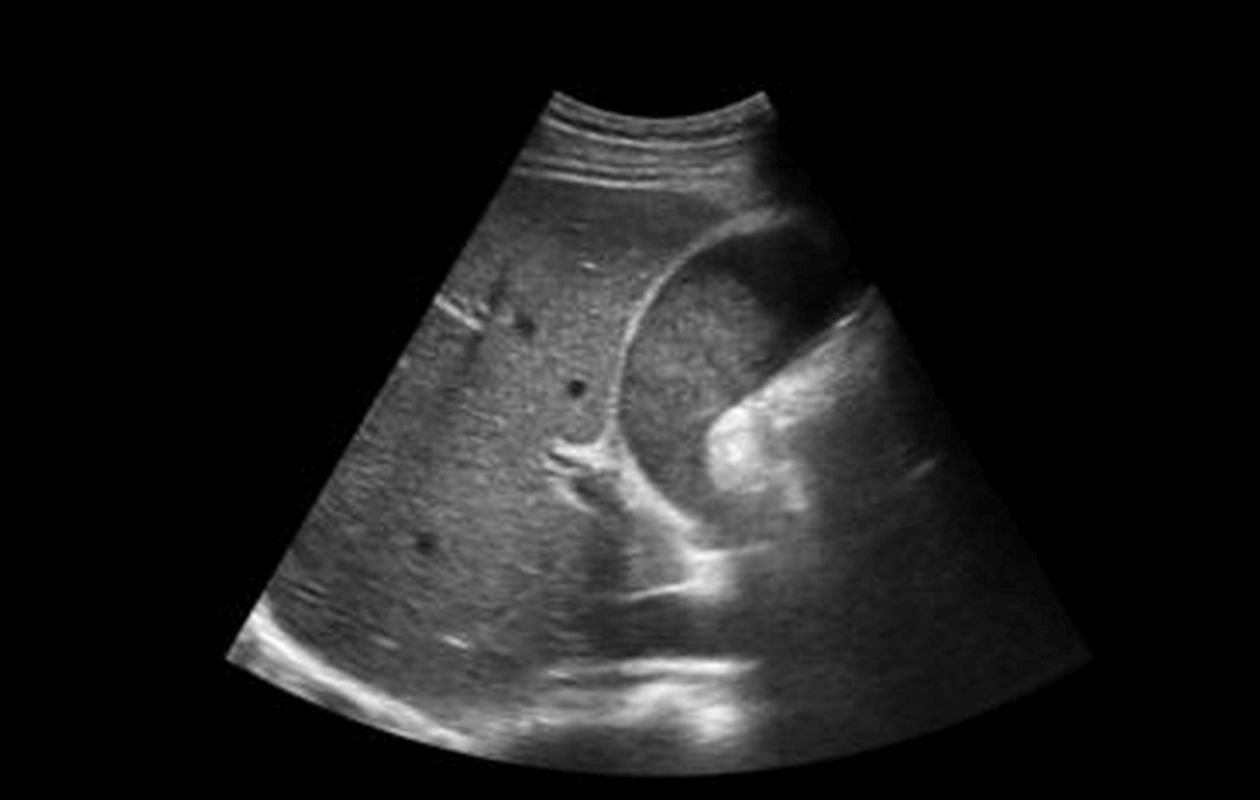

Crystal clear imaging quality with professional transducers makes X5 ideal for various applications.The new platform provides users a more efficient scanning process, due to its advanced technology. Since X5 aims to achieve an excellent imaging quality, these technologies contribute to produce images with high resolution and penetration, presenting a large amount of information.
Efficient Experience
The X5 provides users a more efficient scanning process, due to its advanced technology. Since X5 aims to achieve an excellent imaging quality, these technologies contribute to produce images with high resolution and penetration, presenting a large amount of information.
Dynamic Multi-beam processing technology
Dynamically provides multiple beams launching in different scanning modes, which balances parameter demands in various applications. It presents detailed information with good spatial resolution or real time movement with suitable line density and frame rate.
Spatial compound imaging
X5 transmits waves from different directions, in order to get a comprehensive signal and information. It provides 9 direction lines which multiply and enhance the resolution in any depth to present sonographer more detailed information for lesion diagnosis.
Tissue Specification Imaging
The system detects different tissues automatically by matching different acoustic ranges, from which the user can acquire images with more uniformity and higher spatial resolution.
C-field beam
Unlike the traditional focus concentrating on limited areas, C-field beam, with a continuously dynamic focus, provides more energy contributing to better uniformity in the whole image.
SR Flow
A new innovative technology, SR Flow improves the capability of detecting low velocity flow signal, while improving spatial resolution and overcoming the overflow to present user’s with real hemodynamics information.
Applications
- Anesthesiology
- Cardiology
- Emergency Medicine
- Endocrinology
- Family Practice
- Gastroenterology
- Internal Medicine
- Nephrology
- Neurology
- OB-GYN
- Orthopedics
- Otorhinolaryngology
- Pain Management
- Podiatry
- Rheumatology
- Surgery
- Urology
- Vascular
Imaging Technologies
- B/ 2B/ 4B/ M/ CFM/CFMM/ PDI/ DirPDI/ PW/ CW/ TDI/ AMM
- Dynamic Multi-beam Technology
- THI, PHI, TGC, LGC
- μ-Scan
- Tissue Specification Imaging (TSI)
- Widescan: Convex Extended Imaging
- Widescan: Trapezoid Imaging
- Spatial Compound Imaging
- Triplex, Duplex
- B/C Dual Live
- SR-Flow
- Vis-Needle
- 2D Panoramic Imaging
- B Mode Prospective Saving
- Auto (M-tuning)
- PW Auto-trace
- Auto IMT
- Frame rate: up to 80fps (probe dependent)
- Scan depth: 40cm (3C-A probe)

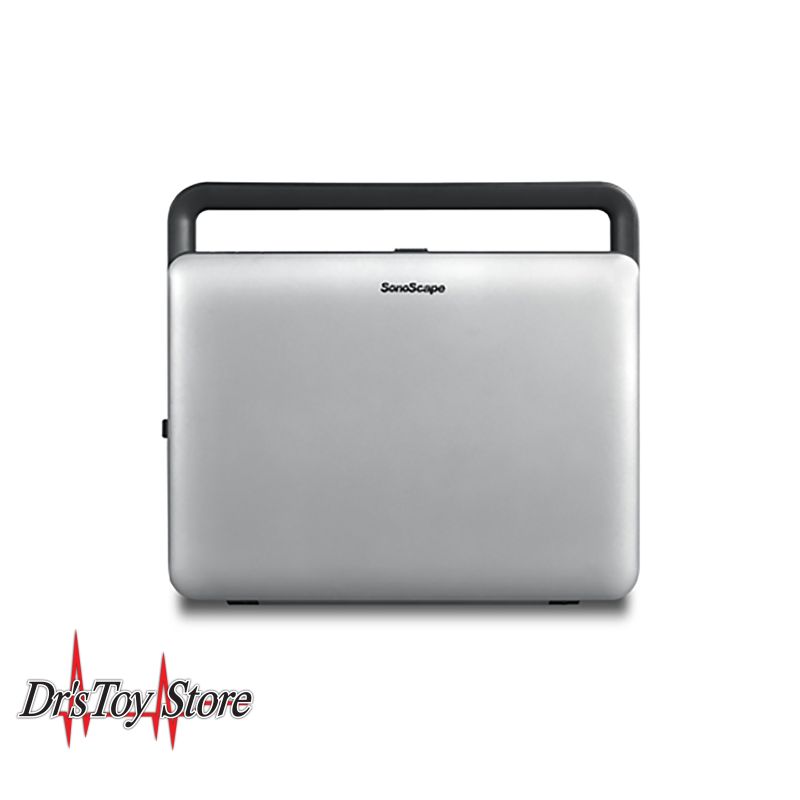

Ergonomic Design
Size: 378mm×61 mm×340mm (W×H×D)
Weight: Approx. 4.50kg (including battery)
Approx. 4.10kg (without battery)
Monitor: 15.6 inch widescreen and high-resolution color LCD monitor, LED backlight, anti-flickering and vertically and horizontally rotatable
Probe port: one, can be expanded to three

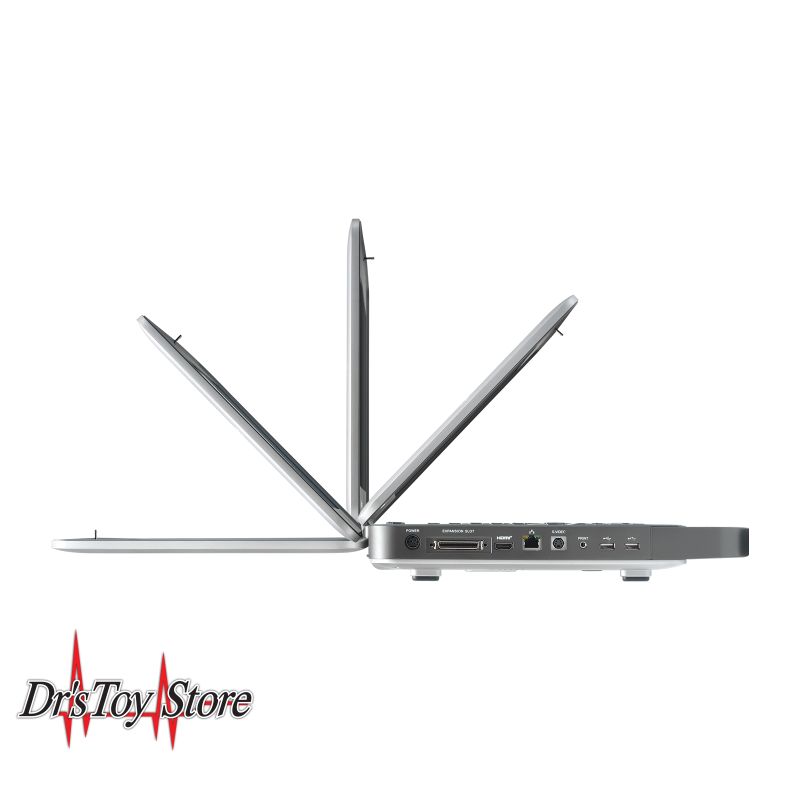

180 tilting angle
Noiseless system
Quick boot up time
Wi-Fi and Bluetooth wireless connection
Auto-reflective screen with wide viewing angle
Auto brightness adjustment
