Sonosite Titan Ultrasound System

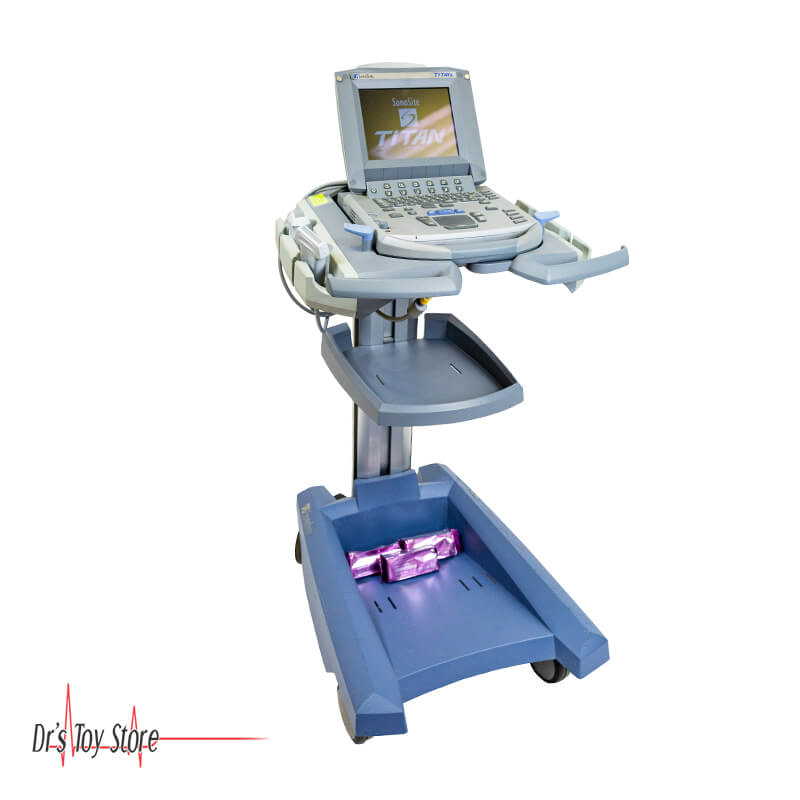

Introducing the Sonosite Titan Ultrasound System. This unit is used, but in good condition has triple transducer mount includes SonoSite power supply, power strip, and a audio video cable. The cart is in great condition including complete user manual for the Sonosite Titan Ultrasound.
The SonoSite TITAN is designed for those who require the features and functionality of a traditional ultrasound system, but the mobility and durability that only SonoSite can deliver. The innovative TITAN system offers the amazing image quality and technical capabilities of cart-based machines with the ease and flexibility of a hand-carried system.
Sonosite Titan Ultrasound System Applications
- Anesthesia
- Cardiology
- Emergency Medicine
- OB/GYN
- Preventive Cardiology
- Radiology
- Surgery
- Vascular

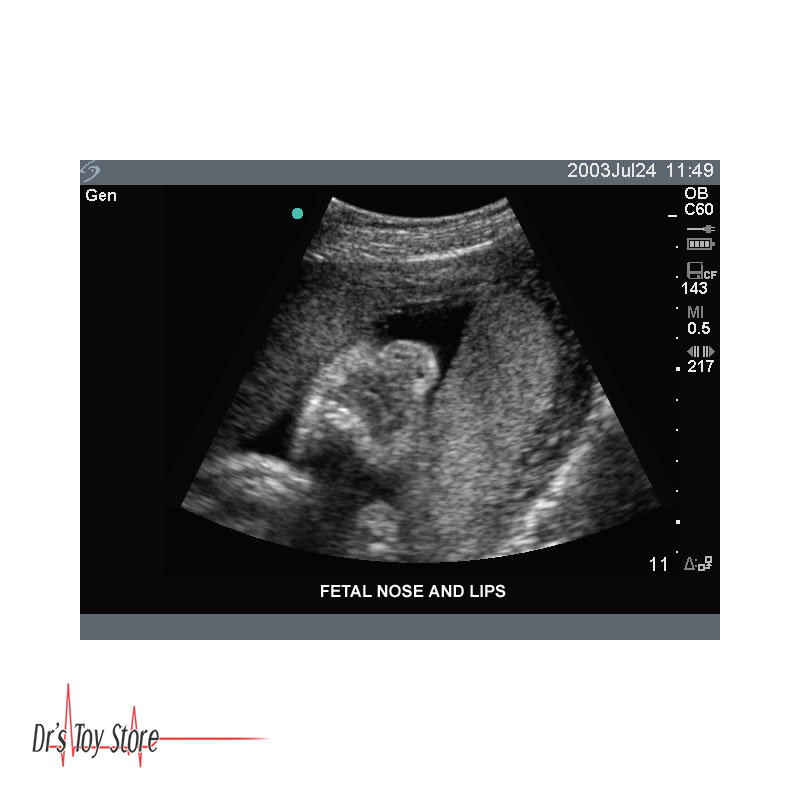

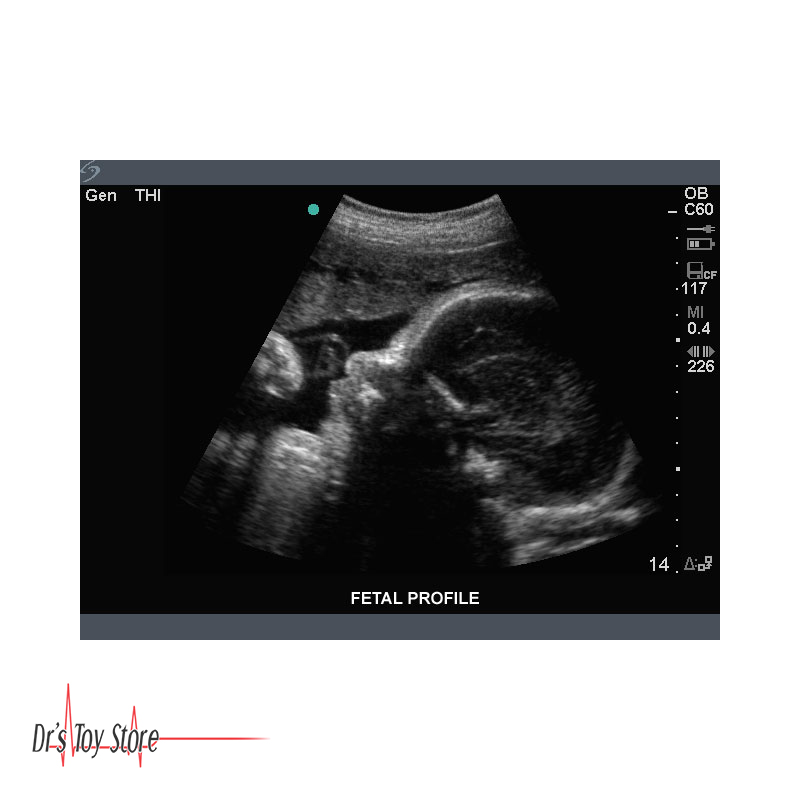

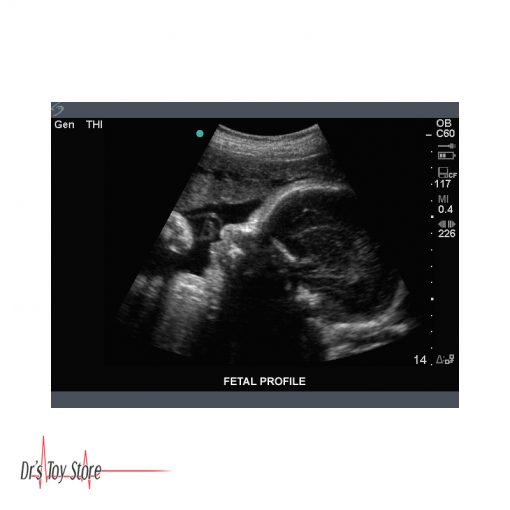

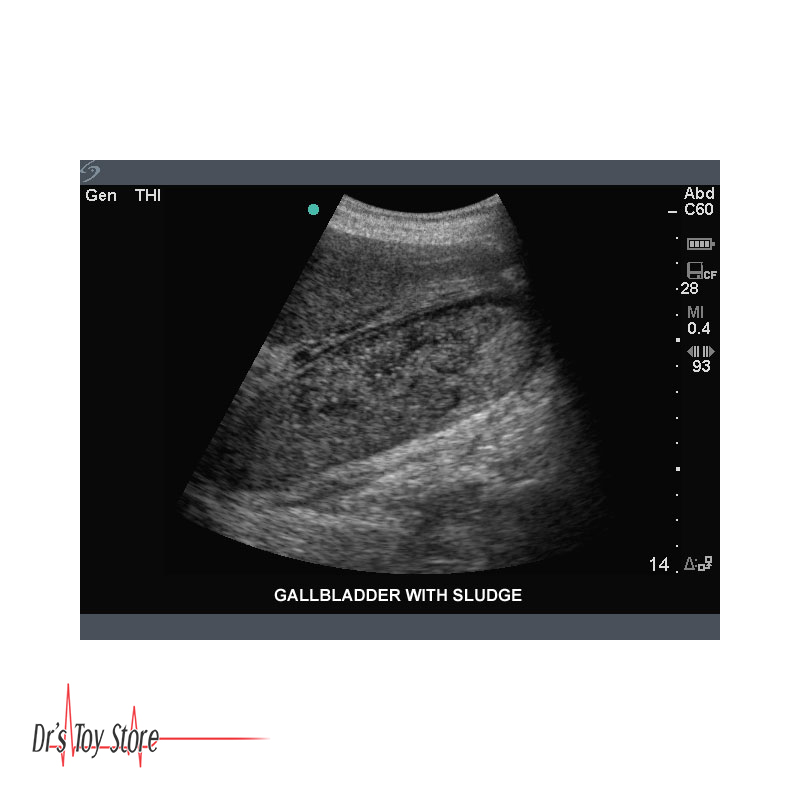

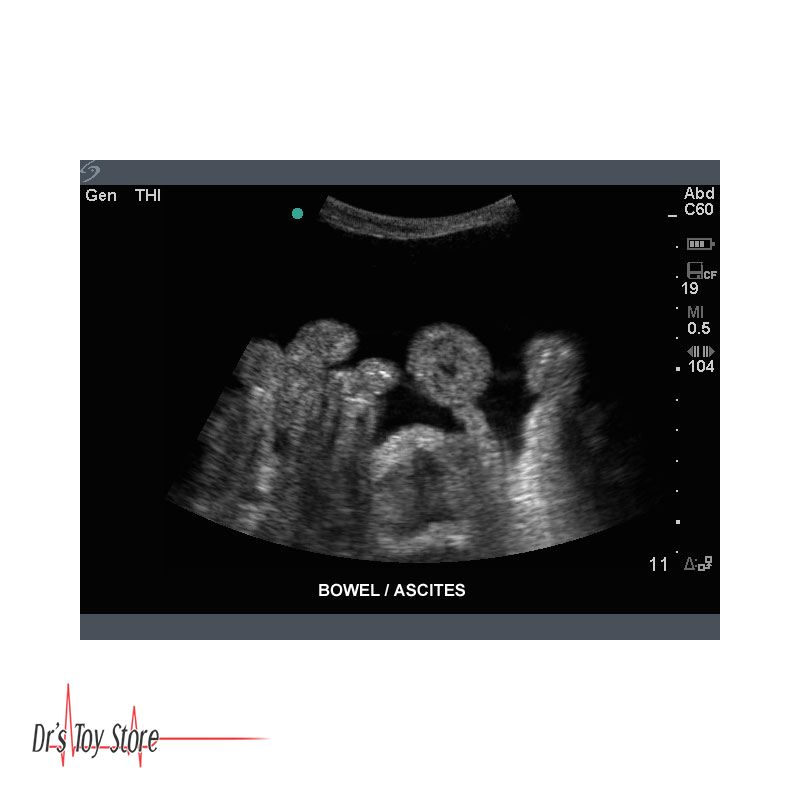

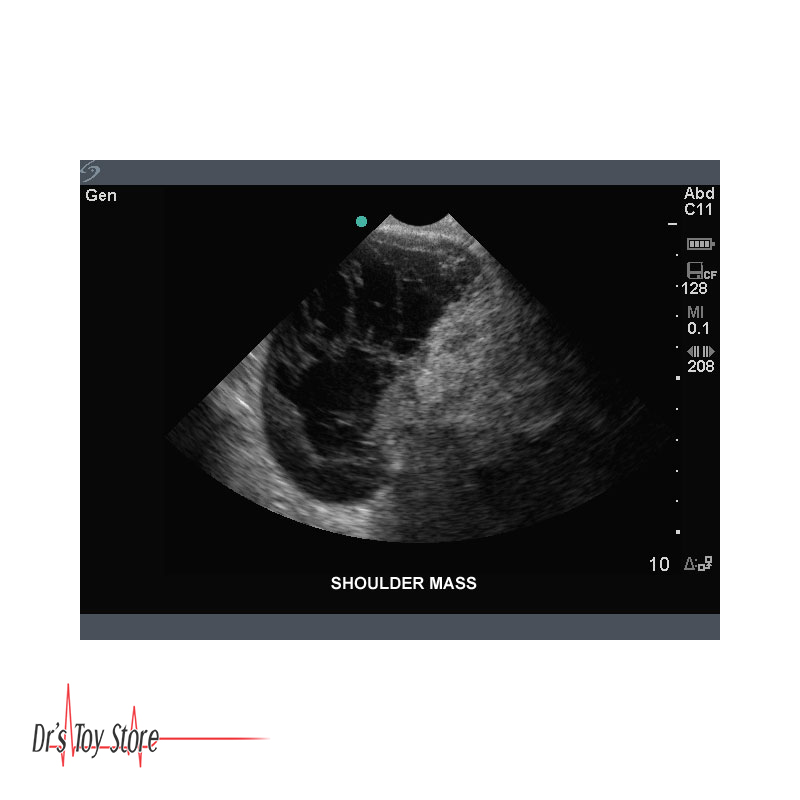

Amazing Imaging Capabilities – Advanced technologies, including pulsed wave Doppler, directional color power Doppler, Tissue Harmonic Imaging and M-mode, make TITAN suitable for a wide range of clinical applications. Its all-digital LCD screen displays high-resolution images when and where you need them, improving diagnostic confidence and providing better control for image-guided procedures, resulting in improved patient care.
- Imaging Modes
- 2D
- Split screen
- Zoom
- Color power Doppler
- M-Mode
- 3 sweep speeds, 1/2 1/2, 1/3 2/3 or full screen options
- Pulsed wave (PW) Doppler
- Continuous wave (CW) Doppler
- Velocity based color flow Doppler
- Duplex imaging
- 3 sweep speeds, 1/2 1/2, 1/3 2/3 or full screen options
- Tissue Harmonic Imaging (THI)
Complete Flexibility – The Sonosite TITAN Ultrasound Machine can be used as a grab-and-go solution when you need speed and portability, or in the Mobile Docking System when you need the stability and functionality of a cart-based system. Triple Transducer Connect (TTC) lets you select and switch from a complete family of transducers to perform a variety of procedures quickly and seamlessly. The TITAN system’s flexibility enables the user to easily and economically upgrade software, hardware and chipsets.
Network Compatibility – The Sonosite TITAN Ultrasound system integrates easily into your existing network via composite video, S-video, USB, VGA or Ethernet. SonoSite also provides SiteLink DICOM options to easily move images into your PACS network. TITAN offers printing capabilities and industry-standard CompactFlash memory with high capacity for on-board information storage. Its flexible connectivity protects your investment as industry standards change in the future.
Optional Transducers
C11 Convex Array Transducer – 8-5 MHz broadband tightly curved array for neonatal and pediatric imaging. Applications include general imaging, abdominal, cardiac and neonatal heads. 2D, CPD, velocity color, PW and CW Doppler
C15 Convex Array Transducer – 4-2 MHz broadband tightly curved array. Applications include adult cardiology general imaging, abdominal. 2D, CPD, velocity color, PW and CW Doppler
L25 Linear Array Transducer – 10-5 MHz broadband linear array. Applications include nerve, vascular, and superficial imaging. 2D, CPD

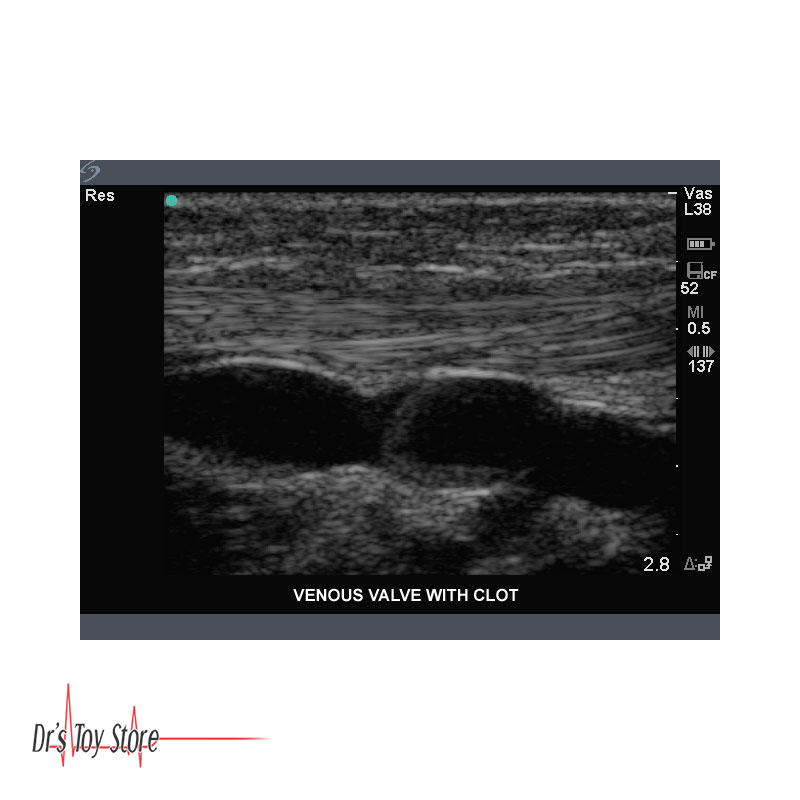

L38 Linear Array Transducer – 10-5 MHz broadband linear array. Applications include small parts, breast, vascular, musculoskeletal & superficial imaging. 2D, CPD, velocity color, PW Doppler
C8 Endocavity Transducer – 8-5MHz broadband intracavitary transducer for prostate imaging. Biopsy guide available. 2D, CPD, DCPD, PW Doppler

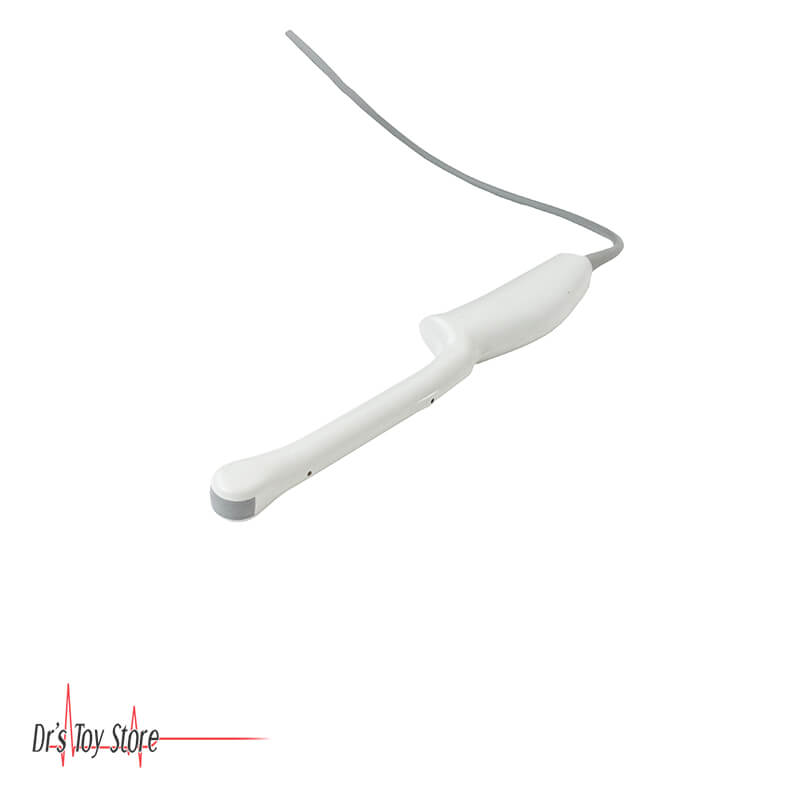

ICT Endocavity Transducer – 8-5 MHz broadband intracavitary transducer for obstetric and gynecologic imaging. 2D, CPD, DCPD, PW Doppler
Sonosite Titan Ultrasound System Specifications
- Weight: 7.7 lbs
- Dimensions: 12” L x 11” W x 3” H
- Display: Integrated fully digital 8.4” TFT Color Liquid Crystal Display
- Battery: Rechargeable Lithium Ion, up to 4 hours operation time
-
Electrical Info: 100 – 240 VAC | 50 – 60 Hz
