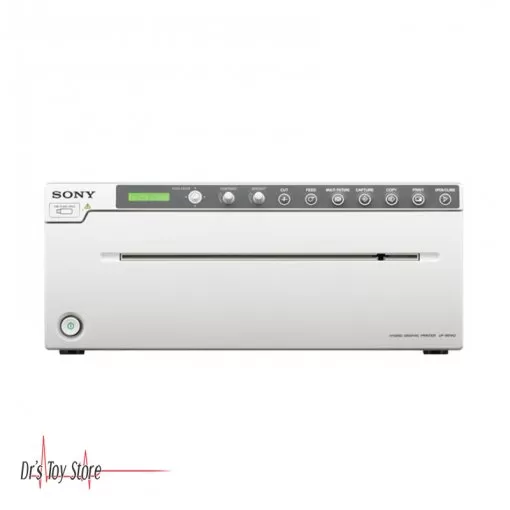

Sony UP-X898MD Ultrasound Printer

Sony UP-X898MD Ultrasound Printer

Sony is pleased to introduce the UP-X898MD black and white hybrid video graphic ultrasound printer. The UP-X898MD is designed specifically for use with medical diagnostic equipment, such as ultrasound systems. As a hybrid printer, it can hook up to both an analog video source (BNC connection), and digital source (USB).
The printer includes a USB interface that allows the user to capture images that are printed and store them on a small, portable USB storage device. High quality, photo-like prints are output in just approximately 1.9 seconds. The UP-X898MD is extremely small and light weight. For an additional convenience, the UP-X898MD adds a jog dial to the front panel for easy operation and uses the same media as the UP-897 series printers.
With support for both digital (USB) and analog (BNC) video, the UP-X898MD is a suitable replacement for the UP-897MD and the UP-D897MD series printers.

Product Details

Highlights

• Ideal for ultrasound printing
• Hybrid – accepts both analog and digital signal input
• Unique built-in digital capture enables you to store images on a connected USB drive
• User-friendly controls on front panel with addition of jog dial
• Fast print speed – approximately 1.9 seconds in high speed mode
• Uses the same media as the UP-897 series printers: UPP-110S/5, UPP-110HD, UPP-110HG
• World-wide power supply – AC 100 – 120V, 220 – 240V 50/60 HZ
• Backwards compatible with systems hosting UP-897MD and UP-D897 printers

Sony UP-X898MD Ultrasound Printer Specifications

• Resolution: 325 DPI
• Gradation: True 256 gray balance
• Effective Print Pixels: 4096 x 1280 (max)
• Picture Size: Approx. 3.9″ x 2.9″ (75 x 100 mm) (4:3) / Approx. 3.9″ x 3.9″ (100 x 100 mm) (1:1)
• Print Speed: Approximately 2.0 seconds (High Speed Mode)
• Interface: Analog BNC Connection and USB Computer Connection
• Memory: 10 Frames
• Printing Method: Direct Thermal Printing
• Power Requirements: AC 100 – 120V, 50/60Hz, 1.5A to 0.8A
• Dimensions: Approx. 6.1″(W) x 3.5″(H) x 9.5″(D) / Approx. 154 (W) x 88 (H) x 240 (D) mm
• Weight: Approx. 5.8 lbs.
• Supported Operating Systems (when connected via USB):
  • Windows 8/8.1 (32/64-bit)
  • Windows 7 (32/64-bit)
  • Windows Vista (32/64-bit)
  • Windows XP (32/64-bit)

Supplied Accessories:

• AC Power Cord
• Operation Manual (CD-ROM)
• Thermal Head Cleaning Sheet
• UPP-110HG Media (1 roll)

Print Media

• Sony UPP-110HG
• Sony UPP-110HD
• Sony UPP-110S/5
• Durico ULSTAR-1100HG (Alternative to Sony UPP-110HG)
• Durico ULSTAR-1100S (Alternative to Sony UPP-110S)
• ERI-110HG (Alternative to Sony UPP-110HG)
• ERI-110S (Alternative to Sony UPP-110S)
