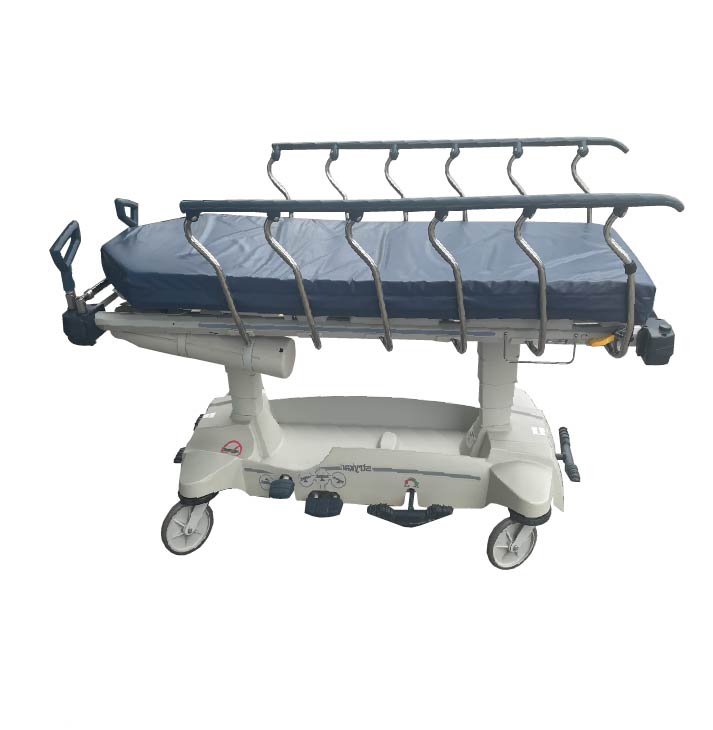

Stryker 1005 M-Series Glideaway Mobile Stretcher

Stryker 1005 M-Series Gildeaway Stretcher Features

The Stryker 1005 M-Series Stretcher with Integrated Patient Scale (SM104 Transport Stretcher) is in excellent condition and certified to proper operating specifications. Stryker’s innovative MSeries sets a new standard for effective treatment and safe transport. Supremely mobile and user-friendly, the M-Series stretchers are perfectly suited for fast-paced and rigorous environments such as the Emergency Department because they help greatly reduce the physical strain on clinicians without sacrificing patient care and comfort.

• Integrated utility tray
• Litter-mounted oxygen bottle holder
• Integrated transfer board
• Power-washable design (SM104 & SM204 only)
• Four-wheel, steel-ring brake system with dual-end activators
• Dual side-mounted foot control hydraulics with uni-lower pedal
• Glideaway™ siderails with integrated push/ pull handles
• Four integrated IV receptacles
• Trend./reverse Trend.
• Pneumatic backrest/stationary foot
• Constant descent hydraulics
• Dual-end brake & steer controls
• Extra 5th wheel for additional steering
• Thermoformed ABS base with extra capacity storage tray
• 26″ or 30″ (66 cm) wide patient surface with 3″ (8 cm)
• Enhanced Comfort Mattress
• Less than 21″ low height

Stryker 1005  M-Series Glideaway Stretcher Specifications

General

• Maximum Weight Capacity: 700 lbs (317.5 kg)
• Overall Stretcher Length: 84” (± .5”) (213.3 cm)
• Overall Stretcher Width (siderails raised): 33.5” & 37” (± .5”) 85.1 cm & 93.9 cm
• Overall Stretcher width (siderails Lowered): 30.25” & 30.75” (± .5”) 76.8 cm & 78.1 cm
• Minimum/ Maximum Bed Height: 20.75”/34” (± .5”) 52.7 cm / 86.4 cm
• Fowler Angle: 0° to 90° (± 3°)
• Knee Gatch Angle: 0° to 40° (± 1°)
• Trendelenburg/Reverse Trendelenburg: +16°/-16° (± 1°)
• Optional Scale System Weight Operating range: 0 lbs. to maximum capacity of the stretcher
• Optional Scale System Accuracy: Between 10° Trend. & 10° Reverse Trend.*± 2 lbs. of weights below 100 lbs. ± 2% of weights above 100 lbs.
• Optional Scale System Environmental Requirements for Operation: 60° F – 80° F 0% – 90% Relative Humidity
