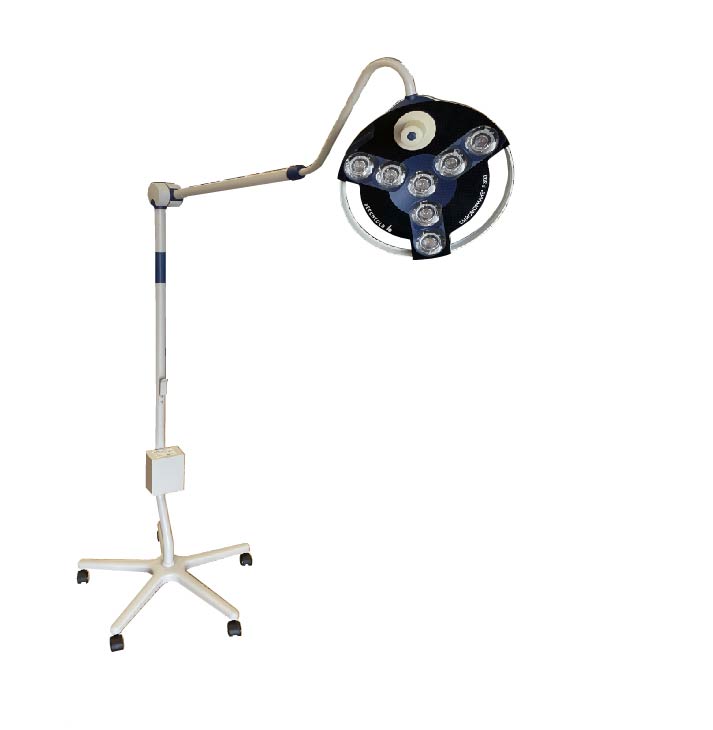

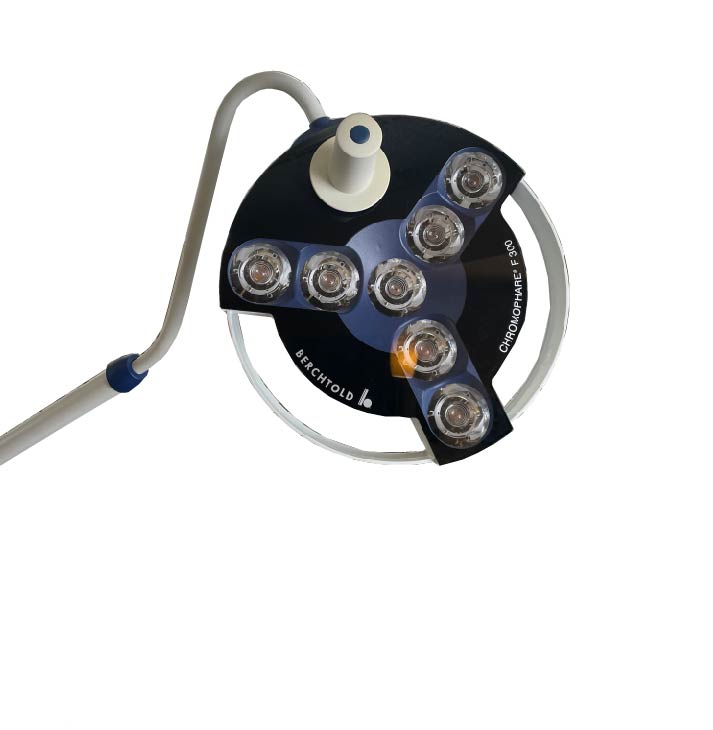

Stryker Berchtold Chromophare F-300

Stryker Berchtold Chromophare F-300

The Stryker Berchtold Chromophare F 300 is a high-performance LED surgery light designed for the emergency room, anesthetic room and most other investigative clinical environments. It provides shadow-free illumination with excellent depth for optimal tissue definition.

Using total internal reflection with an integrated Fresnel structure, the Chromophare produces a large, homogenous 16-centimeter diameter field of light with a color temperature of 4500 Kelvin. Energy-efficient 30-watt LED’s give a high output with a minimal power requirement.

• Creates large, homogenous 16-centimeter diameter field of light.
• Excellent depth of illumination without shadows, reflections and glare.
• Color temperature of 4500 K, a natural white light.
• 30-watt LED’s achieve high output with minimal power usage.
• Rated for at least 30,000 hours of consistent illumination.

Specifications:

General

• Bulb life: 30,000 hours
• Color temperature: 4,500 K
• Depth of field: 51.2 in (130 cm)
• Field diameter: 6.3 in (16 cm)
• Lighthead diameter: 12.9 in (33 cm)

Illumination

• Illumination Intensity 55,000 LUX
• Intensity Control 20-100%
• Light field Diameter 6.3”
• Depth of Illumination 51”
• Color Rendering Index 96
• Light Source 7X1 W LED
• Element / Blub Service Life 30,000 HOURS
• Vertical Travel 51.4” (42.9” MOBILE)

Electrical

• 100/120/127V AC
