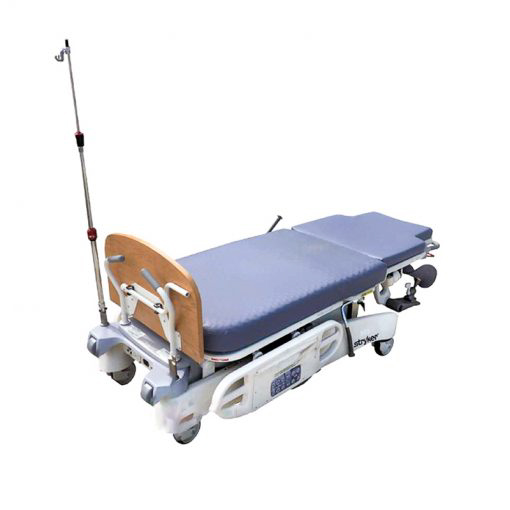

Stryker LD304 Birthing Bed

The Stryker LD304 Birthing Bed provides comfort and security for both the mother and caregivers. This birthing bed is simple to operate, mobile and it’s designed to provide safety while bringing comfort to mothers in labor. Convenient controls provide the Stryker birthing bed to get into trend positions with a single button, these options making it easy to customize the positions for minimum effort.

The Stryker foot section promotes proper body mechanics to help prevent caregiver back strain or injury. The Stryker Birthing Bed features the patented Skoocher, which moves the patient or mother closer to the perineal edge of the bed with the touch of a button. This is a very secure and comfortable bed for mothers and caregivers alike, and its simple operation, mobility, and ergonomic features are all you’re looking for in a birthing bed.

Stryker LD304 Birthing Bed Features

• CPR release
• Manual backup
• Wood headboard
• Plastic fluid basin
• 3-inch foot mattress
• Automatic pelvic tilt
• Single-button Trend
• Under-bed night light
• Self-storing handgrips
• Locking-caster steering
• Three-position side rails
• 17.5-inch low bed height
• Lock-Rite slide-off foot section
• In-rail motion controls with lockout
• Permanent folding three-stage IV pole
• Lightweight, self-standing foot section
• 5-inch Ultra Comfort head and seat mattress
• 6-inch Omni Surface casters with wheel covers
• Glideaway foot supports with six-way adjustability
• Four-wheel, steel-ring brake system with centrally located activation pedal
• 33-inch mattress width with four motor functions (head, bed, foot, Trendelenburg)

Stryker LD304 Birthing Bed Specifications

• Overall length: 93″
• Overall width
  • Siderails up: 41″
  • Siderails down: 37″
• Lift capacity
  • Bed: 500 lbs
  • Head section: 250 lbs
  • Foot section: 300 lbs
• Height range (to litter top)
  • High 35-1/2″
  • Low 17-1/2″
• Litter positioning
  • Backrest: 0° – 70°
  • Pelvic tilt: 4°
  • Maximum Trendelenburg: 8°
• Patient surface: 33″ x 81″
• Support surface thickness
  • Head/seat: 5″
  • Foot 3″
• Seat depth
  • Standard 12-1/2″
  • With Skoocher 12-1/2″ – 8-1/2″
• Caster diameter
  • Standard 6″
  • Optional 8″
• Electrical Info: 120 VAC | 60 Hz | 10 A
• Current leakage: less than 300 mA
• Hospital grade plug: Yes
• EMC Compatible: Yes
• Motor function areas: Bed, head, foot, Trendelenburg, Skoocher (optional)
• Certifications: C-US UL (120 VAC)
