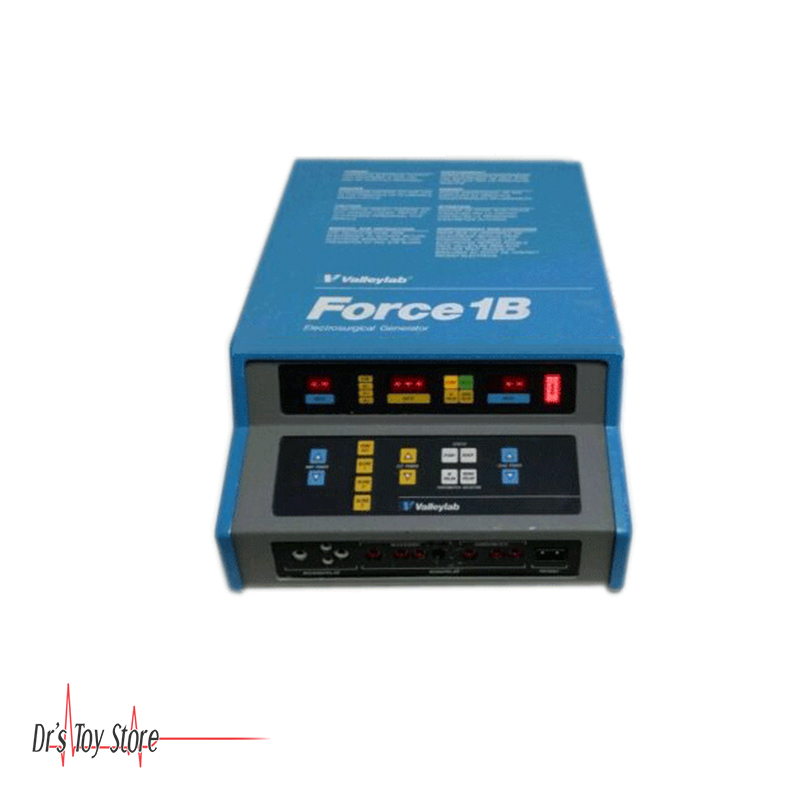

Valleylab Force 1B Digital ESU
The Valleylab Force 1B is a high power ESU that possesses high performance capabilities in a multipurpose generator. It provides full flexibility through varying degrees of homeostasis.
Valleylab Force 1B Digital ESU Features
- Monopolar and Bipolar Outputs
- Audible and Visual Arms, including REM(TM) Fault Indicator
- REM(TM) (Return Electrode Monitoring) (Standard)
- CUT Output: 300 W
- COAGULATION Output: 120 W
- Bipolar Output: 70 W
Valleylab Force 1B Digital ESU Specifications
- Dimensions: 11″ W x 17″ D x 8″ H
- Weight: 15 lbs
- Output Characteristics
- Cut – 2400 Max (open circuit) P-P Voltage, 300 Rated Load ohms, 200 Nominal Power at rated load watts, 1.8 @ 100 W Crest Factor at rated load typical
- Blend 1 – 2800 Max (open circuit) P-P Voltage, 300 Rated Load ohms, 175 Nominal Power at rated load watts, 2.7 @ 100 W Crest Factor at rated load typical
- Blend 2 – 3200 Max (open circuit) P-P Voltage, 300 Rated Load ohms, 150 Nominal Power at rated load watts, 3.3 @ 100 W Crest Factor at rated load typical
- Blend 3 – 3600 Max (open circuit) P-P Voltage, 300 Rated Load ohms, 125 Nominal Power at rated load watts, 4.6 @ 100 W Crest Factor at rated load typical
- Coag – 5000 Max (open circuit) P-P Voltage, 300 Rated Load ohms, 75 Nominal Power at rated load watts, 8.0 @ 50 W Crest Factor at rated load typical
- Bipolar – 800 Max (open circuit) P-P Voltage, 100 Rated Load ohms, 50 Nominal Power at rated load watts, 1.8 @ 40 W Crest Factor at rated load typical
- Output Waveform
- Cut – 500 kHz Sinusoid
- Blend 1 – 500 kHz bursts, 50% Duty Cycle, 31 kHz Recurrence
- Blend 2 – 500 kHz bursts, 37.5% Duty Cycle, 31 kHz Recurrence
- Blend 3 – 500 kHz bursts, 25% Duty Cycle, 31 kHz Recurrence
- Coag – 500 kHz bursts, 31 kHz Recurrence
- Bipolar – 500 kHz bursts, Unmodulated Recurrence
- Low-Frequency Leakage (50/60 Hz) Normal polarity
- Intact chassis ground: less than 10 mA
- Ground open: less than 100 mA
- High-Frequency Risk Parameters
- Bipolar and Monopolar RF leakage current: less than 150 mA
- REM™ Contact Quality Monitor
- Measurement frequency: 140 kHz ± 10 kHz
- Measurement current: 1.5 mA ± 0.5 mA
- Input Power Source
- Nominal input line voltage is 120 VAC with a full range of 85-135 VAC
- Frequency line varies from 45 to 65 Hz
- Maximum Current and Maximum Power
- Idle – 0.5 A | 60 W
- Cut – 5.0 A | 600 W
- Coag – 30 A | 300 W
- Bipolar – 1.5 A | 180 W
