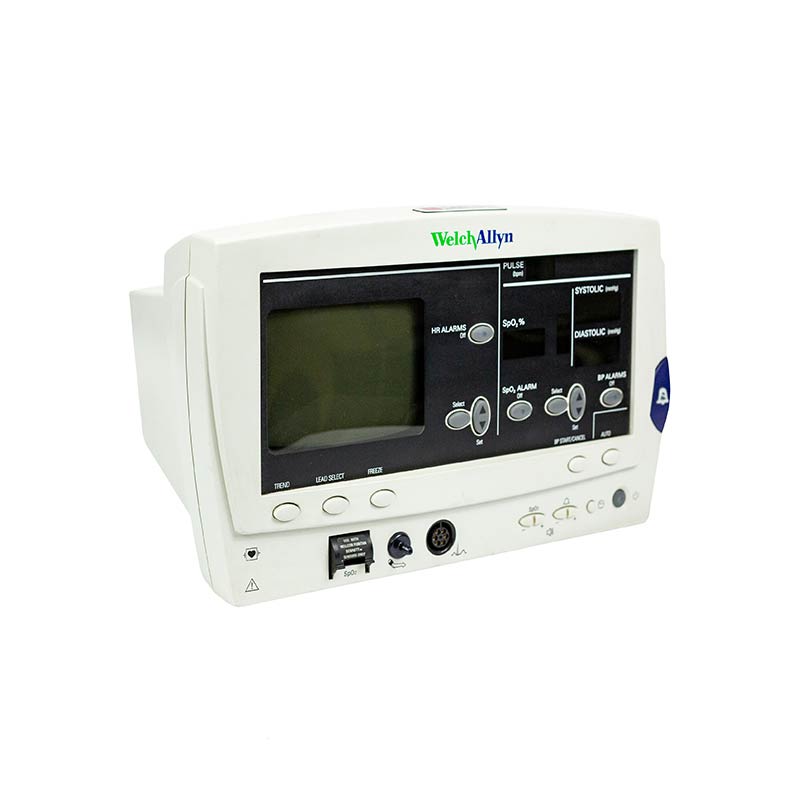

Welch Allyn 6200 Atlas Monitor

Introducing the Welch Allyn 6200 Atlas Monitor for sale. Lightweight and portable, it can be set on a cart, countertop, wheeled on its own dedicated mobile stand, mounted on the wall or carried using its side handle.

Welch Allyn 6200 Atlas Monitor Features

  • Hard-working, easy-to-use monitor with configuration options to meet your individual needs
  • All monitors include 3- or 5-lead ECG, Nellcor pulse oximetry (SpO2) and NIBP
  • Optional parameters include temperature, respiration, EtCO2 and integrated printer
  • Bright, crisp waveforms and multicolored LED displays for across-the-room visibility
  • Simple, straightforward menu operation

Welch Allyn 6200 Atlas Monitor Special Features

Completely upgradeable – maximize your investment even if your needs change in the future

Trend memory for up to 144 sets of patient data

Optional dual-trace printer for waveform and trend recording. Print-on-alarm feature immediately documents a patient alarm or invalid measurement, saving time during procedure and charting process

Optional battery for short-term transport or low-power conditions

Optional RS232 interface with nurse call capability

Welch Allyn 6200 Atlas Monitor Specifications

  • Heart Rate Range: 20 – 250 bpm
  • Heart Rate Accuracy: ±3 bpm or ±3%, whichever is greater
  • Bandwidth: 0.5 – 40 Hz (monitor mode) or 0.05 – 100 Hz (extended mode)
  • Display Sweep Speeds: 25, 12.5 or 6.25 mm/sec
  • Systolic Measurement Range: 60 – 250 mmHg
  • Diastolic Measurement Range: 30 – 160 mmHg
  • Blood Pressure Accuracy: Meets AAMI SP10-1992 Standard
  • Operating Modes: Manual (single determination) or Automatic Mode
  • Cycle Interval Choices: 1, 3, 5, 10, 15, 30 or 60 minutes
  • Measurement Range: 40 – 100%
  • Accuracy: ±2 digits (no motion), ±3 digits (with motion) in the range of 0 – 100%
  • Pulse Rate Range: 20 – 250 bpm
  • Pulse Rate Accuracy: ±3 digits (no motion), ±5 digits (with motion)
  • Measurement Technique: Sidestream
  • Measurement Range: 0-98 mmHg
  • ETCO2 Accuracy: 0-40 mmHg ±3 mmHg; 41-98 mmHg ±10% of reading
  • Breath Rate Measurement Range: 5-100 breaths per minute
  • Breath Rate Accuracy: ±1 breath per minute or ±5%, whichever is greater

Additional information

Models

With CO2, Without CO2
