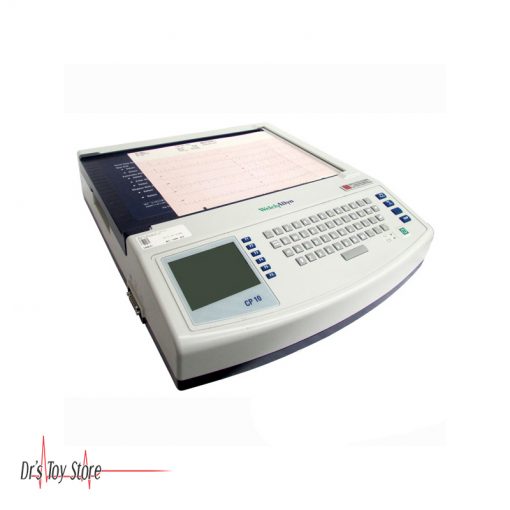

Welch Allyn CP10 ECG-EKG Machine

Welch Allyn CP10 ECG/EKG Machine

Welch Allyn CP 10 Specifications:
Dimensions: 15.5” x 17” x 4” (39.4cm x 43.2cm x 10.2 cm)
Weight: 11.25 lb. (5.1kg) including battery
Waveform Display: LCD 3-channel lead groups or complete 8-channel presentation (CP 20 only)
Keyboard Type: Elastomer keypad with complete alphanumeric keys, soft-key menu and dedicated function keys
Paper Type: 8.25” x 11”, Z-fold thermal paper. 200 sheets stored in paper tray
Thermal Recorder: Computer-controlled dot array, 8 dots/mm
Thermal Writer Speeds: 5, 10, 25, 50 mm/s
Gain Settings: 5, 10, or 20 mm/mV
Report Print Formats: Automatic mode: 3+1, 3+3, 6 channel, 12 channel. Rhythm mode: 6 channel with configurable lead groups or 12 channel
ECG Storage: Up to 50 ECGs (CP 20 only)
Frequency Response: 0.05 to 300 Hz
Digital Sampling Rate: 1,000 s/sec/channel for recording and analysis. 10,000 s/sec/channel for pacemaker spike detection
Power Requirement: Universal AC power supply (100-240 VAC at 50/60 Hz) 50 VA
Battery: Lead acid gel rechargeable battery. Prints up to 200 ECGs per charge
Filters: High-Performance Baseline Filters. 40Hz Muscle Tremor Filter. AC Interference Filter 50/60Hz
Safety and Regulatory Compliance: ANSI/AAMI EC11. Class I, type CF defibrillation proof
