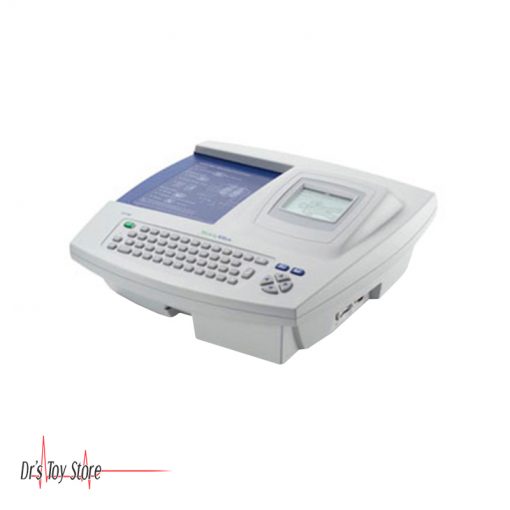

Welch Allyn CP 100 EKG Electrocardiograph

A reliable, easy-to-use, and cost-effective ECG device for almost any office setting.

Welch Allyn CP 100 EKG features:

• A 12-lead resting ECG that provides accurate measurements
• Optional MEANS ECG interpretation software for a second opinion
• High-resolution thermal printer generates full-sized standard and customized reports
• Lead quality graphic saves valuable time by highlighting poor connections
• Full alphanumeric keyboard and LCD screen for easy patient data entry

Welch Allyn CP 100 EKG specifications

Weight 11.6 lb (5.3 kg)
Keyboard type Elastomer keypad with complete alphanumeric keys Soft-key menu and dedicated function keys (CP 200 Only)
Paper type 8.25 x 11 inches (21 x 28 cm), Z-fold thermal paper, 200 sheets
Thermal printer (internal) Computer-controlled dot array, 8 dots/mm
Thermal paper speeds 10, 25, 50 mm/s

Gain settings:
Auto ECGs  5, 10, 20 mm/mV, AUTO
Rhythm ECGs  5, 10, 20 mm/mV
Report print formats:
Auto ECGs  3×4, 3×4+ 1R, 3×4 +3R, 6×2, 12×1, 6×2 50 mm/s, 6×2 Ext.
Rhythm ECGs  3, 6, or 12 leads at a time (CP 200) 3 leads at a time (CP 100)
Average cycles 3×4 50 mm/s + 3R, 6×2 50 mm/s + 6R
ECG storage Up to 50 ECGs (CP 200 Only)
Frequency range 0.3 to 150 Hz
Digital sampling rate > 1,000 samples/second/channel
Pacemaker detection ANSI/AAMI EC11
Power requirement Universal AC power supply 100/240 V ~, 50/60 Hz ~, 2.2 A maximum
Fuses
AC
DC (battery fuse)
Time-delay type, 2 amp 250 V rating, Littlefuse 0215002 or equivalent.

Lead configurations Standard, Cabrera
Rechargeable battery Lead acid gel, 6 volt, 5 AH
Prints up to 100 continuous ECGs per charge
12-hour recharging
Filters 0.5 Hz high-performance baseline filter
35 Hz muscle-tremor filter
AC-interference filter 50 Hz or 60 Hz

Standard connectivity Com port, SD memory card slot (for use with cards  64 MB)
Connectivity with electronic medical records
Supported through the Welch Allyn CardioPerfect workstation software
Electrodes Rigorously tested for conductivity, adhesion, and hypoallergenic qualities, and
exceed all AAMI standards
Cables and wires Meet or exceed IEC 60601
Environmental operating conditions:
Temperature  +10 C to +40 C (+50 F to +104 F)
Relative humidity  15 – 95% noncondensing
