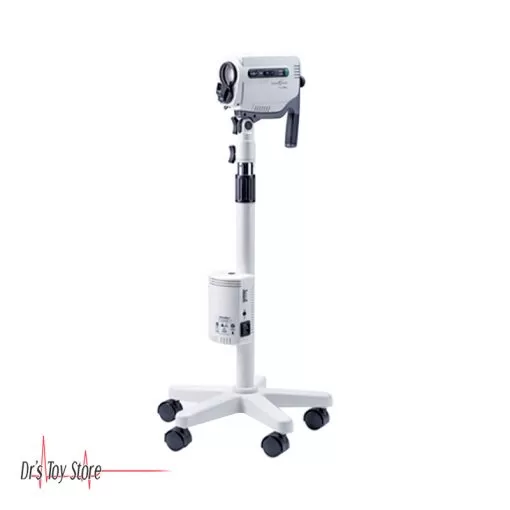

Welch Allyn Video Colposcope with Vertical Stand

Welch Allyn Video Colposcope With Vertical Stand

The Welch Allyn Video Colposcope offers complete care with true video colposcopy, combining light, power, and video for high-resolution imaging, superior diagnostics, and information management. The light source is built on a mobile stand.

Welch Allyn Video Colposcope Features

• Direct-to-screen provides full-screen, high-resolution images of view
• HID lamp offers 50% whiter, brighter light than halogen for true tissue color
• No couplers or beamsplitters to degrade image quality or field
• Push button on-screen magnification index
• Unique polarization filter removes glare for accurate tissue assessment
• Electronic green filter removes red from image with no light loss
• Store, retrieve, compare, annotate and transmit images
• Advanced image management, and a variety of documentation options available

Welch Allyn Video Colposcope Specifications

• Power: 115 VAC | 50 – 60 Hz | 1.0 A
• Dimensions
  • Colposcope: 5-3/4″ W x 3-1/3″ D x 8-1/4″ H
  • Vertical Stand: Low: 36″ High: 46″
  • Swing arm stand: Low: 29-1/2″ High: 49-1/2″
  • Optical center line to swing arm bottom: 15″
• Weight
  • Colposcope: 3 lbs
  • Vertical Stand: 25 lbs
  • Swing arm stand: 80 lbs
• Focal length: 300 mm (12”)
• Magnification (relative to a 14” monitor): 4.5x – 30x
• Field of view: 66 mm – 14 mm
• Depth of field: 112 mm – 5 mm
• Lamp type: 21-Watt metal halide arc
• Lamp life: 750 hrs @ 1 hr per start
• Brightness adjustment: Automatic electronic shutter
• Lamp power: 60 V
