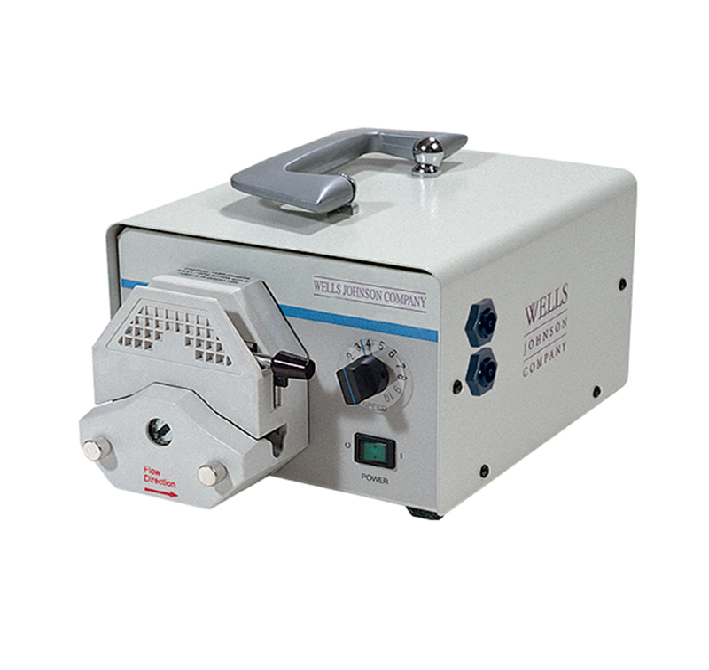

Wells Johnson Infiltration Pump

Wells Johnson Infiltration Pump

The Wells Johnson Infiltration Pump is a premiere high-powered, efficient peristaltic pump for virtually effortless infiltration. This peristaltic pump is used by more physicians than any other on the market today. This infusion pump unit incorporates an enclosed, permanent magnet D.C. motor that has a long brush life, with permanent lubrication and quiet operation. Motor control is via SCR circuitry featuring indirect velocity feedback for good load/line regulation which assures dependable speed or flow control. Power on/off and motor speed adjustment is accomplished with a single-turn potentiometer switch located on the front panel. “Soft-start” and smooth, gradual acceleration to speed setting is provided when power is switched remotely from the unit.

Wells Johnson Infiltration Pump Specifications:

• Power 100 to 130 Vac, 60 Hz
• Drive single direction Motor 0 to 600 rpm
• Maximum Vacuum 24″ HG
• Maximum Head Pressure
  • Continuous 25 psi
  • Intermittent 40 psi
• Peristaltic Pump
• Maximum Flow Rate  0-850 ml/min (with specified tubing)
• Weight  11 lbs
• Dimensions  7” x 11” x 5”

Wells Johnson has been at the forefront of the development and implementation of high quality infiltration equipment since 1983. The Wells Johnson Infiltration Pump is the premiere high-powered, efficient peristaltic pump for virtually effortless infiltration. The pump used by more physicians than any other on the market today.

The past 35 years of their business have been dedicated to the evolution of their aspirators from concept to maintenance-free, high-powered, reliable machines. Wells Johnson cannulas have been refined into superb surgical instruments that are in high demand around the world. The vast selection of their cannulas is a showcase of their talent in the medical instrument field with the possibilities only limited by the creativity of their ever increasing customer base and their ability to custom make each instrument to suit everyone’s needs. Their latest focus has been the development and manufacture of a high volume precision auto-graft system that is complete, integrated, closed, and lets the surgeon control pressure levels and flow rates. The infiltration process is now virtually effortless with their full line of tumescent products.
